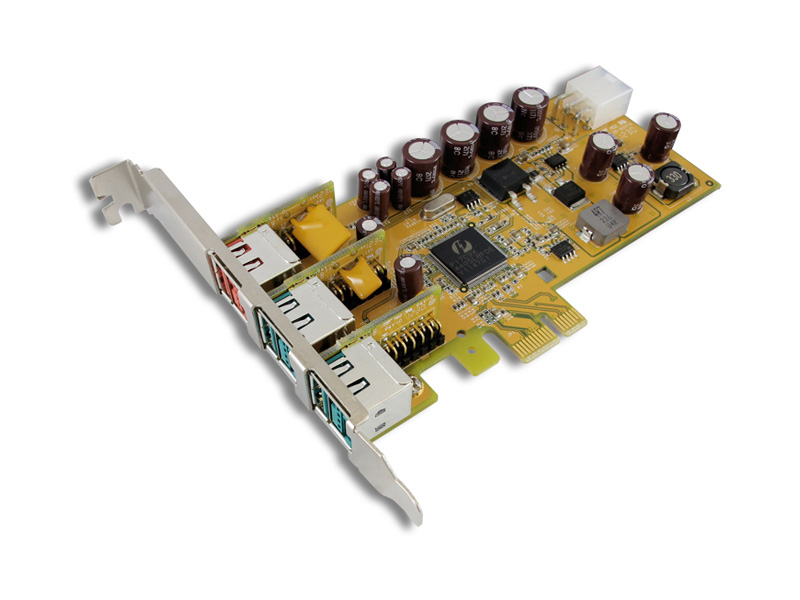

PUB1200X V2.0
1-port 24V & 2-port 12V Powered USB PCI Express Add-On Card
- Compliant with PCI Bus Power Management Interface Specification Revision 1.2
- Compliance with PCI Express Base S pe cification Re version 1.1.
- Compliant with the Universal Serial Bus (USB) Specification Revision 2.0
- High performance USB2.0 PCI Express host controller on board.
- Support 3 external Powered USB ports.
- Powered USB port supports +24 and +12 VDC power output wit h maximum 3A / per port.
- Each Powered USB ports built in over current protection.
- Plug n Play, I/O address and IRQ assigned by operating system.
- Support USB device Hot Swapping and Plug n Play function.
- Certified by RoHS CE, FCC approval.
- Support Linux, Mi crosoft Windows 1 0 (x86/x 64) a nd 11 operation system.
Introduction
USB allows peripheral devices to exchange data with a PC and also to receive power over the USB bus. Unfortunately, the bus supplied power is limit to 2.5 Watts (0.5A @ +5V) per port, sufficient to provide enough power to input devices, web cameras among other low power devices. Other devices like printer, displays, pin pads, external DVD-ROM and hard drives still require an external power supply. Here comes Powered USB, it eliminates the need for additional power supplies. Powered USB provides the necessary power as well as the communication signals over a hot pluggable cable. In addition, the Powered USB solves the physical host side cable locking problem associated with the standard USB connector by providing a host cable locking mechanism.
POS systems become more and more stylish nowadays, with limited space for the terminal and all peripherals inside. Save your valuable space and get rid of the peripherals’ power supplies using the Powered USB PCI Express Add-On card. This Add-On card is the ideal solution for today’s point of service systems.
Specifications
Hardware
| BUS | PCI Express Spec 1.1, Single-Lane (x1) |
| Controller |
PCI Express USB3.0 Host controller, ASM3042
|
| USB Standard | Enhanced Host Controller Interface (EHCI) and Open Host Controller Interface (OHCI) |
| IRQ & IO | Assigned by System |
Serial Communication
| Interface | Universal Serial Bus 2.0 |
| Speed |
High-Speed (HS), Full-Speed(FS) and Low-Speed(LS) Data Transfer rate of 1.5, 12, and 480Mbps |
| No. of Port | 3-port |
| Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge |
| PCB Connector | Powered USB Connector |
Power
| Source | +12VDC / PCIe GFx power connector 2x3 Type |
| Output Capacity |
Standard USB2.0 Port: +5VDC / Maximum 0.5A / each port Powered USB Port: +24VDC / Maximum 3.0A / each port +12VDC / Maximum 3.0A / each port Note: Total power output capacity will be limited by system power supply. |
| Over Current Protection |
Standard USB2.0 Port: +5VDC / Share Maximum 2.0A / 3-port total Powered USB Port: +24VDC / 3.0A@30V PTC fuse / each port +12VDC / 3.0A@16V PTC fuse / each port |
| Power Consumption | 1.1W @ 3.3V (board only without power output to device) |
Driver Support
| Microsoft Client |
Windows 10 (X86/X64) / 11
|
| Microsoft Server | 2012 R2 / 2016 / 2019 (x86/x64) and above |
| Linux | Linux 2.6.and above |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Standards and Certifications
| EMC | CE, FCC, VCCI, BSMI |
| Green | RoHS, WEEE |
Physical Characteristics
| PCB Dimension | 130 x 68 mm |
| Bracket | Full high 120 mm |
| Bracket Space | 1 |
Accessories
Optional Accessories
Support
Download Manual
| Manual | Powered_USB_PCIe_Card_Manual |
|
| Version | Ver 2.0 | |
| Update | 2023-08-23 10:29:17 | |
| Size | 1.8MB |
Download Datasheet
| Datasheet | PUB1200X V2.0 Datasheet EN |
|
