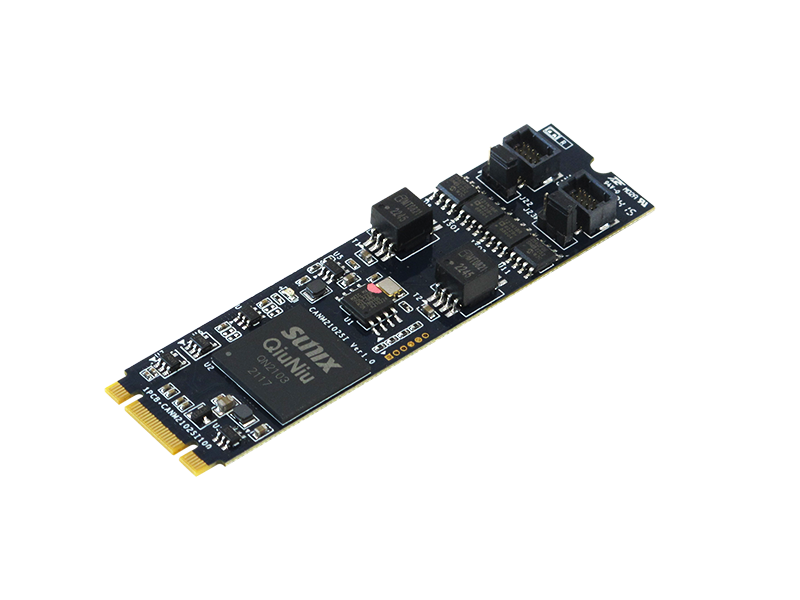

CAN-M2102SI
Industrial M.2 2280 to 2-port CAN FD Card
With Surge and Isolation
Features:
- Suitable for M.2 2280 Key-M or Key-B based on PCI Express communication
- Equipped with high reliable SUNIX CAN FD controller
- Complies with CAN specifications 2.0 and FD
- CAN FD bit rates for the data field up to 8 Mbit/s
- Isolation on the each CAN channel up to 500V
- Surge protection up to 1KV
- Plug-n-Play, I/O address and IRQ assigned by system
- Support Windows and Linux SocketCAN drivers
Introduction
SUNIX CAN-M2102SI, industrial M.2 to 2-port high speed CAN FD communication card, is designed for Edge Computer that enables CAN FD and CAN bus data communication capability for electric vehicle industry application. This board not only built-in SUNIX Digital-I/O controller but also built with many of SUNIX advanced features and technologies. In addition, SUNIX provides Windows and SocketCAN drivers, allowing users to use this card on Windows and Linux operating systems. SUNIX CAN-M2102SI card enriches CAN 2.0/ CAN FD interface expandable capacity; it is the best CAN bus communication solution for electric vehicle and AVG/AMR, IVI (In-Vehicle Infotainment) applications.
Specifications
Board Communication
| Interface | M.2 PCIe |
| Controller | SUNIX CAN FD Controller |
| BUS | PCI Express 2.0 x 1(single lane) M.2 2280 Type, 59-pin Key B+M Male |
| IRQ & IO | Assigned by System |
| ESD Protection |
±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge Isolation on each channel 500V Surge 1KV |
CAN Communication
| Type | CAN 2.0 / CAN FD |
| Channel | 2-channel |
| Arbitration bit rate | 1 Mbit/s |
| Data bitrate | 8 Mbit/s |
| Isolation | 500 VDC |
| Pin Define | CAN H, CAN L, GND |
| Termination | 120Ω configured by jumper setting |
| PCB Connector | 2 pcs x WAFER 2x5P pitch 1.0mm (180°) |
Software Support
| Microsoft |
Windows 10 (X86/X64) / 11 |
|
Linux SocketCAN |
Linux Kernel 5.x / 6.x |
Regulatory Approvals
| Hardware |
CE / FCC / VCCI / BSMI |
Declaration
| Green Product |
RoHS, WEEE |
Environment
| Operation Temperature |
-20 to 70°C (-4 to 158°F) |
|
Operation Humidity |
5 to 95% (non-condensing) |
|
Storage Temperature |
-20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension |
22 x 80 mm |
Accessories
Including Accessories
D-Sub 9-pin male with nuts on cable
- Part No. 1WDB-09M03010W100A
- 30cm
- 2 pcs
Support
Download Manual
| Manual | SUNCAN FD Series User Manual |
|
| Version | Ver. 1.2 | |
| Update | 2024-10-08 17:19:33 | |
| Size | 6.3MB |
Download Datasheet
| Datasheet | CAN-M2102SI Datasheet EN |
|
Download Guide
| Guide | Industrial CANFD Control Card QIG (SUNCAN) |
|
Download Driver
| Driver | Windows SDC IO Manager x64 V1.0.3.0_20241119 | |
| Version | V1.0.3.0 | |
| Update | 2024-11-19 13:40:37 | |
| Size | 41.9MB | |
| OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 64 bit
Windows 10 21H2 (21H2) 64 bit
Windows 10 21H1 (21H1) 64 bit
Windows 10 20H2 (20H2) 64 bit
Windows 10 20H1 (2004) 64 bit
Windows Server 2022 64bit
|
| Driver | Windows SDC IO Manager x86 V1.0.3.0_20241119 | |
| Version | V1.0.3.0 | |
| Update | 2024-11-20 09:52:30 | |
| Size | 38.8MB | |
| OS |
Windows 10 22H2 (22H2) 32 bit
Windows 10 21H2 (21H2) 32 bit
Windows 10 21H1 (21H1) 32 bit
Windows 10 20H2 (20H2) 32 bit
Windows 10 20H1 (2004) 32 bit
|
| API | Windows SDC API V1.0.3.0_20241119 | |
| Version | 1.0.3.0 | |
| Update | 2024-11-19 14:07:41 | |
| Size | 28.9MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
|
| Driver | Linux SDC Expansion Board Driver V2.1.0.0_20241120 | |
| Version | V2.1.0.0 | |
| Update | 2024-11-20 15:59:39 | |
| Size | 11.2MB | |
| OS |
Linux Kernel 6.x
Linux Kernel 5.x
Linux Kernel 4.11 above
|
