SDC0880I

Industrial I/O Control PCIe Card
8+8-ch Isolated Digital I/O
Board Level:
  • Designed to meet PCI Express Base Specification Revision 2.1.
  • With high reliable SUNIX QiuNiu UART Digital-I/O controller.
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Ultra low power consumption (<1.5W) design for green environment and industrial application.
  • High quality electronic components, low impedance and high stability ensure product quality and reliability.
  • Support Microsoft Windows 10 with C and C# programming language sample code.
  • Providing a customizable API platform to meet IoT application needs.
  • Certified by CE, FCC, RoHS, and Microsoft approvals.
  • Support both standard and Low profile bracket design to meet various PC chassis.

Digital I/O Communication:
  • Expands isolated eight (8) digital input channels with features for all channels.
    • Support both NPN & PNP devices
    • Support both dry and wet contact connections
    • With digital filter for noise reduction
    • Built-in 32-bit counter for all digital in channels
  • Expands isolated eight (8) NPN type digital output channels with initial value (Booting & Restart) protection.
  • Each channel built-in 2.5KV isolation protection for signal and power, allowing the input signals to be completely floated so as to prevent ground loops.

Introduction

SUNIX SDC0880I, industrial isolated digital I/O PCI-Express add-on card, is designed for PC-based IoT Gateway or desktop that enables data acquisition and I/O controls in industrial automation. This board built-in SUNIX Digital-I/O controller, QiuNiu, and also built with many of SUNIX advanced features and technologies. In addition, SUNIX provides API software and SDK library, allowing users to program under Windows 10 operating systems. The software package includes a dynamic library.dll, C and C# programming language sample code, making it easier to develop application software. SUNIX SDC0880I board enriches digital I/O expandable capacity with cost-efficient design; it is the best digital I/O control solution for lite-industrial applications.

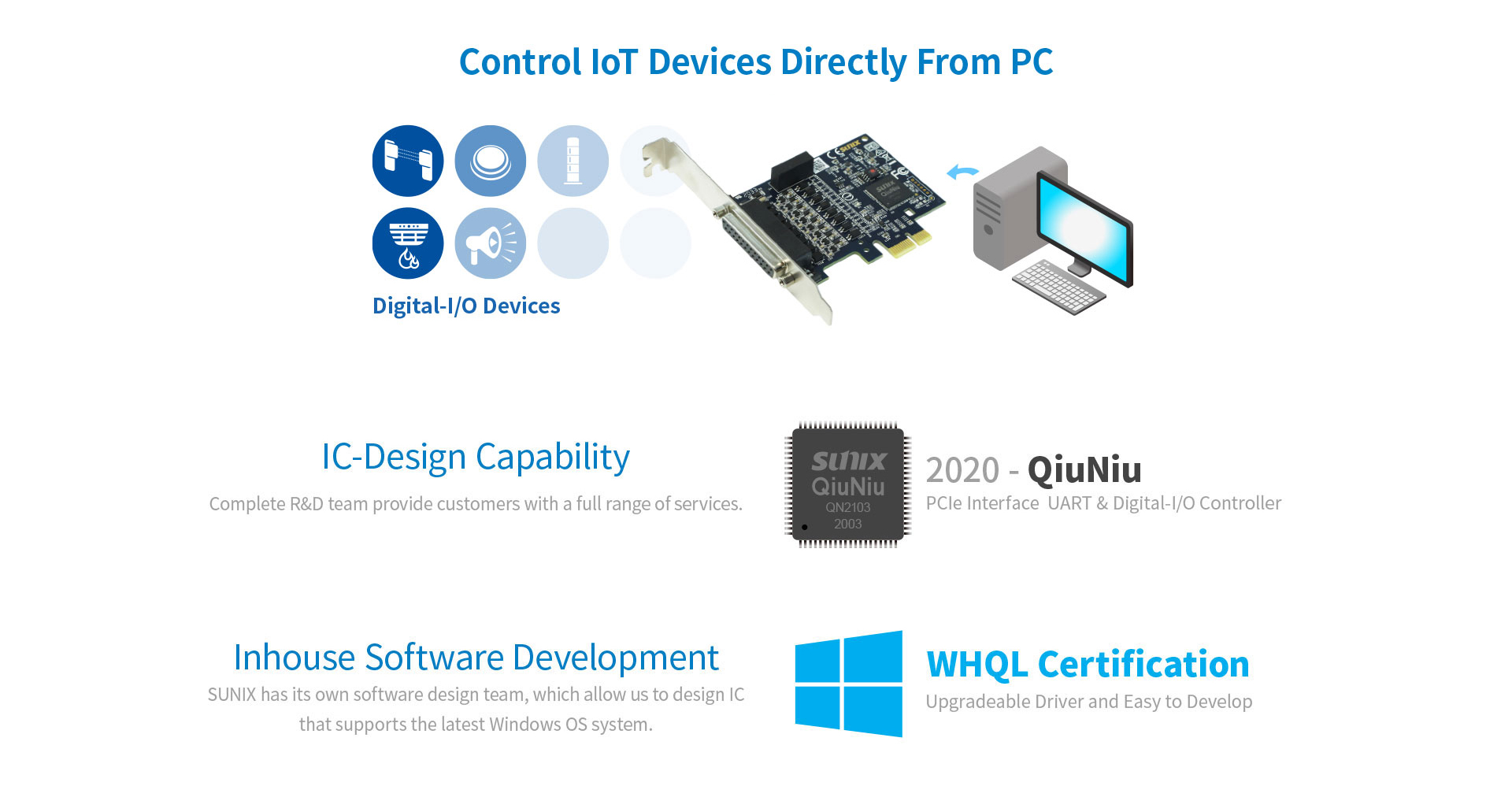

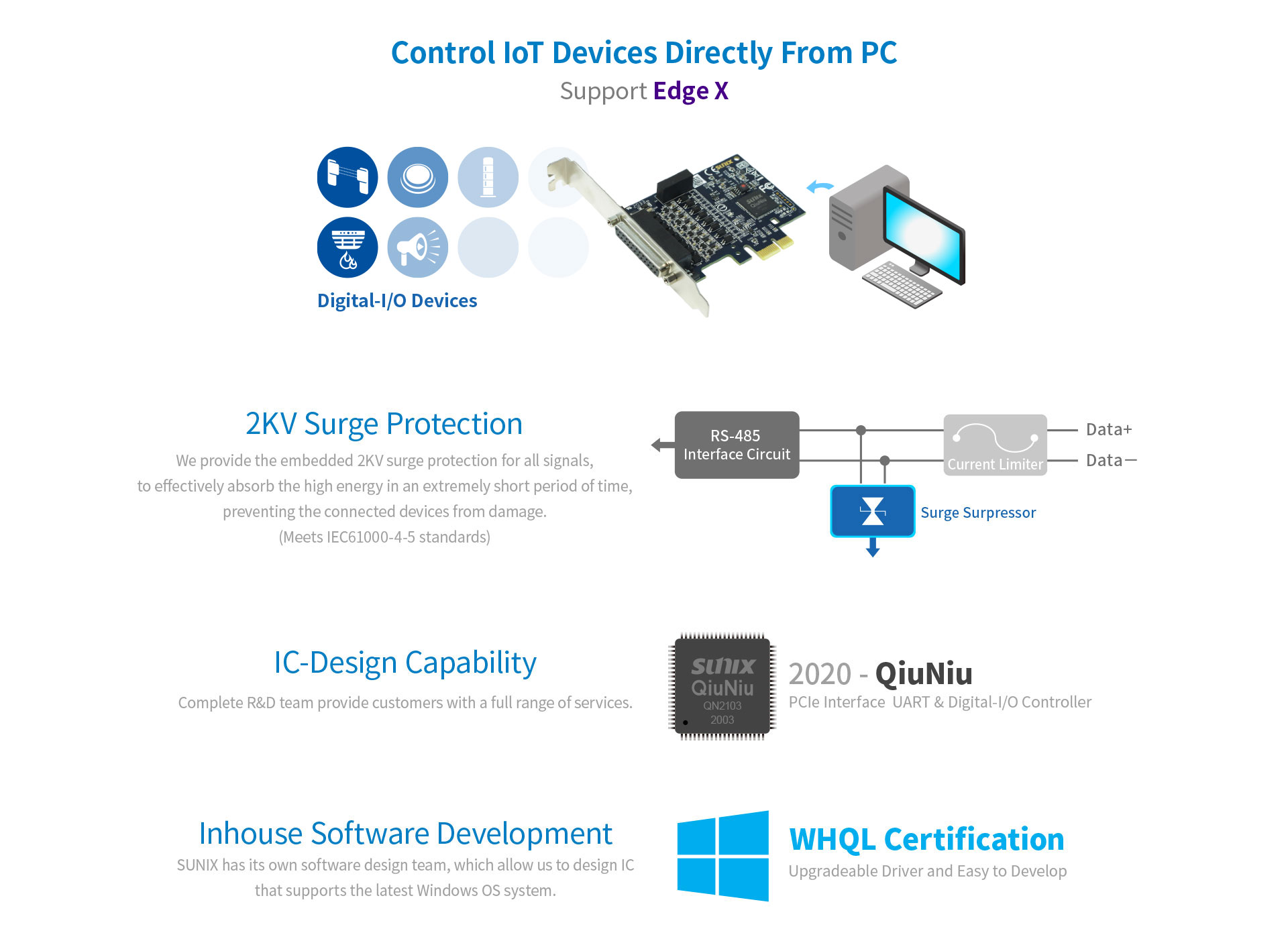

Features


Specifications

Board Communication

Interface PCI Express
Controller SUNIX QiuNiu UART Digital-I/O Controller
BUS PCI Express Gen1 x 1 (single lane)
IRQ & IO Assigned by System
ESD Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge

Digital Input Communication

Type NPN & PNP
Channel 8-channel
Dry Contact Logic Level 0: Open;
Logic Level 1: Close to GND
Wet Contact Logic Level 0: 0 to 3VDC;
Logic Level 1: 10 to 50VDC
Input Resistance 10KΩ
Isolation 2500 VDC
Frequency Input Range 2KHz with Isolation
Pin Define DI1~DI8, COM, GND
Counter 32-bit counter for all channel
Interrupt Mode Event trigger (Rising Edge, Falling Edge, Both modes) & polling for all channels
Noise Reduction Digital Filter
PCB Connector DB25 Female Connector

Digital Output Communication

Type NPN
Channel 8-channel
Voltage Range 3.5 to 40VDC
Current 500mA per Channel
Isolation 2500 VDC
Pin Define DO1~DO8, PWR, GND
Initial Protection Initial Value Setup (Booting & Restart protection)
PCB Connector DB25 Female Connector

Software Support

Microsoft

Windows 10 (X86/X64) / 11

SDK

Library: DLL for Windows supporting C, C++, C# languages.
Support C, C# sample code available

Regulatory Approvals

Hardware

CE / FCC / VCCI / BSMI

Declaration

Green Product

RoHS, WEEE

Environment

Operation Temperature

-20 to 70°C (-4 to 158°F)

Operation Humidity 5 to 95% (non-condensing)

Storage Temperature

-20 to 70°C (-4 to 158°F)

Dimension

PCB Dimension

84.44 x 68.5 mm

Bracket Standard 121 mm / Low Profile 79.2mm

Bracket Space

1



Accessories

Including Accessories

DB25 Male to Female Connection Cable
  • 100 cm
  • 1 pcs.
Brackets Standard & Low Profile
  • Standard 121 mm & Low Profile 79.2mm
  • Bracket Space: 1

Support

Download Manual

Manual SDC Series User Manual
Version Ver 1.3
Update 2022-08-18 19:50:26
Size 1.9MB

Download Datasheet

Datasheet SDC0880I Datasheet EN

Download Guide

Guide Industrial Digital I/O Card Quick Installation Guide

Download Driver

Driver Windows SDC IO Manager x64 V1.0.4.0_20241226
Version V1.0.4.0
Update 2024-12-30 15:21:12
Size 42MB
OS
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 64 bit
Windows 10 21H2 (21H2) 64 bit
Windows 10 21H1 (21H1) 64 bit
Windows 10 20H2 (20H2) 64 bit
Windows 10 20H1 (2004) 64 bit
Windows Server 2022 64bit
Driver Windows SDC IO Manager x86 V1.0.4.0_20241226
Version V1.0.4.0
Update 2024-12-30 15:19:34
Size 38.9MB
OS
Windows 10 22H2 (22H2) 32 bit
Windows 10 21H2 (21H2) 32 bit
Windows 10 21H1 (21H1) 32 bit
Windows 10 20H2 (20H2) 32 bit
Windows 10 20H1 (2004) 32 bit
API Windows SDC API V1.0.3.0_20250205
Version 1.0.3.0
Update 2025-02-05 10:22:00
Size 30.2MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Driver Linux SDC Expansion Board Driver V2.1.0.0_20250120
Version V2.1.0.0
Update 2025-01-23 14:28:13
Size 11.3MB
OS
Linux Kernel 6.x
Linux Kernel 5.x
Linux Kernel 4.11 above
