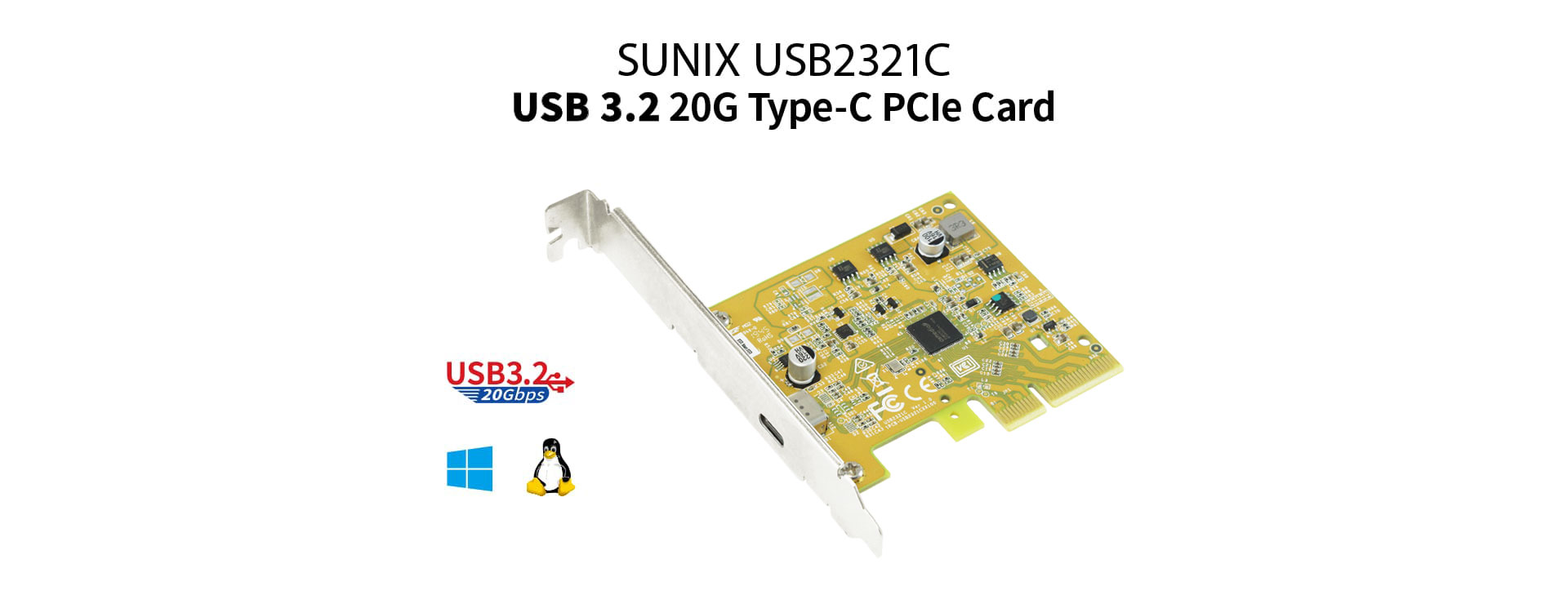

USB2321C

USB 3.2 Enhanced SuperSpeed Gen2x2 1 port PCI Express Host Card with Type-C Receptacle
  • PCI Express Base Specification Revision 3.0, 4 Lane.
  • Compliant with Universal Serial Bus 3.2 specification.
  • Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
  • Supports simultaneous operation of multiple USB 3.2, 3.1, 3.0, USB 2.0 and USB 1.1 devices

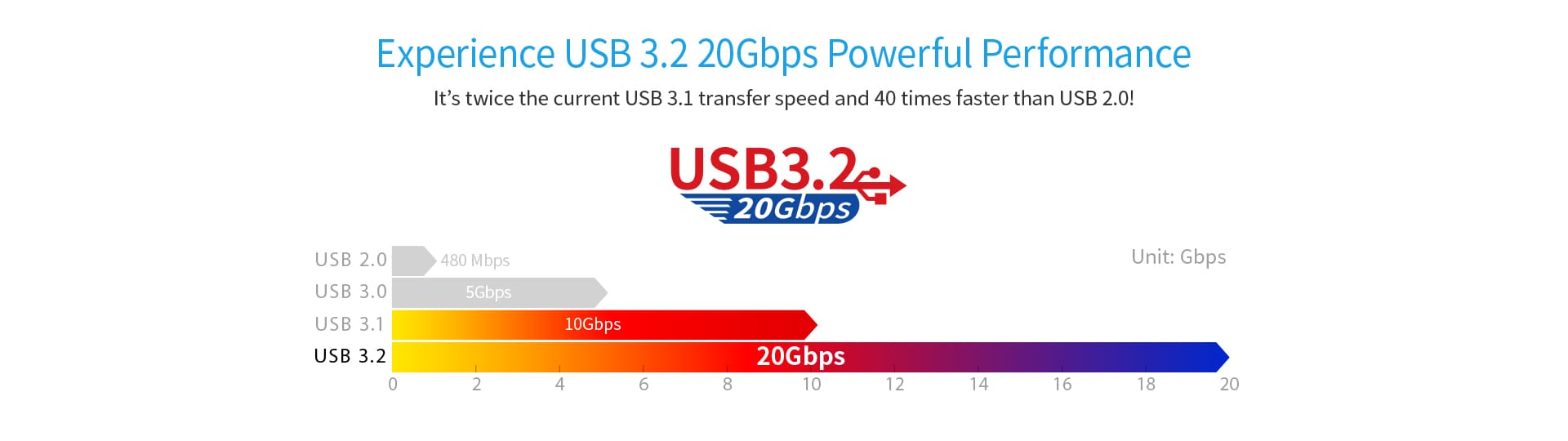

  • Supports USB data transfer rate of 20G/10G/5G/480/12/1.5 Mbps.
  • Expands single external USB 3.2(Gen2x2) Super-Speed plus Type-C port (DFP) on the system.
  • USB port supplies maximum +5VDC / 1.5A power output to USB device.
  • Built-in over current protection on each USB port.
  • Hot-swapping feature allows connect/disconnect device without powering down the system.
  • Driver supports for Microsoft Windows 8.x and 10 operation systems.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
  • Green Product meets RoHS standard and Low Power consumption.

Introduction

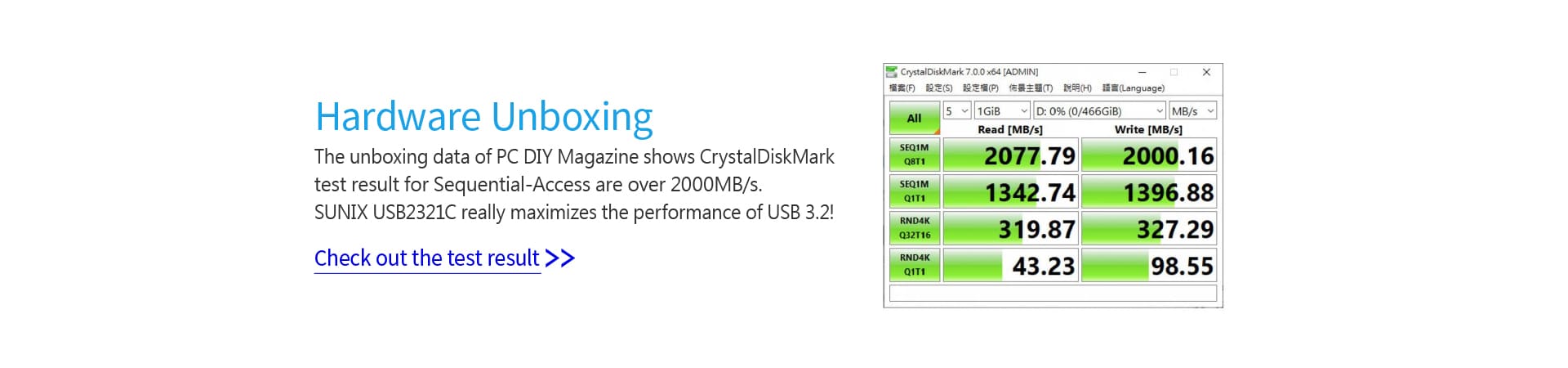

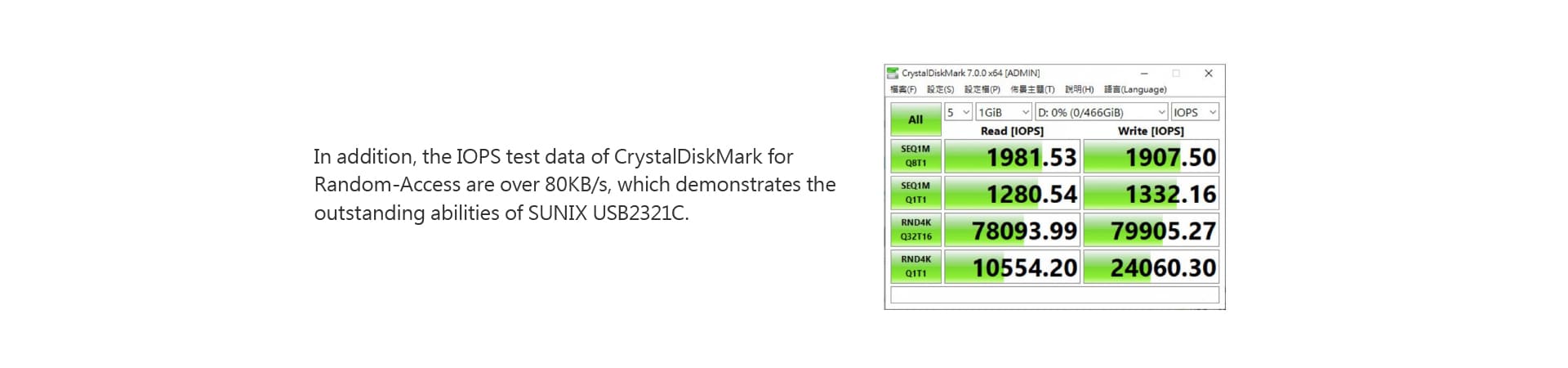

SUNIX USB2321C is a 1 port Super-Speed USB 3.2 Gen 2x2 PCI Express card, and it’s compliant with the PCI Express Generation 3 specification for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 20 Gbps for data transfer when connecting to USB 3.2 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.2 performance is 2 times faster than USB 3.2 Gen 2x1 (USB 3.1 Gen2) and 4 times faster than USB 3.2 Gen 1x1 (USB 3.0) connectivity.

SUNIX USB2321C allowing for up to two lanes of 10Gbps operation to realize a 20Gbps data transfer rate for USB C connectivity. With USB Type-C Receptacle, SUNIX USB2321C sports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. SUNIX USB2312C supports 5VDC@1.5A power output to USB device with over current protection on each USB port. This card is an ideal choice for external storage devices, digital cameras, webcam, video devices, and all other USB electronic devices.

Features








Specifications

Hardware

BUS PCI Express Spec 3.0, 4 Lane

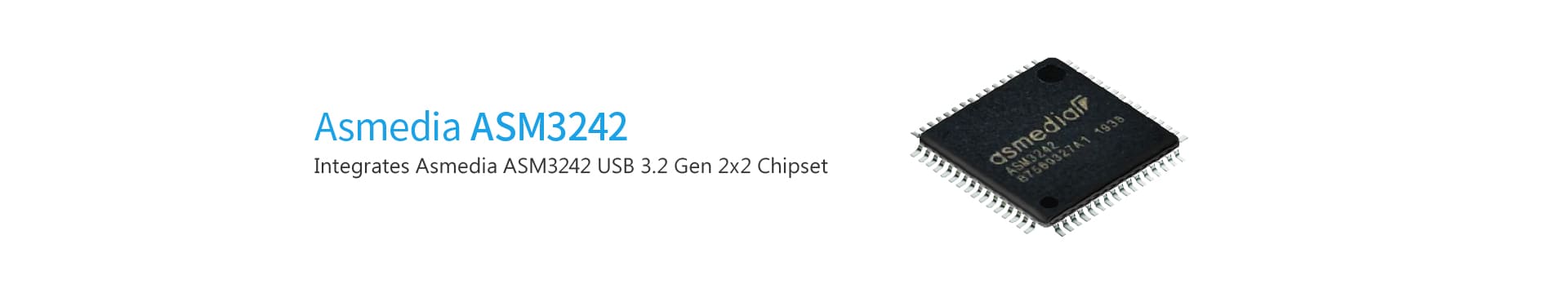

Controller PCI Express USB 3.2 Host controller, ASM3242
USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1
IRQ & IO Assigned by System

USB Communication

Interface Universal Serial Bus 3.2 / 3.1 / 3.0 / 2.0 / 1.1
Speed Super Speed+ (Gen2x2=20Gpbs), SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)
No. of Port 1-port

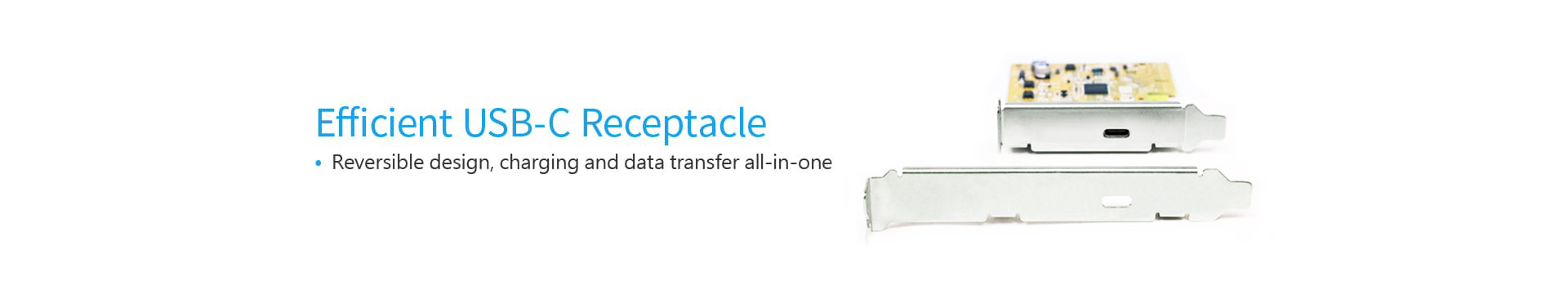

PCB Connector USB 3.2 USB Type-C port (Downstream Facing Port)
Protection ±8KV IEC61000-4-2 Air Gap Discharge
±4KV IEC61000-4-2 Contact Discharge

Power

Source PCI Express bus power
Output Capacity USB Type-C Port: +5VDC / 1.5A
Note:
* USB Power Delivery Protocol does NOT support.
* Built-in over current protection on each USB port.
* Maximum total power output depends on the capacity of user’s power supply unit
Power Consumption 1.1 W @ 3.3V (board only without power output to USB device)

Driver Support

Windows Windows 8.x / 10 (X86/X64) (Windows in-box driver)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)

Standards and Certifications

EMC CE, FCC, VCCI, BSMI
Green RoHS, CRoHS, WEEE

Physical Characteristics

PCB 尺寸 79.3 x 68.5 mm
Bracket Standard 120 mm (Low Profile 80mm)
Bracket Space 1

Support

Download Datasheet

Datasheet USB2321C Datasheet

Download Guide

Guide USB2321C Quick Installation Guide
