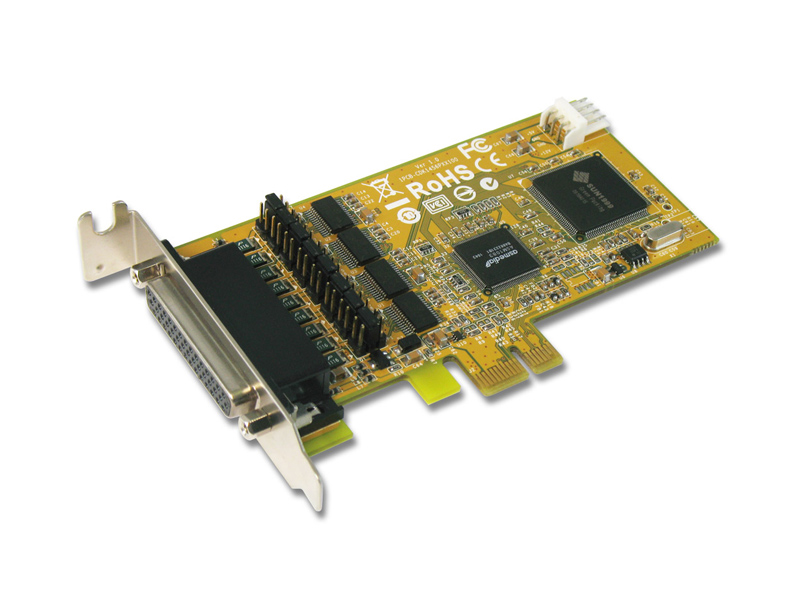

CDK1456PL
4-port RS-232 with Power Output & Cash Drawer interface & DC Jack Low Profile PCI Express Board
- Expands four independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- Expands single 6-pin RJ11/12 Type Cash Drawer interface to drive +12 / 24VDC Cash Drawer.
- Expands single +12VDC Power Jack to connect POS peripheral, such as touch display.
- High speed SUN1999 16C950 compatible UART controller on-board.
- Full single-lane (or x1) PCI Express throughput.
- Designed to meet PCI Express Base Specification Revision 1.1
- Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 2KV ESD protection for all serial signals.
- Low profile bracket design idea for slim or portable PC.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- SUNIX Windows based APIs for user easily implement Cash Drawer operation.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows and Linux.
Introduction
SUNIX CDK1456PL, PCI Express serial communication board, allows users to expand four RS-232 DB9M COM ports, one Cash Drawer 6-pin RJ-11/12 socket, and one +12VDC power jack on PC-based system. The board is compatible with PCI Express Base Specification Revision 1.1, allowing it to be installed in virtually any PC-based systems. This card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification.
CDK1456PL supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply. For the cash drawer interface, user can operate both +12 and +24 Voltage cash drawers by implemented SUNIX Windows based API (Application Programming Interface). Both RS-232 and Cash Drawer interface are designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial retail automation applications.
Features
Specifications
Serial Communication
| Interface | RS-232 |
| Controller | SUNIX SUN1999 (16C950 UART Compatible) |
| BUS | PCI Express one lane (x1) |
| No. of Port | 4-port |
| IRQ & IO | Assigned by System |
| FIFO | 128byte Hardware |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, GND, 5V/12V/ DCD, +5V/12V/RI |
| Baud rate | 50bps ~115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| PCB Connector | DB44 Female |
| Cable Connector | DB9 Male |
Cash Drawer Communication
| Interface | RJ11/12 (6-pin), EPSON Printer Compatible |
| Output | +12VDC |
Power Output
| DC Power Jack Output | DC Jack +12VDC / 3A (depends on system power supply ability) |
| COM port Output | +5 or 12VDC / 1A (depends on system power supply ability) |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 / 11 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals
| Hardware |
CE, FCC, VCCI, BSMI |
| Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 / 11 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Physical Characteristics
| PCB Dimension | 120 x 69 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
Accessories
Including Accessories
DB44 Male to 4-port DB9 Male, RJ11 & DC Jack Cable
- 40cm
- Part Number:1WDB-44M04009C3T10
- 1 pcs.
Support
Download Datasheet
| Datasheet | CDK1456PL Datasheet |
|
Download Driver
| Driver | SUN1999Driver V10.2.8.0 (WHQL) | |
| Version | 10.2.8.0 | |
| Update | 2024-10-18 15:46:26 | |
| Size | 10.3MB | |
| OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 11 IoT Enterprise 24H2
Windows 11 IoT Enterprise LTSC 2024
Windows 11 Enterprise LTSC 2024
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
| Driver | SUN1999Driver V9.2.2.0(WHQL) | |
| Version | 9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
| Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
| Version | 8.2.0.0 | |
| Update | 2023-01-12 13:34:21 | |
| Size | 4.4MB | |
| OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
| Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
| Version | 8.1.5.0 | |
| Update | 2023-01-11 17:08:11 | |
| Size | 4.5MB | |
| OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
| Driver | WinCE 6.0 Driver V1.2.0.0 | |
| Version | 1.2.0.0 | |
| Update | 2019-07-08 17:59:12 | |
| Size | 301.2KB | |
| OS |
Windows CE 6.0
|
| Driver | WinCE 5.0 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:02 | |
| Size | 280KB | |
| OS |
Windows CE 5.0
|
| Driver | WinCE 4.2 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:47 | |
| Size | 235.6KB | |
| OS |
Windows CE 4.2
|
| Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
| Version | 1.0 | |
| Update | 2022-05-31 17:59:20 | |
| Size | 1.2MB | |
| OS |
Linux Kernel 5.4 above
|
| Driver | snx_V2.1.0.0 | |
| Version | V2.1.0.0 | |
| Update | 2024-10-29 15:49:56 | |
| Size | 704.9KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
| API | Hardware Library for Windows | |
| Version | 20110623 | |
| Update | 2022-03-25 11:03:58 | |
| Size | 3.7MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
|
| API | Hardware Library for Linux (snx module) | |
| Version | 1.3.1.0 | |
| Update | 2024-10-16 10:36:59 | |
| Size | 750.9KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
| Driver | SUNDOS1.00.00.006 | |
| Version | 1.00.00.006 | |
| Update | 2014-08-19 10:36:25 | |
| Size | 21KB | |
| OS |
DOS
|
