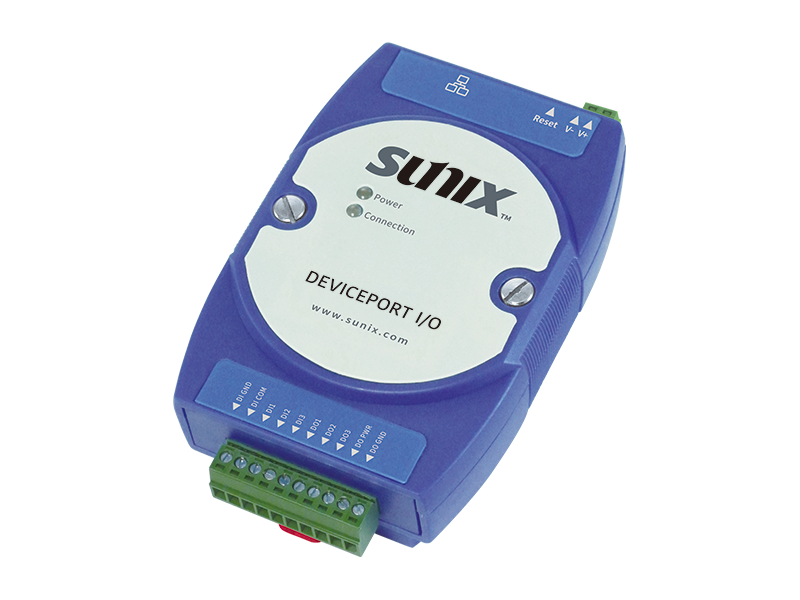

EZR5003
3-ch Digital Input / 3-ch Digital Output Ethernet IO Controller
- 3-ch DI, 3-ch DO, Ethernet-based smart I/O
- Built-in with SUNIX High-Performance Ethernet-IO controller.
- Built-in dual 10/100 Ethernet ports for Ethernet cascading capability
- IP setting not required, enabling convenient and quick deployment configuration
- Supports daisy chain network topology for flexible and quick I/O expansion
- Automatic device enumeration mechanism facilitates terminal device networking
- Hardware may be wall or rail (DIN) mounted
Introduction
SUNIX EZR5003 utilizes SUNIX EAZInet networking technology to quickly expand three digital input and three digital output signals via Ethernet, allowing users to conveniently implement automation, swiftly incorporate the Internet of Things into their businesses, and raise their competitiveness.
SUNIX EZR5003 does not require IP setting and supports full network topology, which substantially lightens the burden of network planning and management, shortens the hardware deployment process, and enables subsequent expansions to be executed more flexibly.
SUNIX EZR5003 is capable of automatic device enumeration, which allows the console terminal to quickly search for terminal devices, thus enabling plug-and-play functionality. This greatly improves the convenience of system development for users.
Specifications
Digital Input
| Channels | 3 channels | ||
| Dry Contact |
Logic Level 0: Open Logic Level 1: Close to GND |
||
| Wet Contact |
Logic Level 0: 0 to 3V Logic Level 1: 10 to 50V |
||
| Input Resistance | 10㏀ | ||
| Isolation | 1k VDC | ||
| Over-Voltage Protection | 70VDC | ||
Digital Output
| Channels | 3 channels | ||
| Output Type | NPN | ||
| Output Voltage Range | 3.5-30V | ||
| Normal Output Current | 500mA per Channel | ||
| Isolation | 1k VDC | ||
| Startup Value Setting | Yes | ||
| Communication Safety Value Setting | Yes | ||
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 2 PIN Terminal Block |
LAN
| Ethernet | 2-port 10/100 Mbps RJ45 ports |
| Protection | 1.5 KV magnetic isolation |
| Protocols | SUNIX EAZInet |
Physical Characteristics
| Dimensions | 72.1 x 108 x 33.7 mm (2.83 x 4.25 x 1.32 in) |
| Weight | 118 g |
| Mounting | DIN rail or wall |
Environmental Limits
| Operation Temperature | -25 to 70°C (-13 to 158°F) |
| Operation Humidity | 5 to 95% RH(non-condensing) |
| Storage Temperature | -30 to 75°C (-22 to 167°F) |
Standards and Certifications
| EMC | EN 55032, EN 55035 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 |
| ESD | Contact: 4 kV; Air: 8 kV |
Support
Download Manual
| Manual | DevicePort I/O EZR500X Quick Installation Guide |
|
| Version | Ver. 1.0 | |
| Update | 2019-11-15 16:41:28 | |
| Size | 1.4MB |
Download Datasheet
| Datasheet | EZR5003 Datasheet |
|
Download Driver
| Driver | DevicePortAdvanced V4.0.6.0_20220601 | |
| Version | Ver 4.0.6.0 | |
| Update | 2022-06-06 16:12:01 | |
| Size | 5.5MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
|
| API | EAZINET API V1.0.5.0 | |
| Version | V1.0.5.0 | |
| Update | 2022-04-15 17:22:45 | |
| Size | 5.4MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
|
