DB9FTOTB50410

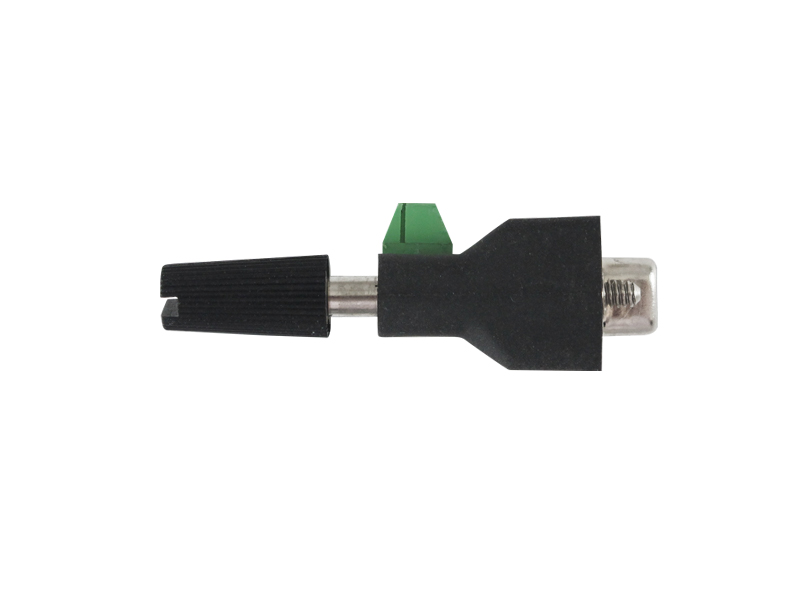

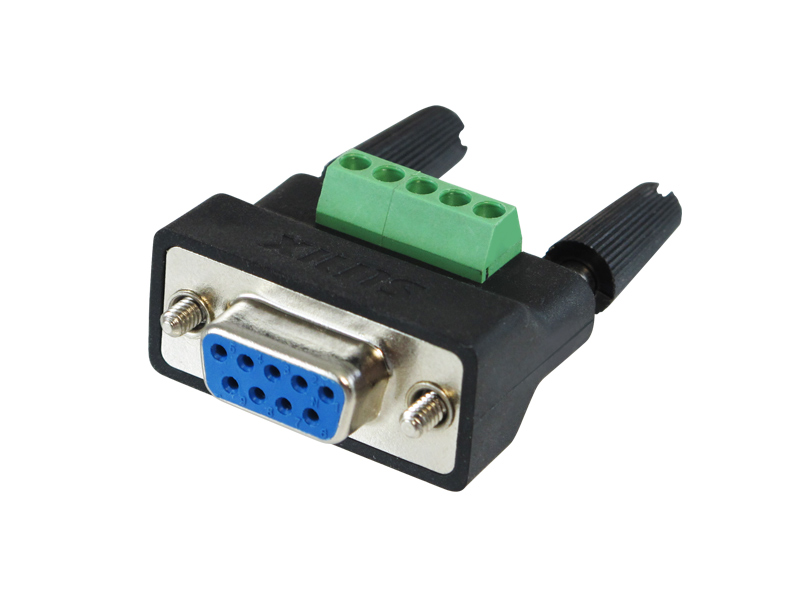

DB9 Female to 5-pin Terminal Block Adapter
  • Converts a  DB9 Female port to a 5-pin Terminal Block.
  • Supports SUNIX all RS-422/485 product lines.
  • Supports four wire RS422, RS485, and two wire RS485 modes.
  • Certified byCE, FCC, VCCI, BSMI and RoHS approval.

Introduction

SUNIX DB9 Female to Terminal Block adapter can be used with SUNIX all RS-422/485 product lines, including PCI/PCIe Add-on card, Industrial DeviceServer, or DevicePort. It’s convenient for user for RS-422 and RS-485 cable wiring with reliable locking design on standard DB9 connector.

Features

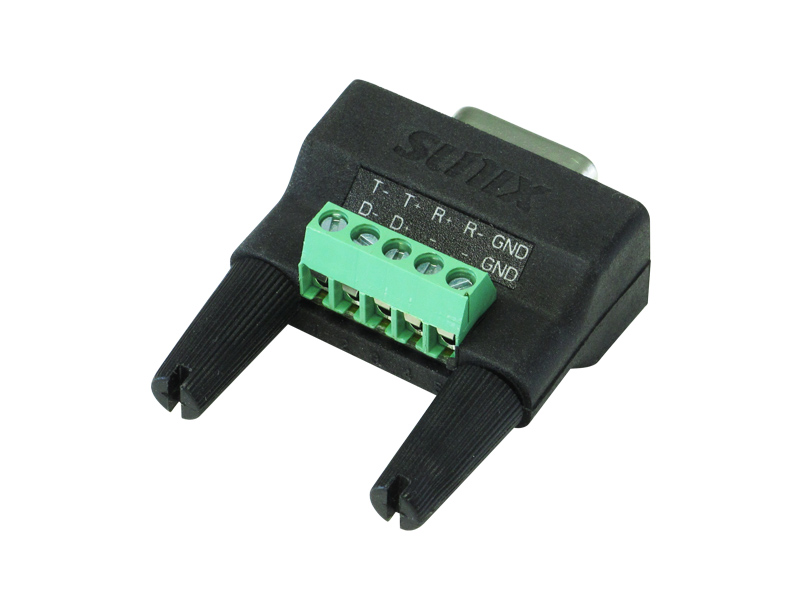

Pin Assignment
DB9FTOTB50410 DB9 Female to 5-pin Terminal Block Adapter

Specifications

Model DB9FTOTB50410
Description DB9 Female to 5-pin Terminal Block Adapter

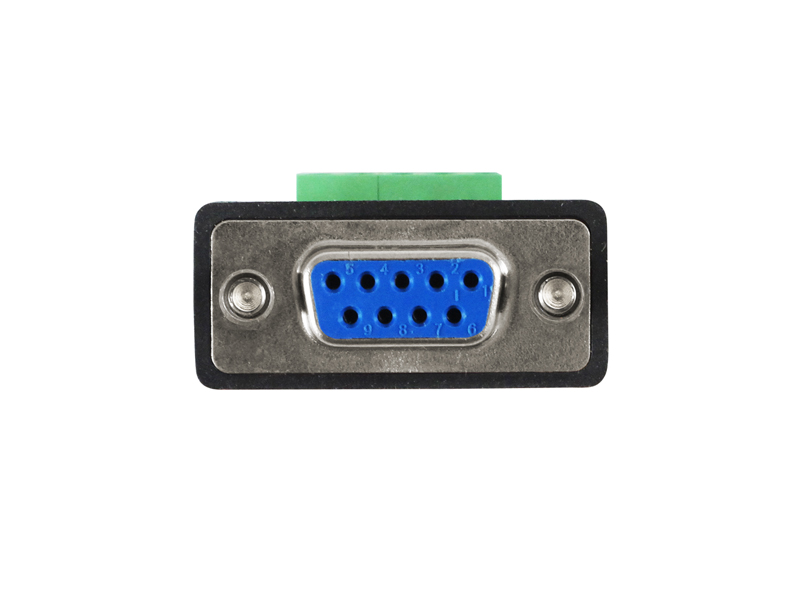

Input Interface DB9 Female

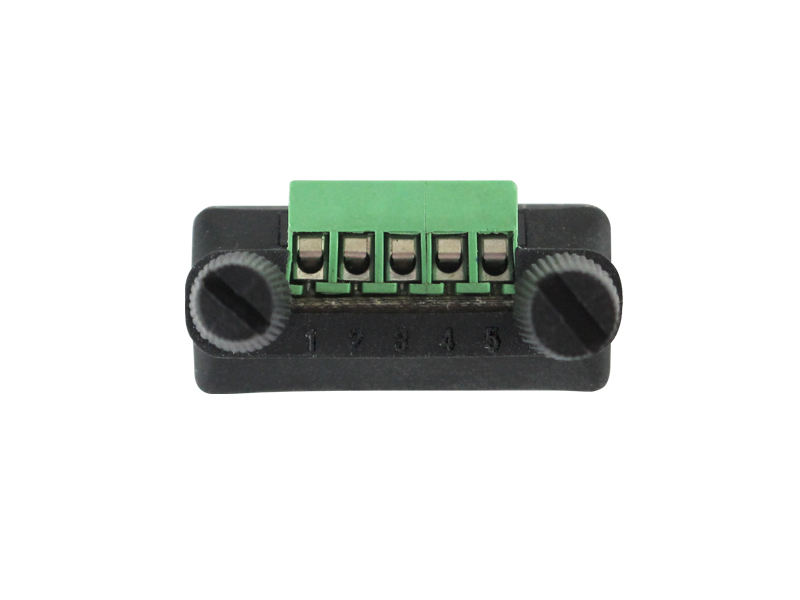

Output Interface 5-pin Terminal Block
Housing TPE (Plastic)
Driver Support Driver Free

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows

Environment

Operation Temperature -10 to 70°C (14 to 160°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

Dimension 43.8(L) x 33.5(W) x 15.0(H) mm
Weight 20g (0.7oz)

Support

Download Datasheet

Datasheet DB9FTOTB50410 Datasheet
