I2V67C0

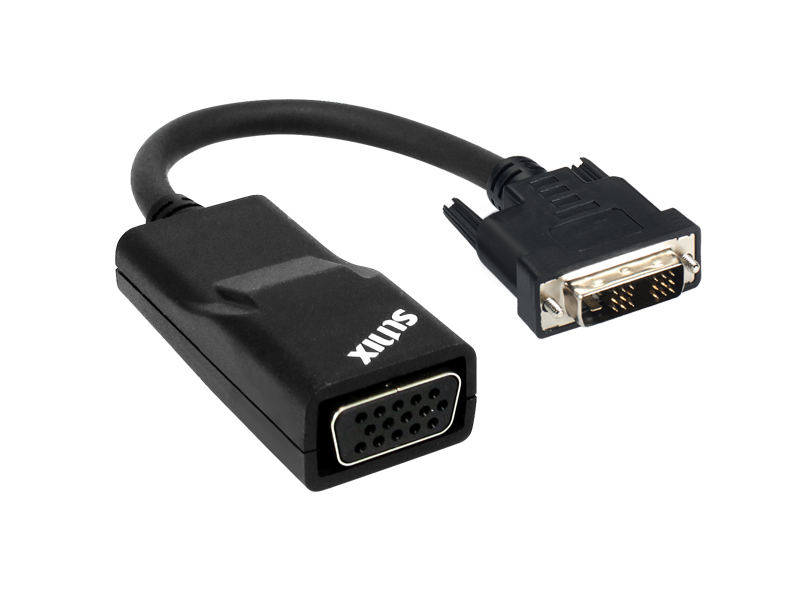

DVI-D to VGA Adapter
- Connect your standard VGA monitor or projector to a DVI equipped computer.
- Integrated chip to provide an active digital to analog conversion.
- VGA output is compliant with VESA VSIS version 1, Rev.2 specification.
- Output resolutions up to 1920x1200 (WUXGA), HDTV resolutions up to 1080p.
- High quality, low power consumption design for long term durability and a minimal footprint.
- Easy plug and play allow seamless display of your laptop and tablet content to your display.
- Gold-plated connectors resist corrosion, provide rigidity, and improve the signal performance.
- Compact design with no need for an external power ensures the best portable solution.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
Introduction
SUNIX I2V67C0 DVI to VGA adapter offers a compact and portable solution for connecting a High-Definition VGA display. It allows user to connect a DVI output from your laptop, Ultrabook, or desktop computer onto a VGA monitor or projector, saving the cost of upgrading to a DVI compatible display. With no need for an external power source, it supports PC resolutions of up to 1920x1200 and HDTV resolutions up to 1080p. This high-resolution dongle offers plug and play functionality to provide an active digital to analog conversion without software or drivers.
Intended for outputting user generated content such as presentations, and work documents, the DVI to VGA adapter can also work to increase your productivity by extending your computer's desktop onto to a secondary monitor, doubling available workspace.
Intended for outputting user generated content such as presentations, and work documents, the DVI to VGA adapter can also work to increase your productivity by extending your computer's desktop onto to a secondary monitor, doubling available workspace.
Specifications
| Model | I2V67C0 | ||||||||||||||||||||||||||||||||||||||||||
| Description | DVI to VGA Adapter | ||||||||||||||||||||||||||||||||||||||||||
| Input Interface | DVI-D Male with cable | ||||||||||||||||||||||||||||||||||||||||||
| Output Interface |
VGA RGB
VGA D-Sub 15-pin Female
|
||||||||||||||||||||||||||||||||||||||||||
| Power | 500mW @ 5VDC | ||||||||||||||||||||||||||||||||||||||||||
| Display Resolution |
|
||||||||||||||||||||||||||||||||||||||||||
| Audio | Not Support | ||||||||||||||||||||||||||||||||||||||||||
| Housing | ABS(Plastic) | ||||||||||||||||||||||||||||||||||||||||||
Driver Support |
Driver free under Apple MAC, Google Chrome, and Microsoft Windows | ||||||||||||||||||||||||||||||||||||||||||
Environment |
Operation temp. 0 °C ～ 40 °C (32-140°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
||||||||||||||||||||||||||||||||||||||||||
Dimension |
Chassis: 46L x 22W x 13.2H mm Cable length: 80mm |
||||||||||||||||||||||||||||||||||||||||||
| Weight | 52g (1.6oz) | ||||||||||||||||||||||||||||||||||||||||||
Regulatory Approvals |
CE, FCC, VCCI, BSMI | ||||||||||||||||||||||||||||||||||||||||||
| Green Environment | RoHS, CRoHS, WEEE |
Support
Download Datasheet
| Datasheet | I2V67C0 Datasheet |
|
Download Driver
| Driver | Driver Free |
