H2V97C0

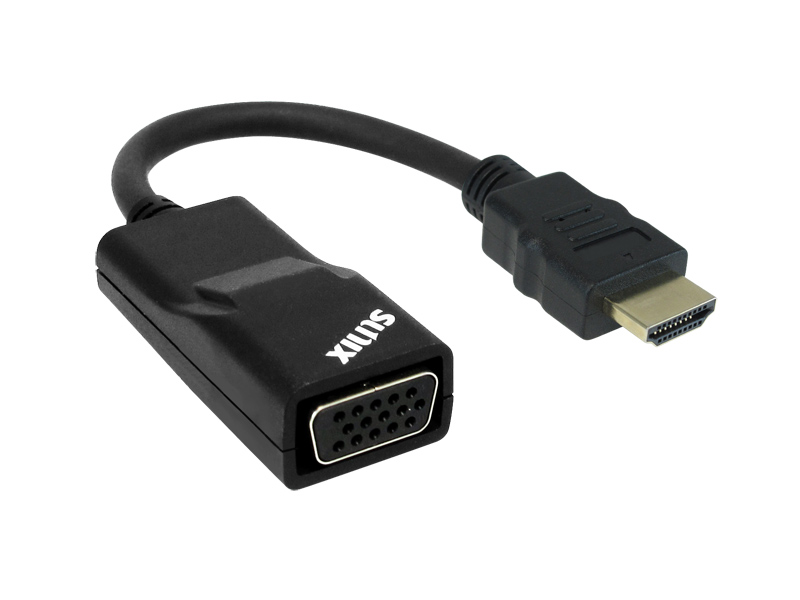

HDMI to VGA Adapter
- Connect your standard VGA monitor or projector to a HDMI equipped computer.
- Integrated chip to provide an active digital to analog conversion.
- Compliant with HDMI 1.4b specification.
- VGA output is compliant with VESA VSIS version 1, Rev.2 specification.
- Output resolutions up to 1920x1200 (WUXGA), HDTV resolutions up to 1080p.
- High quality, low power consumption design for long term durability and a minimal footprint.
- Easy plug and play allows seamless display of your laptop and tablet content to your display.
- Goldplated connectors resist corrosion, provide rigidity, and improve the signal performance.
- Compact design with no need for an external power ensures the best portable solution.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
Introduction
SUNIX H2V97C0 HDMI to VGA dongle offers a compact and portable solution for connecting a High-Definition VGA display. It allows user to connect a HDMI output from your laptop, Ultrabook, or desktop computer onto a VGA monitor or projector, saving the cost of upgrading to an HDMI compatible display. With no need for an external power source, it supports PC resolutions of up to 1920x1200 and HDTV resolutions up to 1080p. This high-resolution dongle offers plug and play functionality to provide an active digital to analog conversion without software or drivers.
Intended for outputting user generated content such as presentations, and work documents, the HDMI to VGA adapter can also work to increase your productivity by extending your computer's desktop onto to a secondary monitor, doubling available workspace.
Features
- Compliant with HDMI 1.4b and VGA VESA Rev.2 SPEC
- Driver free under Apple OSX, Google Chrome and Microsoft Windows
- Suitable for VGA-enabled TV, monitor and projector
- Connect a VGA monitor to a HDMI equipped laptop, digital camera or mobile device
- Shielding Case’s anti-jamming capability gives high quality signal
- HDMI connector comparison with SUNIX product number
Specifications
| Mode | H2V97C0 | ||
| Description | HDMI to VGA Adapter | ||
| Input Interface |
Compliant with HDMI 1.4
HDMI Male with cable
|
||
| Output Interface |
VGA RGB
VGA DSub 15pin Female
|
||
| Display Resolution | VGA | 640x480 | @60Hz |
| SVGA | 800x600 | @60Hz | |
| XGA | 1024x768 | @60Hz | |
| 720p | 1280x720 | @60Hz | |
| WXGA+ | 1280x768 | @60Hz | |
| WXGA | 1280x800 | @60Hz | |
| SXGA | 1280x1024 | @60Hz | |
| WXGA+ | 1366x768 | @60Hz | |
| SXGA+ | 1400x1050 | @60Hz | |
| UXGA | 1600x1200 | @60Hz | |
| WSXGA+ | 1680x1050 | @60Hz | |
| 1080p | 1920x1080 | @60Hz | |
| WUXGA | 1920x1200 | @60Hz | |
| Audio | Not Support | ||
| Housing | ABS | ||
| Driver Support |
Driver free under Apple MAC, Microsoft Windows,
Google Chrome & Android
|
||
| Power |
HDMI Bus power
500mW @ 5VDC
|
||
Environment |
Operation temp. 0 °C ～ 40 °C (32104°F) Operation humidity: < 85% noncondensing Storage temp. 10 °C ～ 85 °C (14~176°F) |
||
| Dimension |
46L x 22W x 13.2H mm Cable length: 80mm |
||
| Weight | 25.8g (0.91oz) | ||
| Compliance | CE, FCC, VCCI, BSMI | ||
Support
Download Manual
| Manual | H2V97C0 Quick Installation Guide |
|
| Version | Ver.1.0 | |
| Update | 2019-07-12 18:17:11 | |
| Size | 324.4KB |
Download Datasheet
| Datasheet | H2V97C0 Datasheet |
|
Download Driver
| Driver | Driver Free |
| OS |
All System
|
