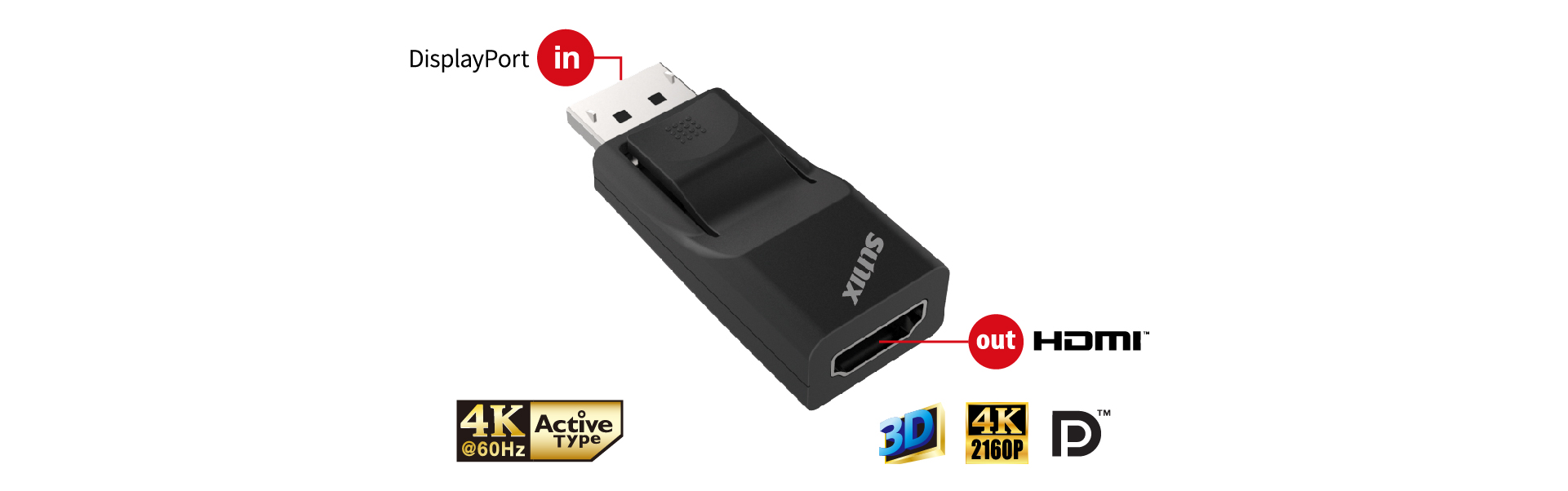

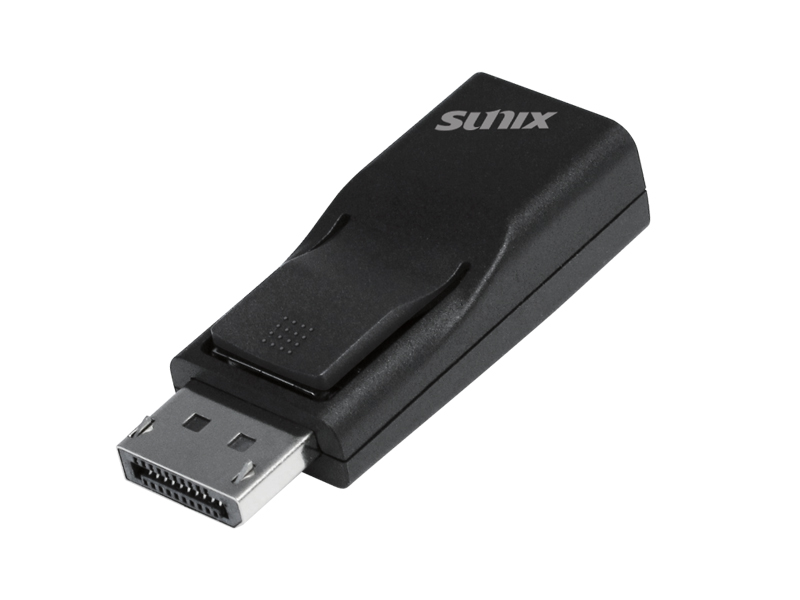

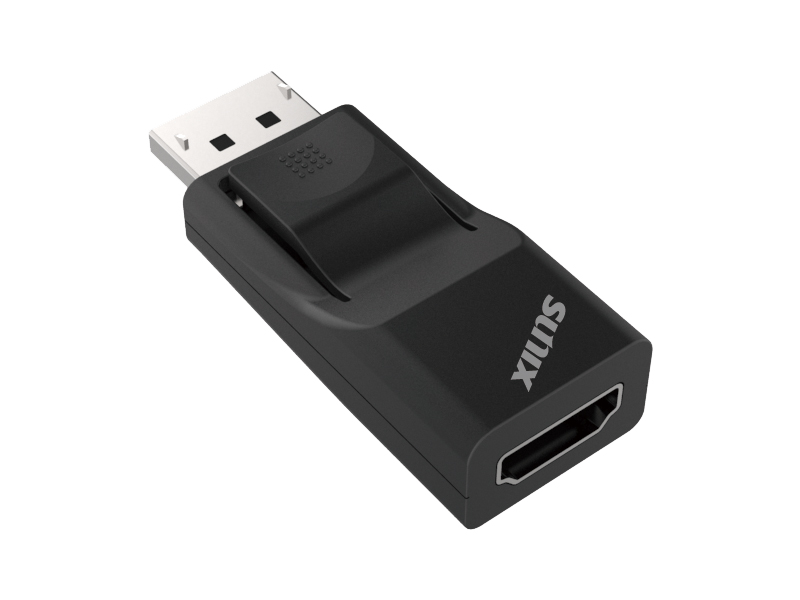

D2H13MD
DisplayPort to HDMI 2.0@60Hz Active Dongle
- Compliant with HDMI 2.0 spec. with HDTV 4K (2160p) resolution and stereoscopic 3D.
- Adapts DisplayPort equipped desktop & notebook systems to work with HDMI displays.
- Converts audio and video to any device display enabled with HDMI® technology.
- Compliant with DisplayPort 1.2 SPEC.
- Latching DP connector for a secure connection.
- Video resolution up to UHD 2160p at 60Hz and FHD 1080p at 120Hz.
- Highdefinition digital audio output over HDMI channel.
- Plug&play, driver free, and no external power needed.
- Support Apple MAC and Microsoft Windows platform.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
Introduction

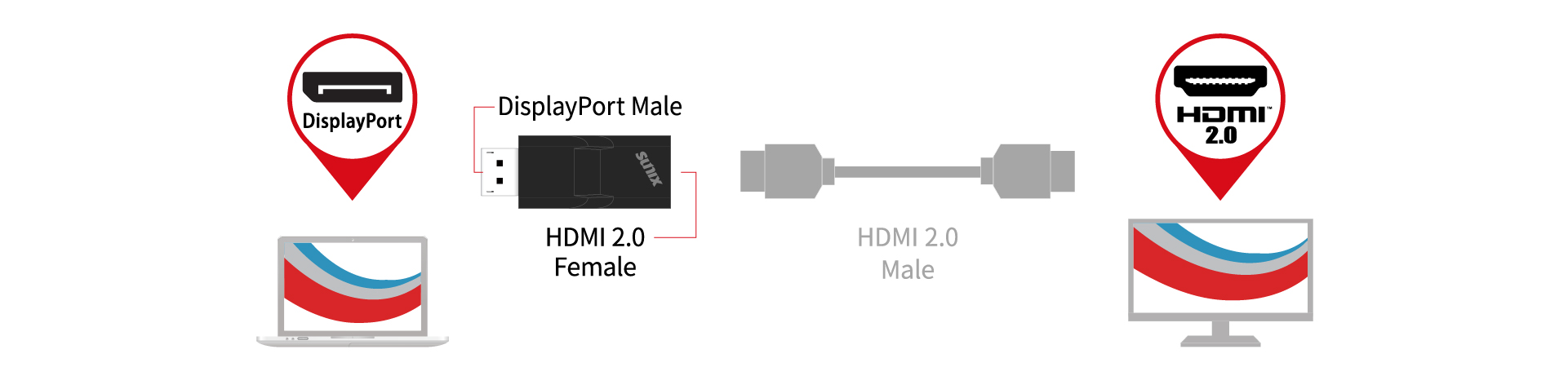

SUNIX D2H13MD, DisplayPort to HDMI dongle offers an active conversion HDMI/DisplayPort link, letting you connect an HDMI display to a device with a DisplayPort output while saving the expense of upgrading the monitor for compatibility. With portable pocket size and DisplayPort bus power source, it supports PC resolutions of up to 4K Ultra HD 2160p (3840x2160) at 60Hz and Full HD 1080P (1920x1080) at 120Hz. This highresolution adapter offers plug and play functionality to provide an audio and video conversion without additional driver. This video dongle is the best travel accessories of notebooks and Ultrabooks.
Features
- Compliant with DisplayPort 1.2 and HDMI 2.0 SPEC
- Driver free under Apple OSX, Google Chrome and Microsoft Windows
- Suitable for HDMI 2.0-enabled TV, monitor and projector
- The new HDMI 2.0 feature
- Connect a HDMI 2.0 monitor to a DisplayPort equipped laptop
- So thin that works with others smoothly
- Secured connection and easy to unplug
- Shielding Case’s anti-jamming capability gives high quality signal
Specifications
| Model | D2H13MD | ||
| Description | DisplayPort to HDMI 2.0 4K60Hz UHD Active Dongle | ||
| Input Interface |
DisplayPort 1.2
Standard DisplayPort Male
|
||
| Output Interface |
HDMI Ver2.0
Standard HDMI Female
|
||
| Power |
DisplayPort Bus power
+3.3VDC @ 250mA
|
||
| Display Resolution | Name | Resolution | Refresh Rate |
| VGA | 640x480 | 60 Hertz | |
| SVGA | 800x600 | 60 Hertz | |
| XGA | 1024x768 | 60 Hertz | |
| 720p | 1280x720 | 60 Hertz | |
| WXGA+ | 1280x768 | 60 Hertz | |
| WXGA | 1280x800 | 60 Hertz | |
| SXGA | 1280x1024 | 60 Hertz | |
| WXGA+ | 1366x768 | 60 Hertz | |
| SXGA+ | 1400x1050 | 60 Hertz | |
| UXGA | 1600x1200 | 60 Hertz | |
| WSXGA+ | 1680x1050 | 60 Hertz | |
| 1080p Full HD | 1920x1080 | 60 / 120Hertz | |
| WUXGA | 1920x1200 | 60 Hertz | |
| QXGA | 2048x1152 | 60 Hertz | |
| WQXGA | 2560x1600 | 60 Hertz | |
| 2160p UHD | 3840x2160 | 60 Hertz | |
| 4K++ | 4096x2160 | 60 Hertz | |
| Audio | 8Channel Digital Audio | ||
| Housing | ABS (plastic) | ||
Driver Support |
Driver free under |
||
| Compliance | CE, FCC, VCCI, BSMI | ||
Environment |
Operation temp.: 0 °C ～ 60 °C (32~140°F) Operation humidity: < 85% noncondensing Storage temp.: 10 °C ～ 85 °C (14~176°F) |
||
Dimension |
56.8L x 22W x 13.2H mm | ||
| Weight | 15g (0.5oz) | ||
To perform 4K@60Hz resolution, PC/laptop has to support DisplayPort Ver1.2 SEPC, such as AMD GCN cards, Nvidia® Maxwell cards and Intel® Haswell HD 4XXX & Skylake HD 5XX series and newer. Not intended for older architectures (such as Intel Ivy Bridge HD 3XXX / NVidia Kepler 5xx series Graphics)
Support
Download Manual
| Manual | D2H13MD Manual |
|
| Version | Ver. 1.0 | |
| Update | 2024-11-26 16:20:23 | |
| Size | 206KB |
Download Datasheet
| Datasheet | D2H13MD Datasheet |
|
Download Driver
| Driver | Driver Free |
| OS |
All System
|
