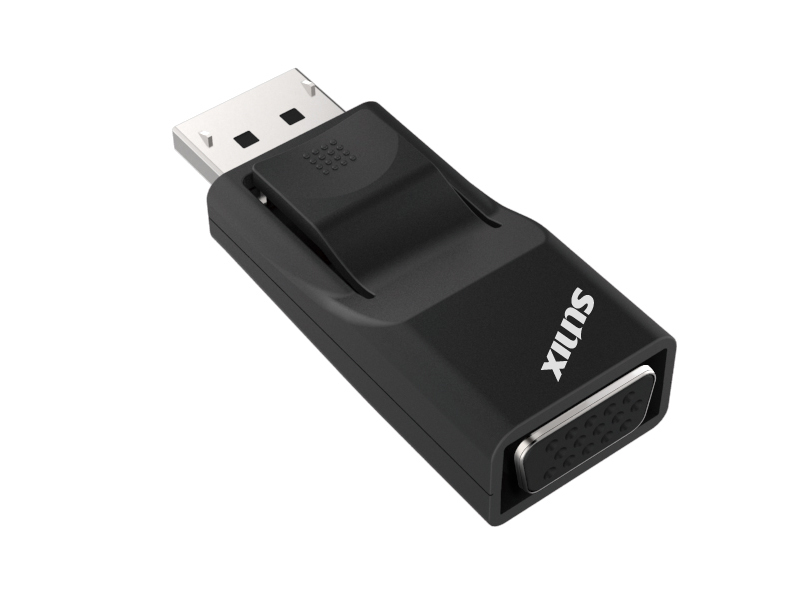

D2V17C0
DisplayPort to VGA Dongle
- Converts a graphics card's DisplayPort output to a VGA output for use with a VGA monitor.
- Integrated chip to provide an active digital to analog conversion.
- Compliant with DisplayPort specification Ver1.2/1.1 (2.7 &1.62Gb/s).
- VGA output is compliant with VESA VSIS version 1, Rev.2 specification.
- Latching DP connector for a secure connection.
- Easy plug and play allows seamless display of your laptop and tablet content to your display.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
Introduction
SUNIX D2V17C0 DisplayPort to VGA dongle lets you connect a VGA computer monitor/project to a DisplayPort graphics card or other DisplayPort source, eliminating the expense of upgrading the monitor for compatibility. It supports PC resolutions of up to 1920x1200 and HDTV resolutions up to 1080p. This high-resolution adapter offers plug and play functionality to provide an active digital to analog conversion without software or drivers.
Features
- Compliant with DP 1.2, DP++ v1.1, and VESA VGA SPEC
- Driver free under Apple OSX, Google Chrome and Microsoft Windows
- Suitable for VGA-enabled TV, monitor and projector
- Connect a VGA monitor to a DisplayPort equipped laptop
- So thin that works with others smoothly
- Secured connection and easy to unplug
- Shielding Case’s anti-jamming capability gives high quality signal
Film
Specifications
| Model | D2V17C0 | |
| Description | DisplayPort to VGA Dongle | |
| Input Interface |
Compliant with DisplayPort 1.2/1.1
Standard DisplayPort Male
|
|
| Output Interface |
VGA RGB
VGA D-Sub 15-pin Female
|
|
| Display Resolution | VGA | 640x480 |
| SVGA | 800x600 | |
| XGA | 1024x768 | |
| 720p | 1280x720 | |
| WXGA+ | 1280x768 | |
| WXGA | 1280x800 | |
| SXGA | 1280x1024 | |
| WXGA+ | 1366x768 | |
| SXGA+ | 1400x1050 | |
| UXGA | 1600x1200 | |
| WSXGA+ | 1680x1050 | |
| 1080p | 1920x1080 | |
| WUXGA | 1920x1200 | |
| Audio | Not Support | |
| Housing | ABS | |
| Power |
DisplayPort Bus power
500mW @ 3.3VDC
|
|
Environment |
Operation temp.: 0 °C ～ 60 °C (32-104°F) Operation humidity: < 85% non-condensing Storage temp.: -10 °C ～ 85 °C (14~176°F) |
|
| Dimension | 57.8L x 22W x 13.2H mm | |
| Weight | 15g (0.5oz) | |
| Compliance | CE, FCC, VCCI, BSMI | |
Support
Download Manual
| Manual | D2V17C0 Manual |
|
| Version | Ver. 1.0 | |
| Update | 2024-11-26 16:19:34 | |
| Size | 185.4KB |
Download Datasheet
| Datasheet | D2V17C0 Datasheet |
|
Download Driver
| Driver | Driver Free |
| OS |
All System
|
| Driver | fw_ch7517_v3.0.05 | |
| Version | V3.0.05 | |
| Update | 2014-08-04 23:54:09 | |
| Size | 1.4MB | |
| OS |
FirmWare
|
