VGA2795 (phased out)
USB 3.0 to DisplayPort Graphics Adapter with 4K Ultra-HD Resolution Support (USBIF TID 310930006)
- Add-on monitor, LCD or projector through USB 3.0 or USB 2.0 connectivity.
- Supports widescreen aspect ratio of 16:9 Full HD 4K Ultra-HD video streaming.
- High performance USB Graphics Engine supports resolutions up to 3840X2160 pixels @ 32bit.
- Compliant with VESA DisplayPort Specification.
- Low power consumption via USB Bus power supply (without Heat Sink).
- Supports display mirror, extend, multi screen and screen rotation modes.
- Up to six USB 3.0 graphic dongles to work simultaneously.
- Automatic recognition of monitor type, resolution, and features.
- Hot-swapping / Plug-n-Play of monitors without reconfiguration.
- Movement of windows on the desktop is smooth, with no trail or shuddering.
- Compatible with Windows power management hibernate and suspend modes.
- Specialized for office using, home entertainment, and video playing.
- Supports Microsoft Windows operation system.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
Certification
Introduction
SuperSpeed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard, USB 3.0 Graphic dongle enhances better VGA performance effect and reduce CPU loading substantially.
SUNIX VGA2795 USB 3.0 to DisplayPort Graphics Adapter provides a unique solution to add extra displays to a computer without using traditional graphics card. Users can instantly mirror or extend a desktop onto another display via VESA DisplayPort connectivity, such as LCD displays and projectors. Besides, user can experience 4K Ultra-HD resolution and stereo audio output abilities over DisplayPort connectivity for home entertainment application. With USB interface plug-n-play and bus-power feature, this product brings multi-monitor applications into the mainstream.
Features
- Add-on monitor or projector via USB 3.1 / 3.0 / 2.0 connectivity
- Upgrade to 4K UHD instantly
- Support Microsoft Windows for multitask usages
- Suitable for DisplayPort-enabled TV, monitor and projector
- Connect a DisplayPort monitor to a USB equipped laptop
- Come with a USB 3.0 Type-A Male to Micro B Male cable
- Different Display Modes (Maximum 6 adapters connect to 6 displays)
- Screen Rotation Mode
Specifications
| Interface |
Video Interface: DisplayPort
Bus Interface: USB 3.0 (Back compatible with USB 2.0)
|
||
| Connector |
Video Output: DisplayPort Female Receptacle
Host upstream link: USB 3.0 Micro B Type Female Receptacle
|
||

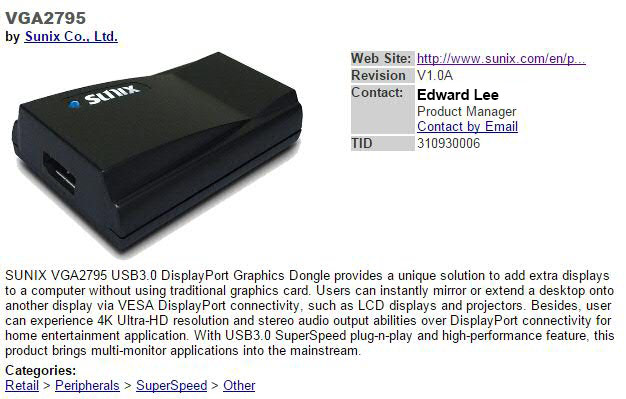

| USBIF TID | 310930006 | ||
| Memory | 1GB DDR3 Synchronous DRAM (SDRAM) | ||
| Power Consumption | + 5VDC / 400mA over USB bus power | ||
| Support Mode |
Extend mode, Mirror mode, Multi Screen mode, Screen Rotation mode |
||
|
Resolutions
|
Resolution | Name | Refresh Rate |
| 640x480 | VGA | 60 67 72 75 85 | |
| 800x600 | SVGA | 56 60 72 75 85 | |
| 1024x768 | XGA | 60 70 75 85 | |
| 1280x720 | 720p | 50 60 | |
| 1280x768 | WXGA+ | 60 75 85 | |
| 1280x800 | WXGA | 60 | |
| 1280x1024 | SXGA | 60 75 | |
| 1366x768 | WXGA+ | 50 60 | |
| 1400x1050 | SXGA+ | 60 75 85 | |
| 1600x900 | 60 | ||
| 1600x1200 | UXGA | 60 | |
| 1680x1050 | WSXGA+ | 60 | |
| 1920x1080 | 1080p | 50 60 | |
| 1920x1200 | WUXGA | 60 | |
| 2048x1152 | 60 | ||
| 2560x1440 | 60 | ||
| 2560x1600 | 60 | ||
| 3840x2160 | UHD | 30 | |
Regulatory Approvals |
CE, FCC, VCCI, BSMI | ||
| O.S. Support |
Microsoft:
Windows 10 (32/64bit)
Windows Vista (32/64bit)
(Not compatible with Windows RT Tablets),
Apple:
MAC OSX 10.6 above
|
||
Environment |
Operation temp. 10 °C ～ 40 °C (50-104°F)
Relative humidity: < 85% non-condensing
Storage temp. -10 °C ～ 85 °C (14~176°F)
|
||
Dimension |
56 (W) x 87(L) x 22(H) mm | ||
| Case Material | ABS | ||
| Weight | 50g±5g | ||
| USB Cable | USB 3.0 A -Type Male to USB 3.0, Micro B-Type Male | ||
Accessories
Including Accessories
USB 3.0 Type-A Male to USB Micro-B Male Cable
- 60cm
- 1 pcs.
Support
Download Manual
| Manual | VGA27X5 Manual |
|
| Version | Ver 1.0 | |
| Update | 2017-07-31 09:50:58 | |
| Size | 2.6MB |
Download Datasheet
| Datasheet | VGA2795 Datasheet |
|
Download Guide
| Guide | VGA27X5 QIG |
|
Download Driver
| Driver | DisplayLink USB Graphics Software for Windows11.0 M0 | |
| Version | 11.0 M0 | |
| Update | 2023-05-05 11:36:53 | |
| Size | 84.1MB | |
| OS |
Windows 11 64bit
|
| Driver | DisplayLink USB Graphics Software for Windows10.3 M0 | |
| Version | 10.3 M0 | |
| Update | 2023-05-05 11:37:52 | |
| Size | 82.2MB | |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
|
| Driver | DisplayLink USB Graphics Software for Windows 7.6 M2 | |
| Version | 7.6 M2 | |
| Update | 2019-03-08 18:15:53 | |
| Size | 16.9MB | |
| OS |
Windows Vista SP2 32/64 bit
Windows XP 32bit
|
| Driver | DisplayLink Manager Graphics Connectivity1.8.1 | |
| Version | 1.8.1 | |
| Update | 2023-05-05 11:48:53 | |
| Size | 8.3MB | |
| OS |
OS X Big Sur 11
OS X Monterey 12
OS X Ventura 13
|
| Driver | DisplayLink USB Graphics Software for Mac OS X 5.2.6 | |
| Version | 5.2.6 | |
| Update | 2023-05-05 11:50:06 | |
| Size | 12.2MB | |
| OS |
OS X Mojave 10.14
OS X Catalina 10.15
|
| Driver | DisplayLink USB Graphics Software for Mac OS X 4.3.1 | |
| Version | 4.3.1 | |
| Update | 2019-03-08 18:18:50 | |
| Size | 9MB | |
| OS |
OS X El Capitan 10.11
OS X Sierra 10.12
OS X High Sierra 10.13
|
| Driver | DisplayLink USB Graphics Software for Mac OS X 3.1.1 | |
| Version | 3.1.1 | |
| Update | 2019-03-08 18:19:36 | |
| Size | 4.5MB | |
| OS |
OS X Yosemite 10.10
|
| Driver | DisplayLink USB Graphics Software for Mac OS X 2.6 | |
| Version | 2.6 | |
| Update | 2019-03-08 18:20:10 | |
| Size | 4.6MB | |
| OS |
OS X Mountain Lion 10.8
OS X Mavericks 10.9
|
| Driver | DisplayLink USB Graphics Software for Mac OS X 2.2 | |
| Version | 2.2 | |
| Update | 2019-03-08 18:20:51 | |
| Size | 5.9MB | |
| OS |
OS X Snow Leopard 10.6
OS X Lion 10.7
|
| Driver | DisplayLink USB Graphics Software for Ubuntu 5.7 | |
| Version | 5.7 | |
| Update | 2023-05-05 13:29:57 | |
| Size | 16.3MB | |
| OS |
Ubuntu 20.04
Ubuntu 22.04
|
| Driver | DisplayLink USB Graphics Software for Ubuntu 5.1 | |
| Version | 5.1 | |
| Update | 2019-03-08 18:21:53 | |
| Size | 11.5MB | |
| OS |
Ubuntu 16.04
Ubuntu 18.04
|
| Driver | Inbox-Driver |
| OS |
Android 5 (Lollipop) onwards.
Google's R51 build onwards.
|
