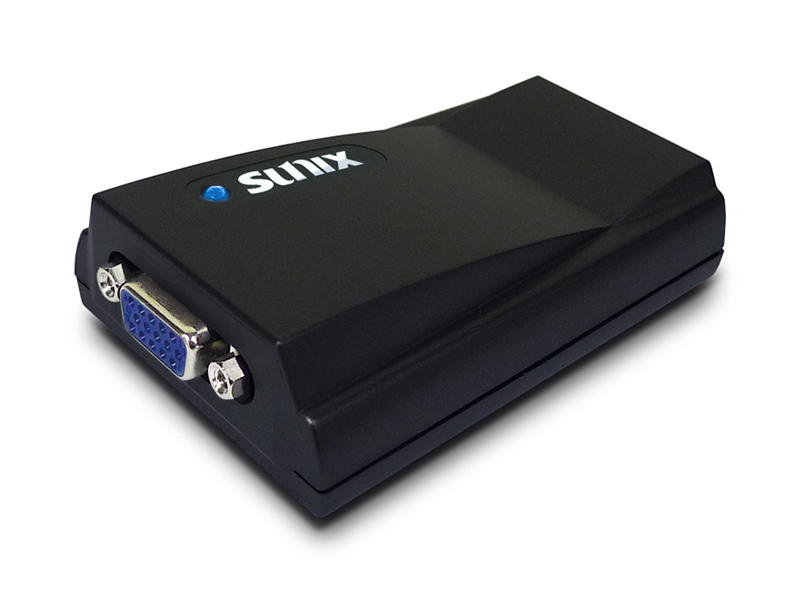

VGA2715
USB 3.0 to VGA (D-sub) Graphics Adapter
- Add-on monitor, LCD or projector through USB 3.0 or USB 2.0 connectivity.
- Support widescreen aspect ratio of 16:9 Full HD 1080P video streaming.
- High performance USB Graphics Engine supports resolutions up to 2048 x 1152 @ 32bit.
- Low power consumption via USB Bus power supply (without Heat Sink).
- Support display mirror, extend, multi screen and screen rotation modes.
- Up to six USB 3.0 graphic adapters to work simultaneously.
- Automatic recognition of monitor type, resolution, and features.
- Hot-swapping / Plug-n-Play of monitors without reconfiguration.
- Movement of windows on the desktop is smooth, with no trail or shuddering.
- Compatible with Windows power management hibernate and suspend modes.
- Specialized for office using, home entertainment, and video playing.
- Support Microsoft Windows operation system.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
Introduction
SuperSpeed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard, USB 3.0 Graphic adapter enhances better VGA performance effect and reduce CPU loading substantially.
SUNIX VGA2715 USB 3.0 to VGA (D-sub) Graphics Adapter provides a unique solution to add extra displays to a computer without using traditional graphics cards. Users can instantly mirror or extend a desktop onto another display via standard VGA (D-sub), such as LCD, CRT, projector and plasma displays. With USB interface plug-n-play and bus power feature, this product brings multi-monitor applications into the mainstream.
Features
- Add-on monitor or projector via USB 3.1 / 3.0 / 2.0 connectivity
- Support Microsoft Windows for multitask usages
- Suitable for VGA-enabled TV, monitor and projector

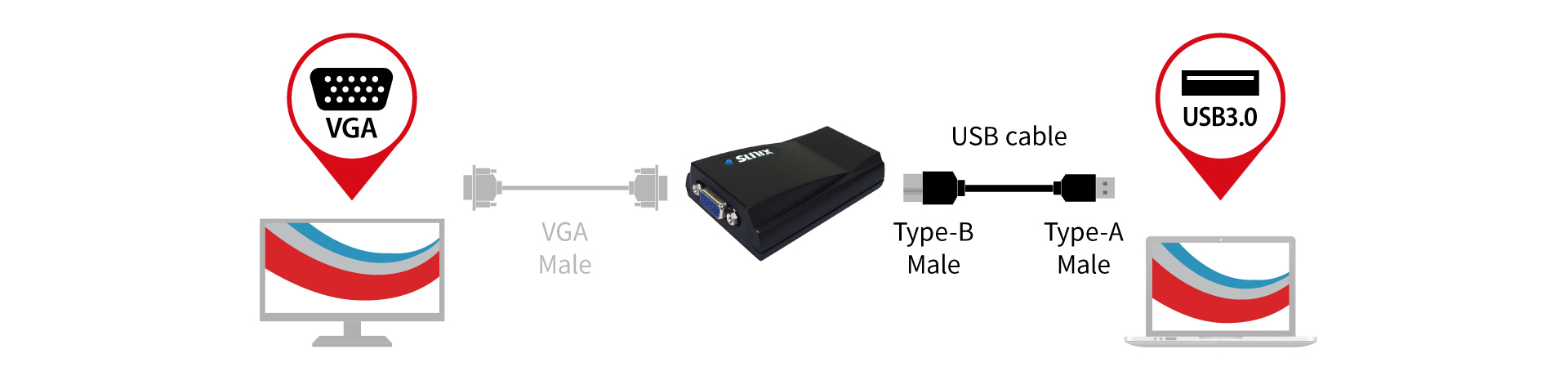

- Connect a VGA monitor to a USB equipped laptop
- Come with a USB 3.0 Type-A Male to Micro B Male cable
- Different Display Modes (Maximum 6 adapters connect to 6 displays)
- Screen Rotation Mode
Specifications
Interface |
Video Interface: VGA D-sub
Bus Interface: USB 3.0 (Back compatible with USB 2.0)
|
||
Connector |
D-sub 15pin Female Connector
Host upstream link: USB 3.0 Micro B Type Female Connector
|
||
Memory | 512MB DDR2 Synchronous DRAM (SDRAM) | ||
Power Consumption | + 5VDC / 400mA over USB bus power | ||
Support Mode |
Extend mode, Mirror mode, Multi Screen mode, Screen Rotation mode |
||
Resolutions
|
Resolution | Name | Refresh Rate |
640x480 | VGA | 60 67 72 75 85 | |
800x600 | SVGA | 56 60 72 75 85 | |
1024x768 | XGA | 60 70 75 85 | |
1280x720 | 720p | 50 60 | |
1280x768 | WXGA+ | 60 75 85 | |
1280x800 | WXGA | 60 | |
1280x1024 | SXGA | 60 75 | |
1366x768 | WXGA+ | 50 60 | |
1400x1050 | SXGA+ | 60 75 85 | |
1600x900 | 60 | ||
1600x1200 | UXGA | 60 | |
1680x1050 | WSXGA+ | 60 | |
1920x1080 | 1080p | 50 60 | |
1920x1200 | WUXGA | 60 | |
2048x1152 | 60 | ||
Regulatory Approvals |
CE, FCC, VCCI, BSMI | ||
O.S. Support |
Microsoft:
Windows 10 (32/64bit),Windows 8.x (32/64bit), Windows 7 (32/64bit),
Windows Vista (32/64bit),Windows XP (32bit)
(Not compatible with Windows RT Tablets),
Apple:
MAC OSX 10.6 above
|
||
Environment |
Operation temp. 0 °C ~ 40 °C (32-104°F)
Relative humidity: < 85% non-condensing
Storage temp. -10 °C ~ 70 °C (14~158°F)
|
||
Dimension |
56 (W) x 87(L) x 22(H) mm | ||
Case Material | ABS | ||
Weight | 50g±5g |
Accessories
Including Accessories
- 60cm
- 1 pcs.
Support
Download Manual
Manual | VGA27X5 Manual | |
Version | Ver 1.0 | |
Update | 2017-07-31 09:50:58 | |
Size | 2.6MB |
Download Datasheet
Datasheet | VGA2715 Datasheet |
Download Guide
Guide | VGA27X5 QIG |
Download Driver
Driver | DisplayLink USB Graphics Software for Windows11.0 M0 | |
Version | 11.0 M0 | |
Update | 2023-05-05 11:36:53 | |
Size | 84.1MB | |
OS |
Windows 11 64bit
|
Driver | DisplayLink USB Graphics Software for Windows10.3 M0 | |
Version | 10.3 M0 | |
Update | 2023-05-05 11:37:52 | |
Size | 82.2MB | |
OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
|
Driver | DisplayLink USB Graphics Software for Windows 7.6 M2 | |
Version | 7.6 M2 | |
Update | 2019-03-08 18:15:53 | |
Size | 16.9MB | |
OS |
Windows Vista SP2 32/64 bit
Windows XP 32bit
|
Driver | DisplayLink Manager Graphics Connectivity1.8.1 | |
Version | 1.8.1 | |
Update | 2023-05-05 11:48:53 | |
Size | 8.3MB | |
OS |
OS X Big Sur 11
OS X Monterey 12
OS X Ventura 13
|
Driver | DisplayLink USB Graphics Software for Mac OS X 5.2.6 | |
Version | 5.2.6 | |
Update | 2023-05-05 11:50:06 | |
Size | 12.2MB | |
OS |
OS X Mojave 10.14
OS X Catalina 10.15
|
Driver | DisplayLink USB Graphics Software for Mac OS X 4.3.1 | |
Version | 4.3.1 | |
Update | 2019-03-08 18:18:50 | |
Size | 9MB | |
OS |
OS X El Capitan 10.11
OS X Sierra 10.12
OS X High Sierra 10.13
|
Driver | DisplayLink USB Graphics Software for Mac OS X 3.1.1 | |
Version | 3.1.1 | |
Update | 2019-03-08 18:19:36 | |
Size | 4.5MB | |
OS |
OS X Yosemite 10.10
|
Driver | DisplayLink USB Graphics Software for Mac OS X 2.6 | |
Version | 2.6 | |
Update | 2019-03-08 18:20:10 | |
Size | 4.6MB | |
OS |
OS X Mountain Lion 10.8
OS X Mavericks 10.9
|
Driver | DisplayLink USB Graphics Software for Mac OS X 2.2 | |
Version | 2.2 | |
Update | 2019-03-08 18:20:51 | |
Size | 5.9MB | |
OS |
OS X Snow Leopard 10.6
OS X Lion 10.7
|
Driver | DisplayLink USB Graphics Software for Ubuntu 5.7 | |
Version | 5.7 | |
Update | 2023-05-05 13:29:57 | |
Size | 16.3MB | |
OS |
Ubuntu 20.04
Ubuntu 22.04
|
Driver | DisplayLink USB Graphics Software for Ubuntu 5.1 | |
Version | 5.1 | |
Update | 2019-03-08 18:21:53 | |
Size | 11.5MB | |
OS |
Ubuntu 16.04
Ubuntu 18.04
|
Driver | Inbox-Driver |
OS |
Android 5 (Lollipop) onwards.
Google's R51 build onwards.
|
