C2VC7AD (phased out)

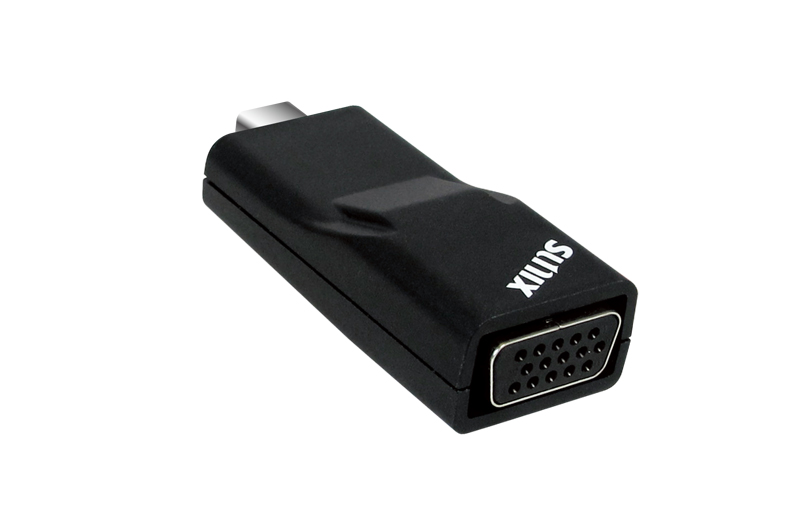

USB Type-C to VGA Dongle

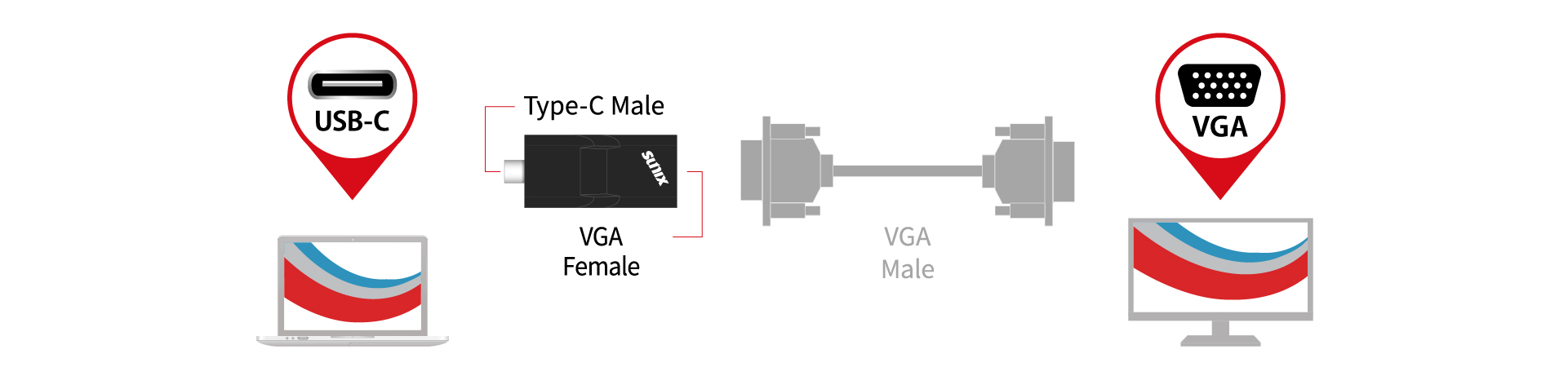

- Adapts USB Type-C equipped laptops to work with VGA-enabled displays.
- Integrated chip to provide an active digital to analog conversion.
- Compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.
- VGA output is compliant with VESA VSIS version 1, Rev.2 specification.
- Shielding Case’s anti-jamming capability gives high quality signal.
- Easy plug and play allows seamless display of your laptop and tablet content to your display.
- Driver free under Apple MAC, Google Chromebook and Windows systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
Introduction
This high-resolution dongle offers plug and play functionality to provide an active digital to analog conversion without software or drivers. Simply attach SUNIX USB Type-C to VGA Dongle to the USB Type-C connector on your laptop and then to your TV or projector via a VGA cable. You can use an external display as your main workspace or to extend your desktop, or you can work in mirrored mode with a projector so you can view what your audience sees.
Features
- Compliant with VESA DisplayPort Alternate Mode for USB-C Standard.
- Driver free under Apple OSX, Google Chrome and Microsoft Windows
- Suitable for VGA-enabled TV, monitor and projector
- Connect a VGA monitor to an USB-C equipped laptop / mobile device
- USB Type-C Reversible Design
- Shielding Case’s anti-jamming capability gives high quality signal
Specifications
| Model | C2VC7AD | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USB Type-C to VGA Dongle | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Interface |
USB Type-C
USB Type-C Male, DisplayPort Alternate Mode
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Interface |
VGA RGB
VGA D-Sub 15-pin Female
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Power |
USB Bus Power
+5VDC @ 250mA
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Display Resolution |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Not Support | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Housing | ABS(Plastic) | |||||||||||||||||||||||||||||||||||||||||||||||||||
Driver Support |
Driver free under Apple MAC, Google Chrome, and Microsoft Windows | |||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
Operation temp. 0 °C ～ 40 °C (32-140°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
53.7(L) x 22(W) x 13(H) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 15g (0.5oz) | |||||||||||||||||||||||||||||||||||||||||||||||||||
Regulatory Approvals |
CE, FCC, VCCI, BSMI | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Green Environment | RoHS, CRoHS, WEEE | |||||||||||||||||||||||||||||||||||||||||||||||||||
Note: Before purchasing this adapter, please make sure your computer supports USB-C Alternate Mode or Thunderbolt 3.
Support
Download Datasheet
| Datasheet | C2VC7AD Datasheet |
|
Download Driver
| Driver | Driver Free |
