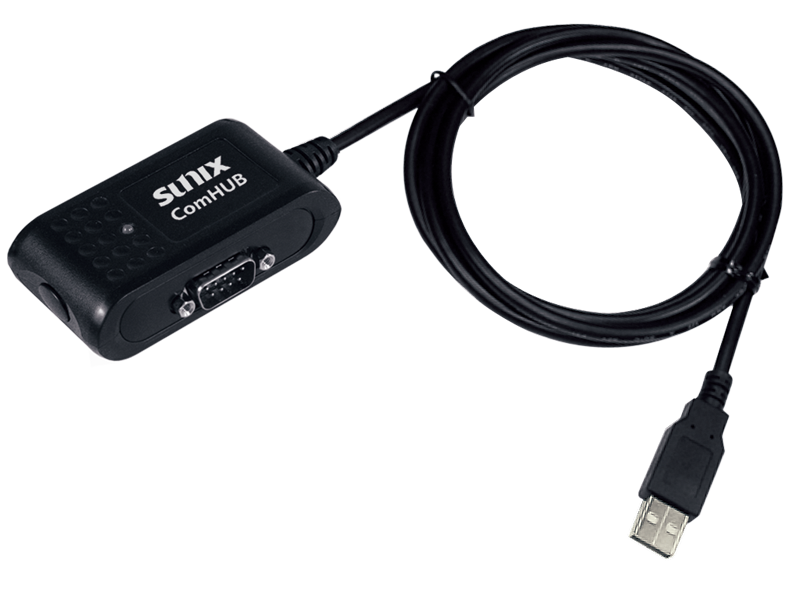

UTS2009PB
USB to 2 ports RS-232 Adapter
- Expands two RS-232 serial COM ports through USB interface.
- Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
- No IRQ, DMA, I/O address resource required.
- Supports USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1 compatible.
- Each serial port provides transmission rate up to 115.2Kbps.
- Built-in ±15KV ESD protection for all serial signals.
- Compact size and low power consumption.
- Supports USB bus power mode without additional external power.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Operation system supports Microsoft Windows, Mac and Linux.
Introduction
SUNIX UTS2009PB ComHub transforms your Universal Serial Bus (USB) port into asynchronous RS-232 serial COM ports for communication with RS-232 devices. The USB-RS232 adapter is compatible with USB 3.0, 2.0 and 1.1 specifications with serial ports communication speed up to 115.2Kbps. UTS2009PB ComHub provides a quick, simple and cost-effective solution to bring the advantages of serial communicating for kinds of commercial and industrial automation applications.
Specifications
USB Communication
| Interface | Universal Serial Bus (USB) |
| Controller | Prolific PL2303HxD (16C550 UART Compatible) |
| Performance | USB 1.1 full speed 12Mbps |
| Receptacle Type | USB Type-A with 1500mm(5ft) cable |
| LED | Act when USB Data Link |
Serial Communication
| Interface | RS-232 |
| No. of Port |
2-port
|
| Baud rate | 50bps ~ 115.2Kbps |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| FIFO | 16 byte Hardware |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV ESD IEC61000-4-2 Contact Discharge |
| Receptacle Type | D-Sub 9-pin Male |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | Windows 2008 / 2012 / 2016 (X86/X64) |
| Windows Embedded | Windows CE 5.0 / 7.0 for x86 & ARM |
| Linux | Linux 2.x / 3.x / 4.x |
| MAC | Mac OS High Sierra (version 10.13) Mac OS X Sierra (version 10.12) Mac OS X El Capitan (version 10.11) Mac OS X Yosemite (version 10.10) Mac OS X Mavericks (version 10.9) Mac OS X Mountain Lion (version 10.8) Mac OS X Lion (version 10.7) Mac OS X Snow Leopard (version 10.6) |
Power
| Input | USB Bus-power 5VDC |
| Consumption | < 1.3W = 5V x 250mA |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH(Non-condensing) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| Housing Dimension | 75(W) x 40(D) x 22(H) mm |
| Cable Length | 1500 mm (5ft) |
Support
Download Manual
| Manual | UTSX009 |
|
Download Datasheet
| Datasheet | UTS2009PB Datasheet |
|
Download Driver
| Driver | PL23XX_Prolific_DriverInstaller_v204 | |
| Version | V2.0.4 | |
| Update | 2020-12-16 10:18:03 | |
| Size | 10.5MB | |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 64-bit
|
| Driver | PL2303HXD_G_Driver_v2.0.0_20191204 | |
| Version | V2.0.0 | |
| Update | 2020-08-07 09:39:58 | |
| Size | 1.3MB | |
| OS |
OS X Mavericks 10.9
OS X Yosemite 10.10
OS X El Capitan 10.11
OS X Sierra 10.12
OS X High Sierra 10.13
OS X Mojave 10.14
OS X Catalina 10.15
|
| Driver | PL2303_MacOSX_v1_5_1_20160309 | |
| Version | 1.5.1 | |
| Update | 2019-07-05 10:06:46 | |
| Size | 1.1MB | |
| OS |
OS X Snow Leopard 10.6
OS X Lion 10.7
OS X Mountain Lion 10.8
|
| Driver | Prolific2303 Linux Inbox Driver |
| OS |
Linux 2.4.31 above
|
