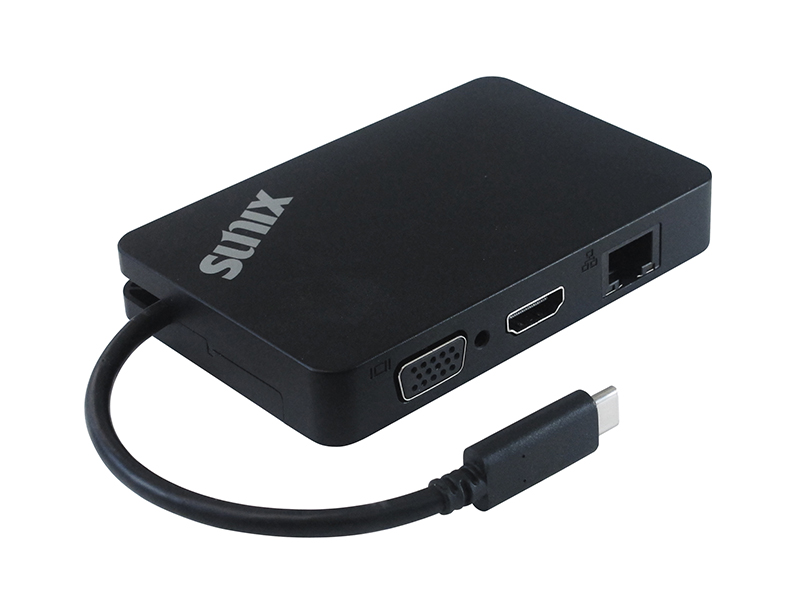

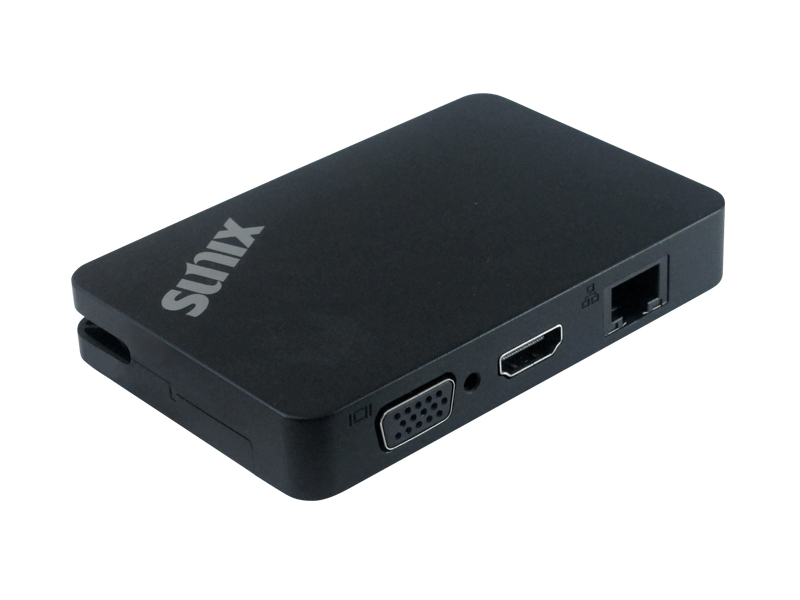

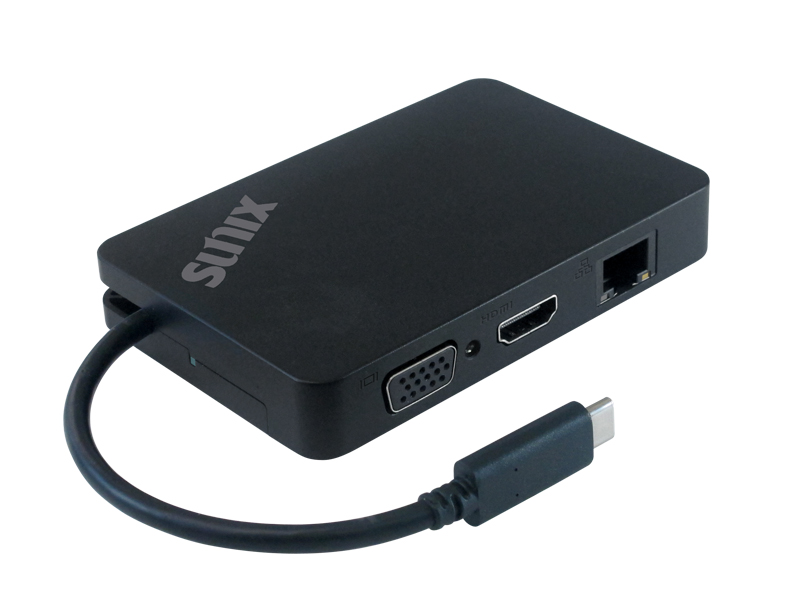

C0V50PB (phased out)

USB-C Portable Mini Dock with USB 3.0 / Gigabit Ethernet / VGA / HDMI

One USB TypeC connection to extend video and Ethernet from your Notebook PC accessories.
Compliant with VESA DisplayPort Alternate Mode for USB TypeC Standard Rev1.0.
Supports VGA or HDMI output resolution 1080P(1920x1200@60Hz).
Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
Standard USB port support downstream USB Battery Charging Spec. v1.2.
Compatible with Gigabit Ethernet networks and powered via USB.
Drivers free under Apple MAC, Google Chromebook, and Windows.
Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.

Introduction Features Specifications Support

Introduction

SUNIX portable Mini Dock (C0V50PB) offers the combined functionality of a 4in1 USB 3.0 device docking station, converting a single USBC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB TypeC equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USBC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. This small, multipleinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®based PC, Apple® MAC®OS, and Google® Chrome operation system.

Features

UNIX Portable Mini Dock (CCV50PB) is a 4-in-1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multipleinterfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Interfaces

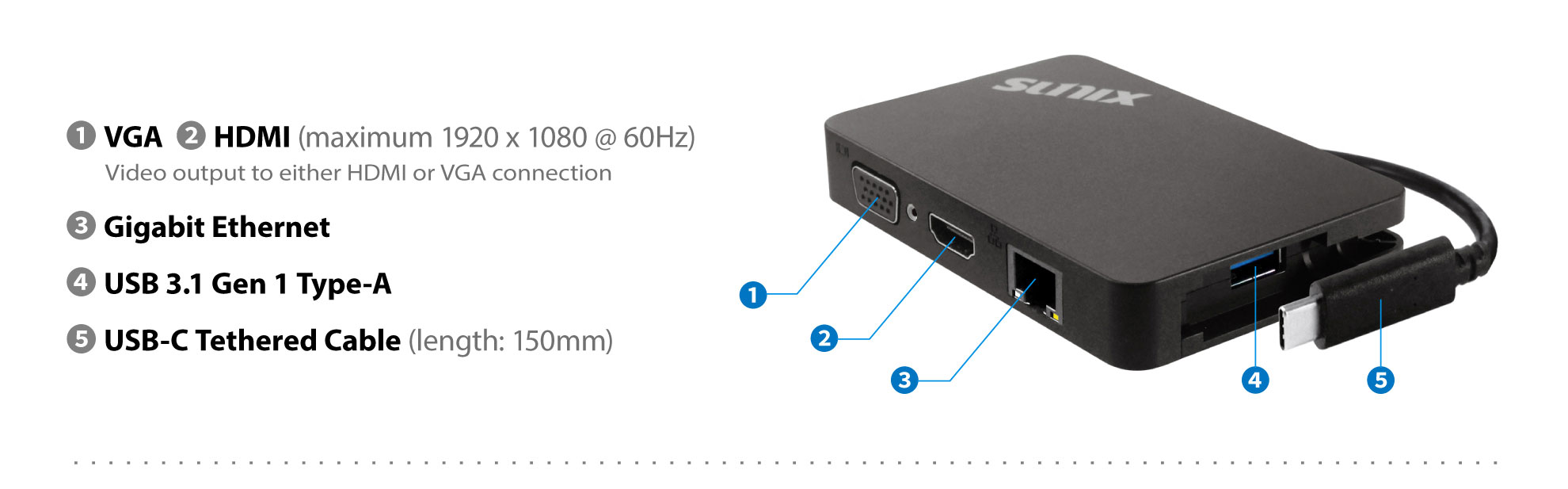

SUNIX Portable Mini Dock (CCV50PB) is a 4-in-1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multipleinterfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

HDMI or VGA Video Output

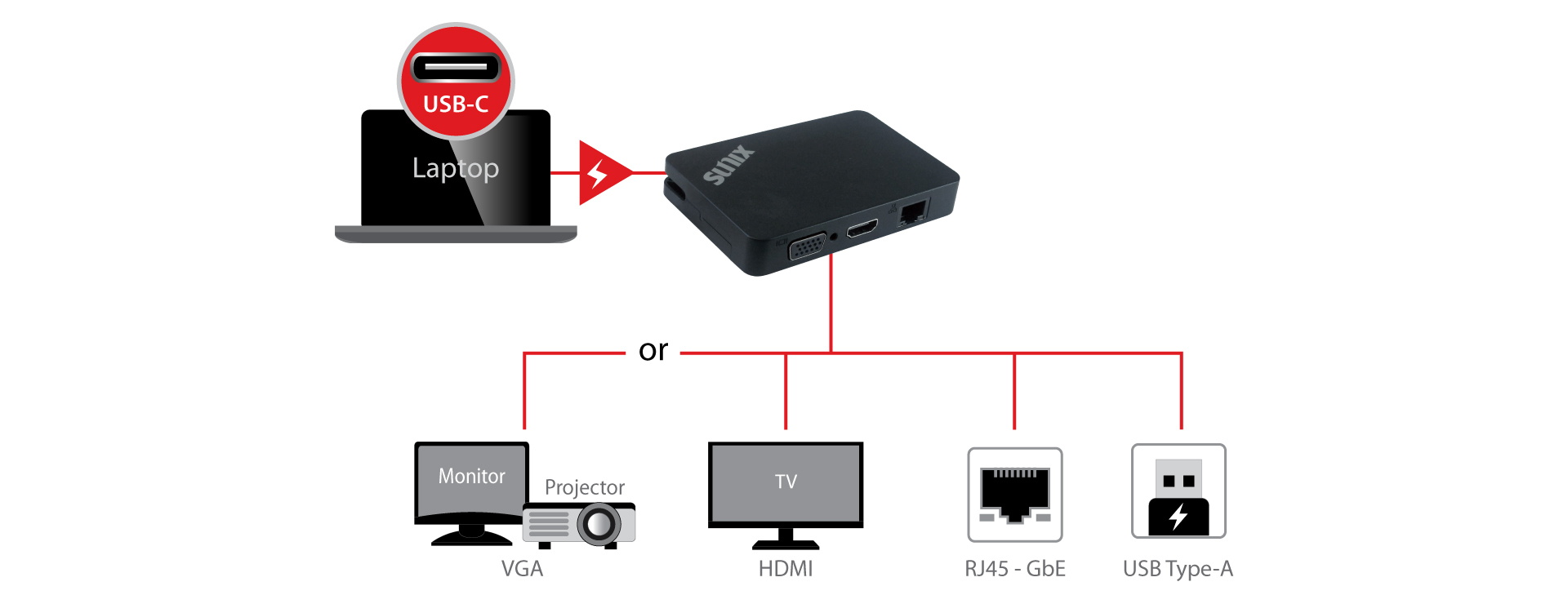

Use either the HDMI port or VGA port for video output & office presentation.

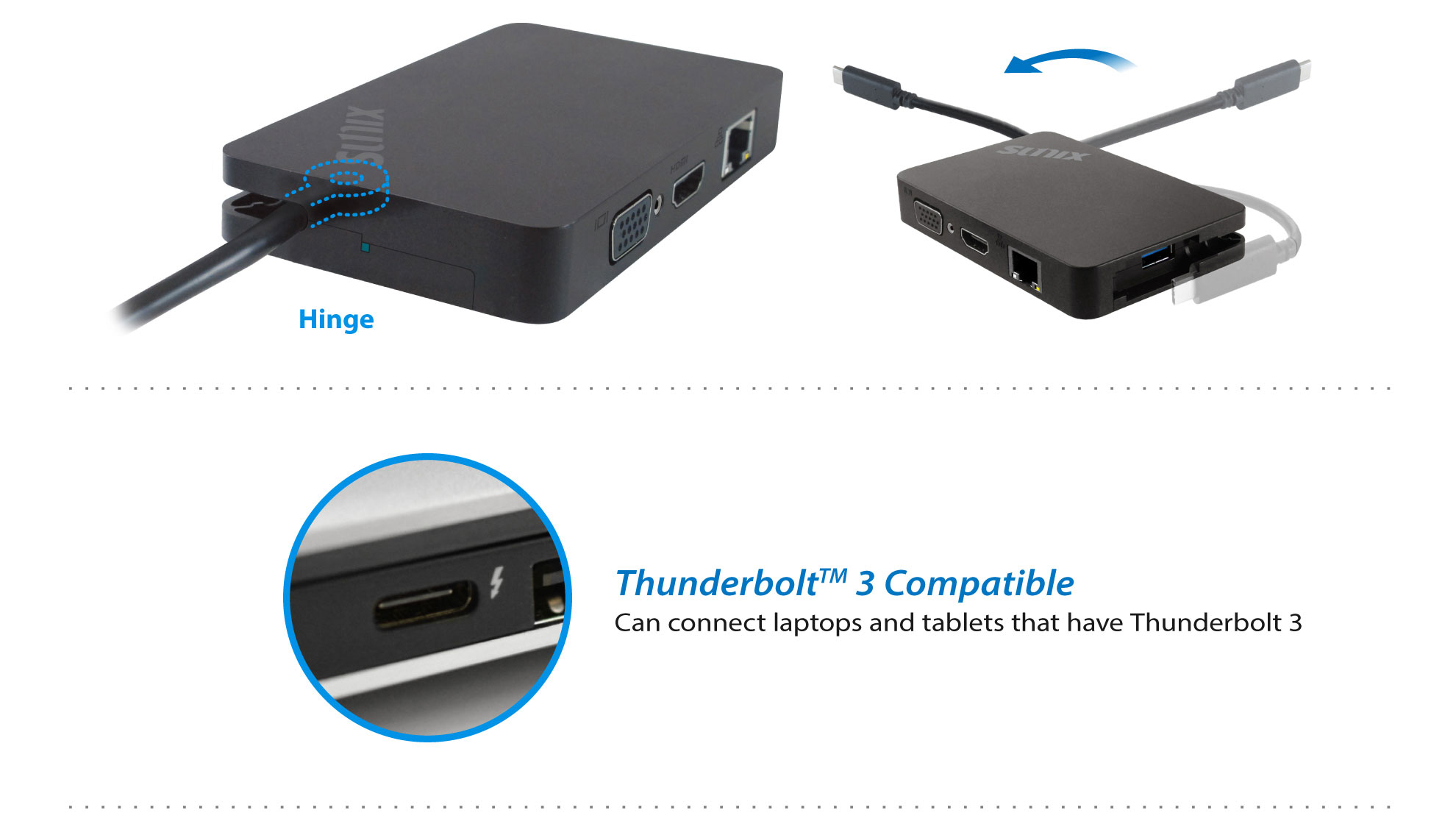

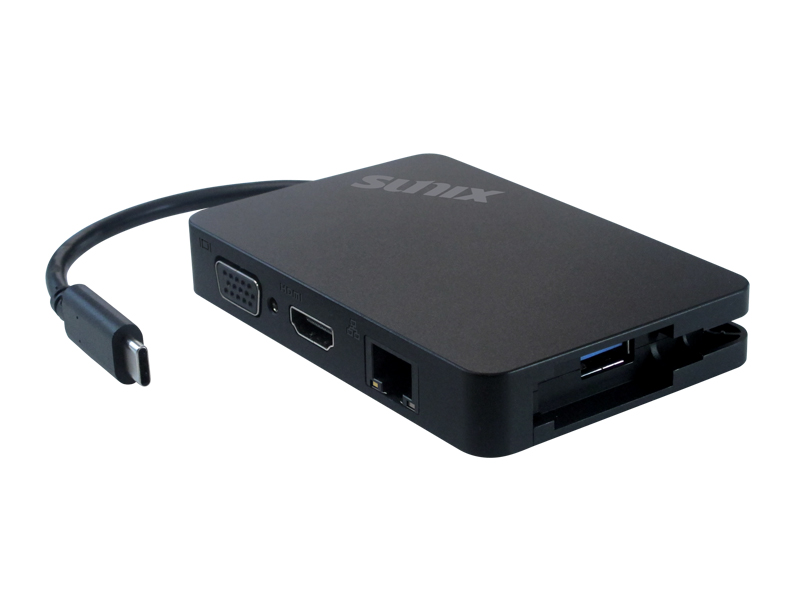

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight

Application

Specifications

Hardware

Model	C0V50PB
Description	USB-C Portable Mini Dock with USB 3.0 / Ethernet / VGA / HDMI
USB Standard	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface	USB TypeC USB TypeC Alternate Mode
Output Interface	USB 3.0 TypeA x 1port Gigabit Ethernet x 1port VGA(RGB) x 1port HDMI Ver1.4 x 1port
LED indicator	Green for USB Link Ready
Power Consumption	USB Bus Power 2W @ 5VDC (board only without power output to device)

USB Communication

Interface	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port	USB TypeA Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port	1port
Power source	USB Bus-Power 5V@1.5A from USB Type-C
Power output	USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection	USB TypeA Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard	IEEE 802.3/ 802.3u/ 802.3ab
Interface	Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX
No. of Port	1port
PCB Connector	RJ45 with LED Indication

Video and Audio Communication

Mode

Extend mode, Mirror mode, Screen Rotation mode

Standard

HDMI Ver1.4b
VGA RGB

Video

HDMI: Max resolution up to 1920x1200 @ 60Hz
VGA: Max resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.

Resolution Support

Resolution	Name	Refresh Rate
640x480	VGA	60
800x600	SVGA	60
1024x768	XGA	60
1280x720	720p	60
1280x768	WXGA+	60
1280x800	WXGA	60
1280x1024	SXGA	60
1366x768	WXGA+	60
1400x1050	SXGA+	60
1600x900		60
1600x1200	UXGA	60
1680x1050	WSXGA+	60
1920x1080	1080p	60
1920x1200	WUXGA	60

Audio

Digital Audio output over HDMI connectivity
Note: VGA does not support audio output

PCB Connector

Standard HDMI Female x 1port
VGA DSub 15pin Female x 1port

Driver Support (Driver Free)

Windows	Windows 10 (32/64bit) or above
APPLE MAC	MAC OS X 10.10 (Yosemite) or above
Google Chrome	Chrome OS Version 42.x or above

Environment

Operation temp.	0 °C ～ 60 °C (32140°F)
Operation humidity	5 to 95% RH
Storage temp	20 °C ～ 70 °C (4~158°F)

Standards and Certifications

EMC	CE, FCC, VCCI, BSMI
Green	RoHS, CRoHS, WEEE

Physical Characteristics

Weight	50g (1.8oz)
Case Material	ABS (plastic)
Dimension	102(L)x66(W)x16(H) mm Tethered Cable length: 150mm

Support

Download Manual

Manual	C0V50PB Quick Installation Guide
Version	Ver. 2.0
Update	2017-07-26 17:59:45
Size	1MB
