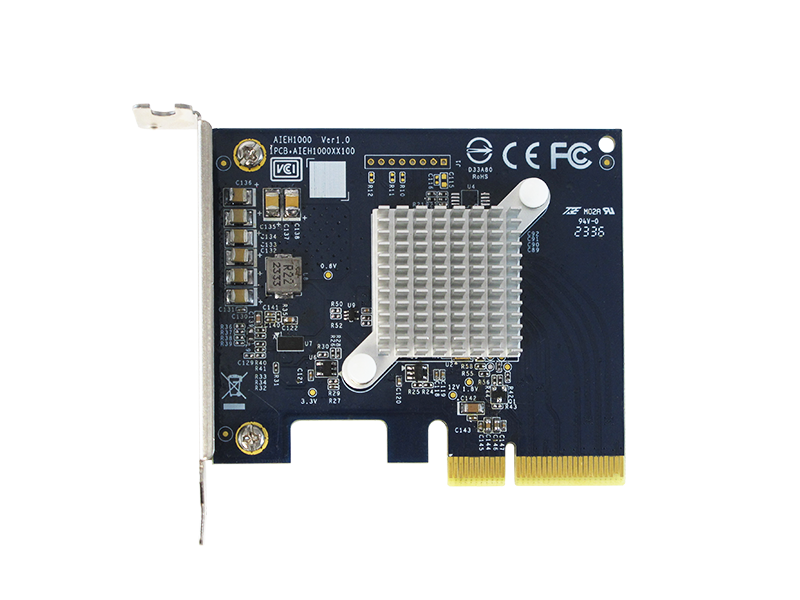

AIEH1000

PCIe x4 AI Accelerator Card
Hailo-8™ AI Processor x1
  • Compliant with PCI Express 3.0 x4
  • Supports Single PCIe Slot with low-profile Form-Factor
  • Powered by Hailo-8™ AI inference processors.
  • Supports 26 TOPS AI performance.
  • Low power consumption.
  • Supports Hailo-8™ Software Development Kit.
  • Real-time, Low latency and High-performance AI inference acceleration to Edge AI.

Introduction

SUNIX PCIe x4 AI Accelerator Card, AIEH1000, enables Hailo-8™ AI Processor into Edge computers, provides an easily deployable solution for AI developers to offload CPU loading on low-latency deep learning inference and cost-effective Edge AI computing with higher processing capabilities and lower power consumption. And this card can deliver up to 26 TOPS, enabling it to handle the most demanding computer vision applications.
AIEH1000 also enables legacy computers such as NVRs, Edge AI boxes, Industrial PCs and robots to run video-intensive, mission-critical Edge AI applications such as video analytics, traffic management, access control.

Features

SUNIX AIEH1000 V.S Intel i7-12900 Performance comparison

Today, I'd like to show you how to significantly boost the speed of computer image recognition on a PC by using the SUNIX AI Accelerator Card. Next, I will demonstrate our latest product, the AIEH1000, which is a dedicated PCIe interface AI accelerator card developed for PCs. The testing platform is the X86, equipped with an Intel i7-12900 processor. While this processor already come with AI inference acceleration capabilities, we will conduct a comparative test using SUNIX Technology's AIEH1000 AI accelerator card on the same computer to clearly showcase the performance difference. Let’s , take a look at the screen. For our image recognition tests, we are using the pre-trained YOLOv5m model. First, let's examine the performance of the CPU processor. The screen on the left displays the CPU performance results, which show that it can only process 7 frames per second (FPS), meaning it can handle just 7 frames per second. Next, let's see the results when we insert the SUNIX AIEH1000 AI Accelerator Card. Now, the test results are shown on the right side of the screen, with an average speed of 218 frames per second (FPS), which means it’s capable of processing up to 218 real-time frames per second. From the test results, it's clear that the image processing speed with the SUNIX AIEH1000 AI accelerator card is more than 30 times faster than the CPU processor. So, in the context of computer vision applications and the rapidly growing field of AI, a standard PC equipped with the SUNIX AI accelerator card can better meet the expectations of customers and the market. Moreover, our AI accelerator card can reduce the CPU load on your system, satisfying customer demands for real-time streaming of image processing and multitasking model processing. As to energy efficiency , our AIEH1000 AI accelerator card only consumes 5W in average during model inference, making it suitable for implementing edge AI applications on your PC. You can now readily adopt the SUNIX AI Accelerator Card to expand your PC business into the AI visual application market

Specifications

Board Description

Model AIEH1000
Description PCIe x4 AI Acceleration Card
AI Processors Hailo-8™ AI Processor x1
AI Performance 26 TOPs (Tera-Operations Per Second)
ResNet-50 v1( 224x224)@1,332FPS
YOLOv5m (640x640)@218FPS
Power Consumption 5W (based on model)
PCIe Interface PCI Express Gen3 x4
AI Frameworks TensorFLow, TensorFlow Lite, ONNX, Keras, Pytorch
Hailo Software Suites Dataflow Compiler (Model conversion and compilation)
HailoRT (Runtime environment and driver)
Model Zoo (Pre-trained models)
TAPPAS (Deployment framework, examples and multi-network pipelines)
OS Support Linux (e.g. Ubuntu, Yocto) & Windows (driver and API only)
Certification CE/FCC/VCCI/BSMI
Green Environment RoHS

Environment

Operation Temperature 0 to 50°C (32 to 122°F) commercial
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 79.3 x 68.5 mm
Bracket Standard 121 mm / Low profile 80mm(Optional)

Support

Download Manual

Manual AI Acceleration Card User Manual
Version Ver. 1.1
Update 2023-12-27 17:18:02
Size 1MB

Download Datasheet

Datasheet AIEH1000 Datasheet EN

Download Guide

Guide AI Acceleration Card Quick Installation Guide

Download Driver

Driver HailoRT - Windows
Version 4.15.0
Update 2023-12-08 15:04:46
Size 8.1MB
OS
Windows 10 64bit
Windows 11 64bit
Driver HailoRT - Linux - x86_64
Version 4.15.0
Update 2023-12-08 14:55:01
Size 5.8MB
OS
Linux Kernel 5.x
Driver HailoRT PCIe Driver - Linux
Version 4.15.0
Update 2023-12-08 14:38:42
Size 119.6KB
OS
Linux Kernel 5.x
