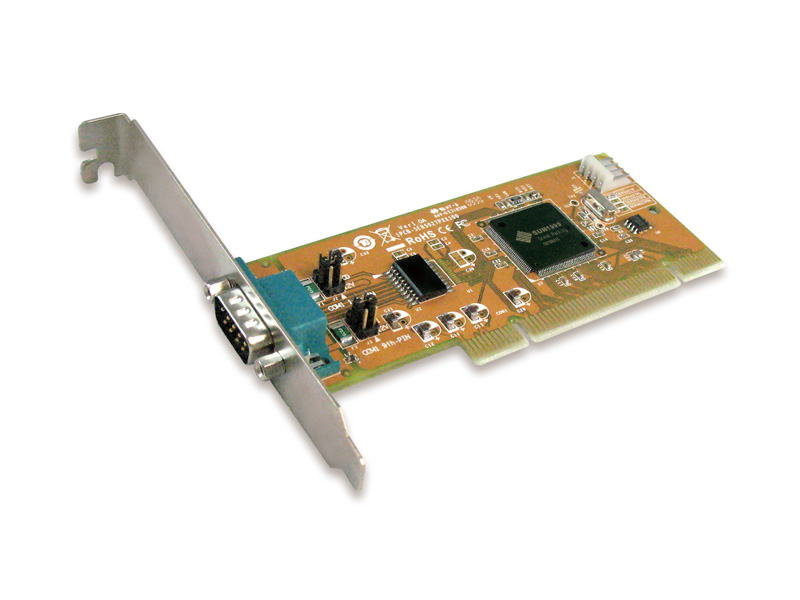

SER5027P (phased out)
1-port RS-232 Universal PCI Serial Board with Power Output
- Expands 1 independent RS-232 serial port with communication speeds up to 115.2Kbps.
- High speed SUN1989 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 2KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Introduction
SUNIX SER5027P, Universal PCI serial communication board, allows users to add or expand one RS-232 port on PC-based system. This board supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.
SUNIX SER5027P is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing this multi-port card to be installed in virtually any available PC and compatible with all major operating systems. Furthermore, SUNIX SER5027P serial card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, WinCE, Linux, making it the best and most economical solution for commercial and industrial applications.
Specifications
Description |
|
Product Description | 1-port RS-232 Universal PCI Serial Board with Power Output |
Serial Communication |
|
Interface | RS-232 |
Controller | SUNIX SUN1989 (16C950 UART Compatible) |
Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
No. of Port | 1-port |
IRQ & IO | Assigned by System |
FIFO | 128 byte (Hardware) |
Signal | TxD, RxD, RTS, CTS, DTR, DSR, GND, 5V/12V/ DCD, 5V/12V/RI |
Baud rate | 50 bps to 115.2 Kbps |
Data bit | 5,6,7,8 |
Stop bit | 1,1.5,2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, Xon/Xoff, RTS/CTS |
Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
PCB connector | DB9 Male |
Driver Support |
|
Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
Windows Server | 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
Linux | Linux 2.x / 3.x / 4.x / 5.x |
DOS | DOS |
*UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
*IBM OS/2 | WARP 3/WARP 4 |
"*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals |
|
Hardware | CE, FCC, VCCI, BSMI |
Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 • Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Environment |
|
Operation Temperature | 0 to 60°C (32 to 140°F) |
Operation Humidity | 5 to 95% RH |
Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
PCB Dimension | 120 x 51 mm |
Bracket | Standard 121 mm |
Bracket Space | 1 |
Support
Download Manual
Manual | PCI Powered RS-232 Manual-771-PCIPOW002-S01 | |
Version | Ver 3.0 | |
Update | 2017-07-25 11:40:08 | |
Size | 1.3MB |
Download Datasheet
Datasheet | SER5027P Datasheet |
Download Guide
Guide | PCI RS-232 Quick Installation Guide |
Download Driver
Driver | SUN1999Driver V9.2.2.0(WHQL) | |
Version | 9.2.2.0 | |
Update | 2021-01-05 09:27:46 | |
Size | 9.4MB | |
OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
Version | 8.2.0.0 | |
Update | 2023-01-12 13:34:21 | |
Size | 4.4MB | |
OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
Version | 8.1.5.0 | |
Update | 2023-01-11 17:08:11 | |
Size | 4.5MB | |
OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
Driver | WinCE 6.0 Driver V1.2.0.0 | |
Version | 1.2.0.0 | |
Update | 2019-07-08 17:59:12 | |
Size | 301.2KB | |
OS |
Windows CE 6.0
|
Driver | WinCE 5.0 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:02 | |
Size | 280KB | |
OS |
Windows CE 5.0
|
Driver | WinCE 4.2 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:47 | |
Size | 235.6KB | |
OS |
Windows CE 4.2
|
Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
Version | 1.0 | |
Update | 2022-05-31 17:59:20 | |
Size | 1.2MB | |
OS |
Linux Kernel 5.4 above
|
Driver | snx_V2.1.0.0 | |
Version | V2.1.0.0 | |
Update | 2024-10-29 15:49:56 | |
Size | 704.9KB | |
OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
Driver | SUNDOS1.00.00.006 | |
Version | 1.00.00.006 | |
Update | 2014-08-19 10:36:25 | |
Size | 21KB | |
OS |
DOS
|
