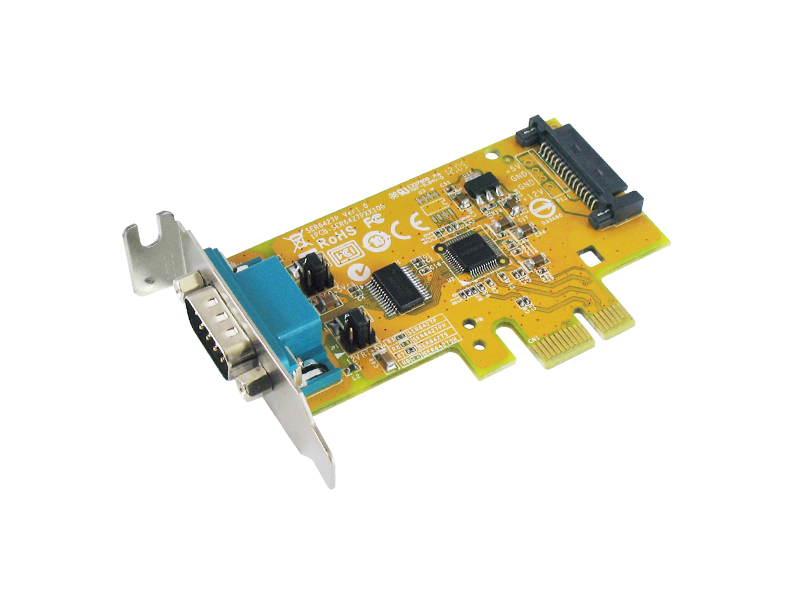

SER6427SHL

1-port RS-232 High Speed PCI Express Serial Low Profile Board with Power Output (SATA Power Socket)
  • Expands one RS-232 serial ports with communication speeds up to 921.6Kbps.
  • High reliable SUN2410 16C950 compatible native PCI Express UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
  • Build-in Serial-ATA power socket to source efficient DC power from system.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, UNIX, QNX, and DOS operation system.

Introduction

SUNIX SER6427SHL, PCI Express serial communication board, supports +5 or +12VDC of power via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

SUNIX SER6427SHL meets the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any slim size PC-based system with low profile bracket structure. The majorities of today’s motherboards does not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add one serial port to their system, allowing them to use serial devices further. This serial board has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX native PCI Express UART controller, SUN2212 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

General

Interface RS-232
Controller SUNIX SUN2212 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 1-port
FIFO 128byte Hardware
Signal DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
Baud rate 50bps ~ 921.6Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009
LinuxLinux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 83 x 52 mm
Bracket Low Profile 80 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual Powered COM PCI Express Card User Manual-771-PCIEPOW02-S01

Download Datasheet

Datasheet SER6427SHL-Datasheet-V10

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL)
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
