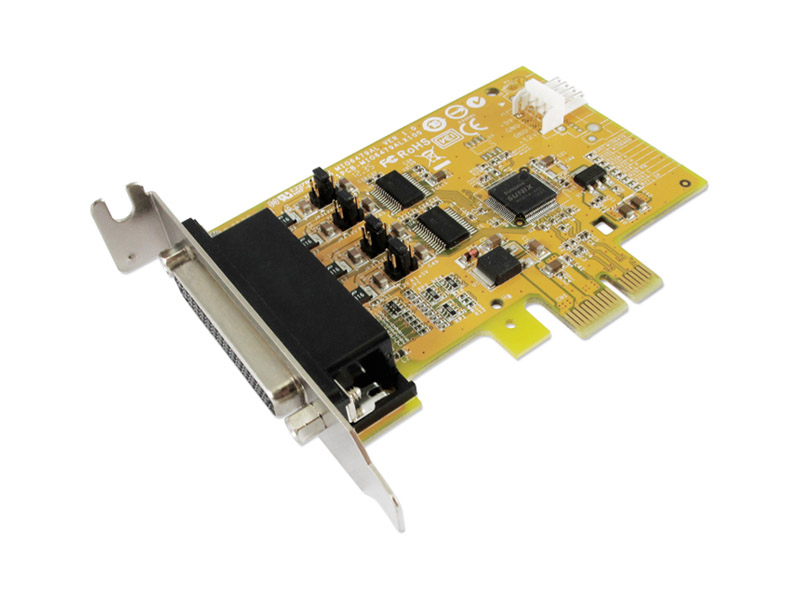

MIO6479PL

2-port RS-232 with Power Output & 1-port Parallel PCI Express Multi-I/O Low Profile Board
  • Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
  • With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Support IEEE 1284-1994 parallel port standard.
    * ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
    * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

The majority of today’s motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6479PL Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. MIO6479PL supports +5 or +12VDC power via serial COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in any slim size PC-based system. SUNIX MIO6479PL built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.

Specifications

General

Interface RS-232 and IEEE1284
Controller SUNIX SUN2410 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD/5V/12V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5VDC
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB44 Female
Cable Connector DB 9 Male

Parallel Communication

Interface IEEE1284
No. of Port 1-port
Mode SPP / ECP / EPP / BPP
FIFO 16byte Hardware
Speed Maximum 1.8MBps
PCB Connector DB44 Female
Cable Connector DB25 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009
LinuxLinux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 92 x 69 mm
Bracket MIO6479P: Standard 121 mm
MIO6479PL: Low Profile 80 mm
Bracket Space 1

Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual 771-9PCIEMIO2-S01
Version Ver 3.0
Update 2017-07-11 14:09:39
Size 6.1MB
Manual Parallel LPT Port Configuration
Version v1.0
Update 2016-01-15 17:34:30
Size 1.2MB

Download Datasheet

Datasheet MIO6479PL-Datasheet-V10

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2019-07-08 16:23:37
Size 4.8MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Embedded POSReady 7
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2019-07-08 16:26:08
Size 4.5MB
OS
Windows XP SP3 32/64 bit
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999 Linux Inbox Driver
OS
Linux Kernel 5.4 above
Driver snx_V2.0.5.0
Version 2.0.5.0
Update 2021-04-07 18:07:37
Size 57.7KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
