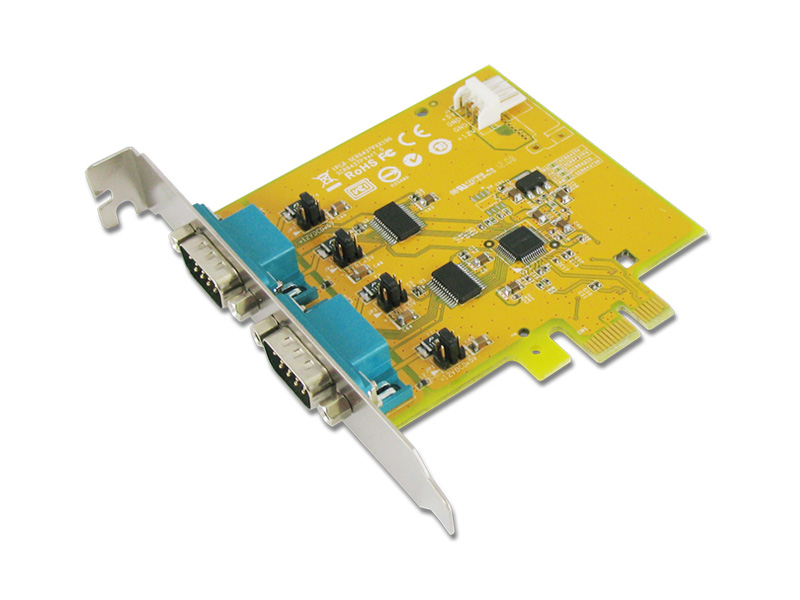

SER6437P

2-port RS-232 PCI Express Board with Power Output
  • Expands two RS-232 serial ports with communication speeds up to 115.2Kbps.
  • High reliable SUN2212 16C950 compatible native PCI Express UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, UNIX, QNX, and DOS operation system.

Introduction

SUNIX SER6437P, PCI Express serial communication board, supports +5 or +12VDC power via serial COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

SUNIX SER6437P meets the PCI Express Base Specification Revision 2.0, allows users to add or expand two RS-232 COM ports on PC-based system to use serial devices further. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system. The majorities of today’s motherboards does not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add one serial port to their system, allowing them to use serial devices further. This serial board has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX native PCI Express UART controller, SUN2212 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

Optional 5V / 12V / Signal Output over COM

For SUNIX PoweredIO Serial card, user can select +5VDC and +12VDC power output over both COM 1st or 9th pins. In addition, this board also keeps the original RS-232 signal for traditional application using. In order to make sure the power stable and convenient, the DC power sources from the system power supply over standard floppy power socket. SUNIX PoweredIO Serial card is designed for users who want to connect serial peripherals without using extra power adaptor.





Reliable Circuit Protection

Each RS-232 port is protected with a 1.1 Amp PTC (Positive Temperature Coefficient) resettable fuse. The PTC may temporarily allow more that 1.1 Amp to be drained. Typically, a PTC will shut off after approximately 15 seconds drawing more than 1.9 Amp. The PTC will turn off the power for each individual port if an unusual overload is sustained. Besides in order to satisfy kinds of serial device power requirements, each RS-232 port can support 1100mA output in the PCB circuit design.




Specifications

General

Interface RS-232
Controller SUNIX SUN2212 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD/5V/12V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5VDC
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009
LinuxLinux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 86 x 88 mm
Bracket Standard 121 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual Powered COM PCI Express Card User Manual-771-PCIEPOW02-S01

Download Datasheet

Datasheet SER6437P-Datasheet-V10

Download Guide

Guide PCI-E Powered RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL)
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V9.2.0.0(WHQL)
Version 9.2.0.0
Update 2020-12-10 11:20:23
Size 9.3MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows Server 2019 64bit
Driver SUN1999Driver V9.0.6.0 (WHQL)
Version 9.0.6.0
Update 2020-11-02 11:15:04
Size 9.3MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2019-07-08 16:23:37
Size 4.8MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Embedded POSReady 7
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2019-07-08 16:26:08
Size 4.5MB
OS
Windows XP SP3 32/64 bit
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999 Linux Inbox Driver
OS
Linux Kernel 5.4 above
Driver snx_V2.0.5.0
Version 2.0.5.0
Update 2020-03-09 16:09:46
Size 57.6KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.3
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
