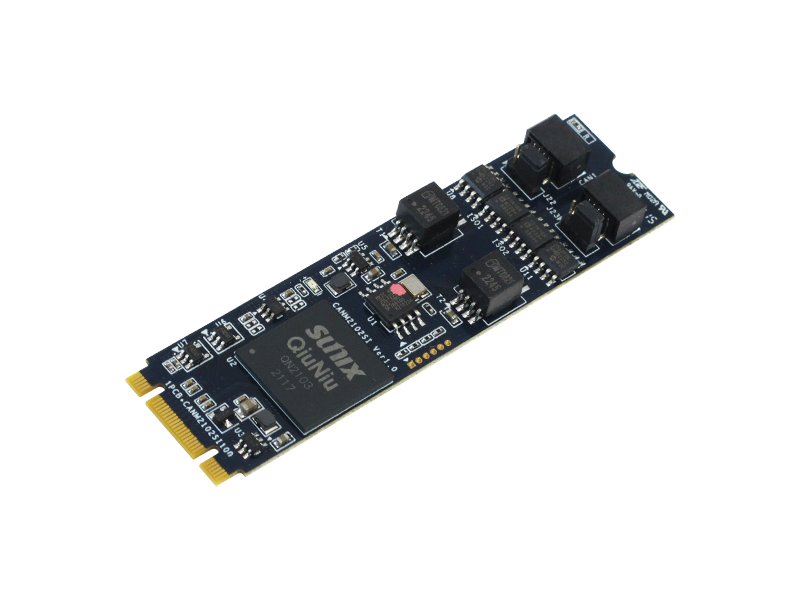

CAN-M2102IR

Industrial M.2 2280 to 2-port CAN FD Card
With Surge and Isolation
90˚ Wafer connector
Features:
  • Suitable for M.2 2280 Key-M or Key-B based on PCI Express communication
  • Equipped with high reliable SUNIX CAN FD controller
  • Complies with CAN specifications 2.0 and FD
  • CAN FD bit rates for the data field up to 8 Mbit/s
  • Isolation on the each CAN channel up to 500V
  • Surge protection up to 1KV
  • Plug-n-Play, I/O address and IRQ assigned by system
  • Support Windows and Linux SocketCAN drivers

Introduction

SUNIX CAN-M2102IR, industrial M.2 to 2-port high speed CAN FD communication card, is designed for Edge Computer that enables CAN FD and CAN bus data communication capability for electric vehicle industry application. This board not only built-in SUNIX Digital-I/O controller but also built with many of SUNIX advanced features and technologies. In addition, SUNIX provides Windows and SocketCAN drivers, allowing users to use this card on Windows and Linux operating systems. SUNIX CAN-M2102IR card enriches CAN 2.0/ CAN FD interface expandable capacity; it is the best CAN bus communication solution for electric vehicle and AVG/AMR, IVI (In-Vehicle Infotainment) applications.

Specifications

Board Communication

Interface M.2 PCIe
Controller SUNIX CAN FD Controller
BUS PCI Express 2.0 x 1(single lane) M.2 2280 Type, 59-pin Key B+M Male
IRQ & IO Assigned by System
ESD Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge
Isolation on each channel 500V
Surge 1KV

CAN Communication

Type CAN 2.0 / CAN FD
Channel 2-channel
Arbitration bit rate 1 Mbit/s
Data bitrate 8 Mbit/s
Isolation 500 VDC
Pin Define CAN H, CAN L, GND
Termination 120Ω configured by jumper setting
PCB Connector 2 pcs x WAFER 2x5P pitch 1.0mm (90°) Right angle connector

Software Support

Microsoft

Windows 10 (X86/X64) / 11

Linux SocketCAN

Linux Kernel 5.x / 6.x

Regulatory Approvals

Hardware

CE / FCC / VCCI / BSMI

Declaration

Green Product

RoHS, WEEE

Environment

Operation Temperature

-20 to 70°C (-4 to 158°F)

Operation Humidity

5 to 95% (non-condensing)

Storage Temperature

-20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension

22 x 80 mm



Accessories

Including Accessories

D-Sub 9-pin male with nuts on cable
  • Part No. 1WDB-09M03010W100A
  • 30cm
  • 2 pcs

Support

Download Manual

Manual SUNCAN FD Series User Manual
Version Ver. 1.2
Update 2024-10-08 17:19:33
Size 6.3MB

Download Datasheet

Datasheet CAN-M2102IR Datasheet EN

Download Guide

Guide Industrial CANFD Control Card QIG (SUNCAN)

Download Driver

Driver Windows SDC IO Manager V1.0.2.0_20240821
Version 1.0.2.0
Update 2024-09-11 16:13:54
Size 70.8MB
OS
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows Server 2022 64bit
API Windows SDC API V1.0.2.0_20240913
Version 1.0.2.0
Update 2024-09-13 15:58:18
Size 26.4MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Driver Linux SDC Expansion Board Driver V2.1.0.0_20240820
Version V2.1.0.0
Update 2024-08-20 10:44:49
Size 10.3MB
OS
Linux Kernel 6.x
Linux Kernel 5.x
Linux Kernel 4.11 above
