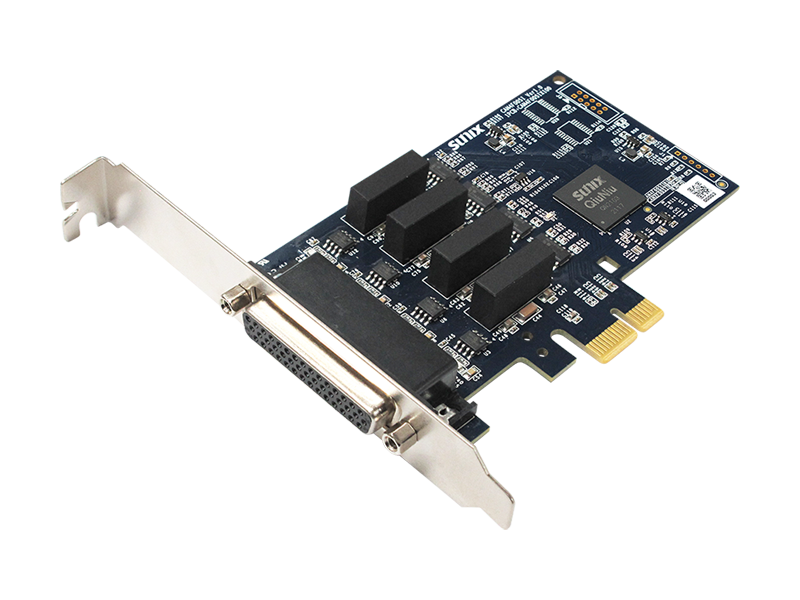

CAN4F00SI

PCIe to 4-port Isolated CAN FD
Communication Card
Features:
  • Designed to meet PCI Express Base Specification Revision 2.1.
  • Equipped with high reliable SUNIX QiuNiu controller.
  • Complies with CAN specifications 2.0B and FD
  • CAN FD bit rates for the data field up to 8 Mbit/s
  • Isolation on the each CAN channel up to 2.5KV
  • Surge protection up to 2KV
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Support Windows and Linux SocketCAN drivers

Introduction

SUNIX CAN4F00SI, industrial PCIe to 4-port isolated high speed CAN FD communication card, is designed for Edge Computer that enables CAN FD and CAN bus data communication capability for electric vehicle industry application. This board not only built-in SUNIX CAN FD controller, QiuNiu, but also built with many of SUNIX advanced features and technologies. In addition, SUNIX provides Windows and SocketCAN drivers, allowing users to use this card on Windows and Linux operating systems. SUNIX CAN4F00SI card enriches CAN 2.0/ CAN FD interface expandable capacity; it is the best CAN bus communication solution for electric vehicle and AVG/AMR applications.

Specifications

Board Communication

Interface PCI Express
Controller SUNIX QiuNiu Controller
BUS PCI Express Gen2 x 1 (single lane)
IRQ & IO Assigned by System
ESD Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge

CAN Communication

Type CAN 2.0 / CAN FD
Channel 4-channel
Arbitration bit rate 1 Mbit/s
Isolation 2500 VDC
Pin Define CAN H, CAN L, GND
Data bit rate 8 Mbit/s
Termination 120Ω Configured by Software
PCB Connector DB44 Female

Software Support

Microsoft

Windows 10 (X86/X64) / 11

Linux SocketCAN

Linux Kernel 5.x / 6.x

Regulatory Approvals

Hardware

CE / FCC / VCCI / BSMI

Declaration

Green Product

RoHS, WEEE

Environment

Operation Temperature

-20 to 70°C (-4 to 158°F)

Operation Humidity

5 to 95% (non-condensing)

Storage Temperature

-20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension

110 x 68.5 mm

Bracket

Full Height 120 mm / Low Profile 79.2mm

Bracket Space

1



Accessories

Including Accessories

DB44 to 4-port DB9 Male Connection Cable
  • 40 cm
  • Part No.: 1WDB-44M04009D4003
  • 1 pcs.
Brackets Standard & Low Profile
  • Standard 121 mm & Low Profile 79.2mm
  • Bracket Space: 1

Support

Download Manual

Manual CAN FD Series User Manual
Version Ver. 1.1
Update 2024-01-22 11:21:15
Size 1.9MB

Download Datasheet

Datasheet CAN4F00SI Datasheet EN

Download Guide

Guide Industrial CANFD Control Card QIG (Universal)

Download Driver

Driver Windows SDC IO Manager V1.0.1.0_20240703
Version 1.0.1.0
Update 2024-07-05 11:30:35
Size 70.7MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
API Windows SDC API V1.0.1.0_20240906
Version 1.0.1.0
Update 2024-09-09 09:35:00
Size 24.2MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Driver Linux SDC Expansion Board Driver V2.1.0.0_20240820
Version V2.1.0.0
Update 2024-08-20 10:44:49
Size 10.3MB
OS
Linux Kernel 6.x
Linux Kernel 5.x
Linux Kernel 4.11 above

CAN4F00SI

PCIe to 4-port Isolated CAN FD
Communication Card
Features:
  • Designed to meet PCI Express Base Specification Revision 2.1.
  • Equipped with high reliable SUNIX QiuNiu controller.
  • Complies with CAN specifications 2.0B and FD
  • CAN FD bit rates for the data field up to 8 Mbit/s
  • Isolation on the each CAN channel up to 2.5KV
  • Surge protection up to 2KV
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Support Windows and Linux SocketCAN drivers

Introduction

SUNIX CAN4F00SI, industrial PCIe to 4-port isolated high speed CAN FD communication card, is designed for Edge Computer that enables CAN FD and CAN bus data communication capability for electric vehicle industry application. This board not only built-in SUNIX CAN FD controller, QiuNiu, but also built with many of SUNIX advanced features and technologies. In addition, SUNIX provides Windows and SocketCAN drivers, allowing users to use this card on Windows and Linux operating systems. SUNIX CAN4F00SI card enriches CAN 2.0/ CAN FD interface expandable capacity; it is the best CAN bus communication solution for electric vehicle and AVG/AMR applications.

Specifications

Board Communication

Interface PCI Express
Controller SUNIX QiuNiu Controller
BUS PCI Express Gen2 x 1 (single lane)
IRQ & IO Assigned by System
ESD Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge

CAN Communication

Type CAN 2.0 / CAN FD
Channel 4-channel
Arbitration bit rate 1 Mbit/s
Isolation 2500 VDC
Pin Define CAN H, CAN L, GND
Data bit rate 8 Mbit/s
Termination 120Ω Configured by Software
PCB Connector DB44 Female

Software Support

Microsoft

Windows 10 (X86/X64) / 11

Linux SocketCAN

Linux Kernel 5.x / 6.x

Regulatory Approvals

Hardware

CE / FCC / VCCI / BSMI

Declaration

Green Product

RoHS, WEEE

Environment

Operation Temperature

-20 to 70°C (-4 to 158°F)

Operation Humidity

5 to 95% (non-condensing)

Storage Temperature

-20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension

110 x 68.5 mm

Bracket

Full Height 120 mm / Low Profile 79.2mm

Bracket Space

1



Accessories

Including Accessories

DB44 to 4-port DB9 Male Connection Cable
  • 40 cm
  • Part No.: 1WDB-44M04009D4003
  • 1 pcs.
Brackets Standard & Low Profile
  • Standard 121 mm & Low Profile 79.2mm
  • Bracket Space: 1

Support

Download Manual

Manual CAN FD Series User Manual
Version Ver. 1.1
Update 2024-01-22 11:21:15
Size 1.9MB

Download Datasheet

Datasheet CAN4F00SI Datasheet EN

Download Guide

Guide Industrial CANFD Control Card QIG (Universal)

Download Driver

Driver Windows SDC IO Manager V1.0.1.0_20240703
Version 1.0.1.0
Update 2024-07-05 11:30:35
Size 70.7MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
API Windows SDC API V1.0.1.0_20240906
Version 1.0.1.0
Update 2024-09-09 09:35:00
Size 24.2MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Driver Linux SDC Expansion Board Driver V2.1.0.0_20240820
Version V2.1.0.0
Update 2024-08-20 10:44:49
Size 10.3MB
OS
Linux Kernel 6.x
Linux Kernel 5.x
Linux Kernel 4.11 above
