IPC-B2108
Industrial 8-port RS-422/485 PCI/104
- Expands 8 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps
- High reliability SUN1999 16C950 compatible UART controller on-board.
- Compliance with PCI/104 specifications
- Ideal for embedded computing applications
- RS-422/485 auto detect and switching technology–jumper and software free
- AHDC/CSTM technology for collision free communication
- Ultra low power consumption design for Green Environment.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval
- Support Microsoft Windows, Linux, and DOS
Introduction

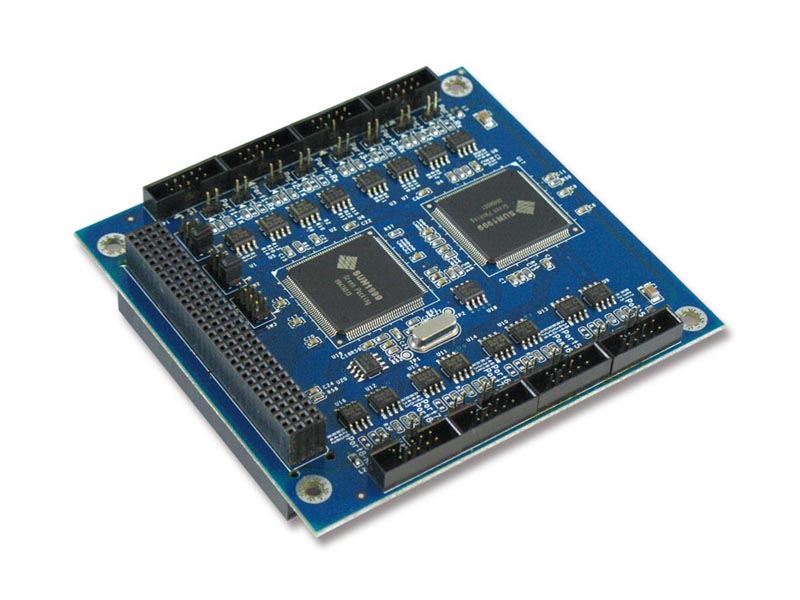

SUNIX IPC-B2108, industrial standard PCI/104 serial communication card, allows users to expand eight RS-422/485 ports on PC-based system. It is compatible with PCI/104 BUS specifications, allowing it to be installed in virtually any embedded PC-based systems. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDCTM technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
Features
Specifications
Description |
|
| Product Description | 8 ports RS-422 / 485 PCI/104 |
Serial Communication |
|
| Interface | RS-422 / 485 |
| Controller | SUNIX SUN1999 (16C950 UART Compatible) |
| Bus | PCI / 104 |
| No. of Port | 8-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal |
RS-422: TxD+, TxD-, RxD+, RxD-, GND 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND 2-wire RS-485: Data+, Data-, GND |
| Baud rate | 50 bps to 921.6Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | Xon/Xoff (software) |
| Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB connector | 5 x 2 Pin Header |
| Cable Connector | 5 x 2 Pin Header to DB9 Male |
Driver Support |
|
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
| Windows Server | 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.x / 6.x |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals |
|
| Hardware | CE, FCC, VCCI, BSMI |
| Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 • Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Environment |
|
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
| PCB Dimension | 96.5 x 90 mm |
Accessories
Including Accessories
5x2 Pin Header (Pitch 2.0mm) to 1-port DB9 Male Connection Cable
- 30 cm
- Part No.: 1WDB-09M02610F1E01
Optional Accessories
DB9 Female to 5-pin Terminal Block Adapter
- Part No.: DB9FTOTB50410
Support
Download Manual
| Manual | PCI RS-422485 Manual-771-PCI422002-S01 |
|
| Version | Ver 3.0 | |
| Update | 2017-07-24 14:24:09 | |
| Size | 1.5MB |
Download Datasheet
| Datasheet | IPC-B2108-Datasheet-Ver10 |
|
Download Guide
| Guide | PCI RS-422485 Quick Installation Guide |
|
Download Driver
| Driver | SUN1999Driver V10.2.8.0 (WHQL) | |
| Version | 10.2.8.0 | |
| Update | 2024-10-18 15:46:26 | |
| Size | 10.3MB | |
| OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
| Driver | SUN1999Driver V9.2.2.0(WHQL) | |
| Version | 9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
| Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
| Version | 8.2.0.0 | |
| Update | 2023-01-12 13:34:21 | |
| Size | 4.4MB | |
| OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
| Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
| Version | 8.1.5.0 | |
| Update | 2023-01-11 17:08:11 | |
| Size | 4.5MB | |
| OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
| Driver | WinCE 6.0 Driver V1.2.0.0 | |
| Version | 1.2.0.0 | |
| Update | 2019-07-08 17:59:12 | |
| Size | 301.2KB | |
| OS |
Windows CE 6.0
|
| Driver | WinCE 5.0 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:02 | |
| Size | 280KB | |
| OS |
Windows CE 5.0
|
| Driver | WinCE 4.2 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:47 | |
| Size | 235.6KB | |
| OS |
Windows CE 4.2
|
| Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
| Version | 1.0 | |
| Update | 2022-05-31 17:59:20 | |
| Size | 1.2MB | |
| OS |
Linux Kernel 5.4 above
|
| Driver | snx_V2.1.0.0 | |
| Version | V2.1.0.0 | |
| Update | 2024-10-29 15:49:56 | |
| Size | 704.9KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
| API | Hardware Library for Windows | |
| Version | 20110623 | |
| Update | 2022-03-25 11:03:58 | |
| Size | 3.7MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
|
| API | Hardware Library for Linux (snx module) | |
| Version | 1.3.1.0 | |
| Update | 2024-10-16 10:36:59 | |
| Size | 750.9KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
| Driver | SUNDOS1.00.00.006 | |
| Version | 1.00.00.006 | |
| Update | 2014-08-19 10:36:25 | |
| Size | 21KB | |
| OS |
DOS
|
