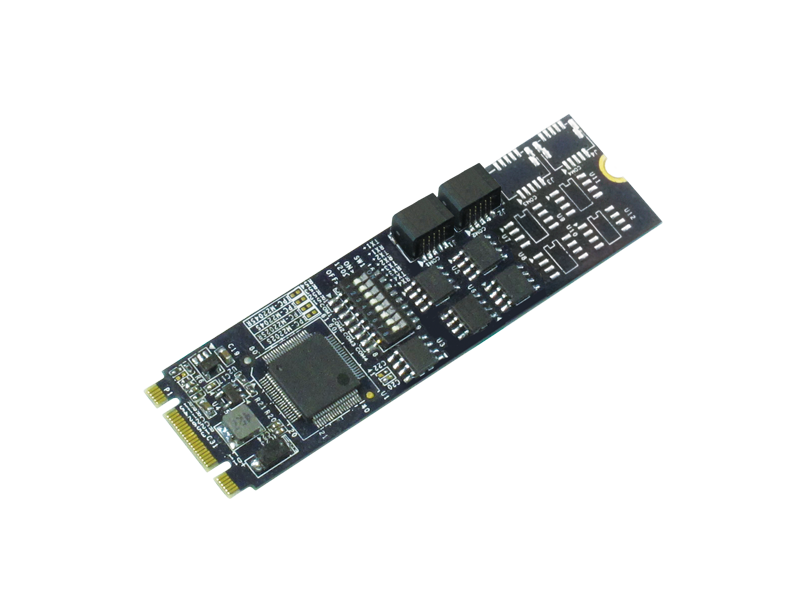

IPC-M2202SR
Industrial 2 ports RS-422/485 M.2 (2280 Type, Key B+M) with Surge PCI-Express Serial Card (90˚ Wafer connector)
- Suitable for M.2 slot with Key-M or Key-B based on PCI Express communication.
- Expands 2 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- RS-422 and RS-485 auto detect and switching technology by software settings.
- Optional 120ohms termination resistor for each RS-485 COM port by jumper settings.
- AHDC/CS™ technology for collision free communication.
- On-chip hardware auto flow control to guarantee no data loss.
- Ultra low power consumption design for Green Environment.
- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
- 2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.
Introduction
SUNIX IPC-M2202SR, Industrial 2 ports RS-422/485 with Surge PCI-Express Serial M.2 Card, allows users to expand two RS-422/485 ports on M.2 with Key-M or Key-B based PC-based system. The RS-422/458 COM ports can be attached to a housing or slot bracket. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. SUNIX IPC-M2202SR board is provided with 2KV IEC6100-4-5 Level 3 Surge Suppressor and ±15KV IEC61000-4-2 ESD Discharge Transceiver. Besides, board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
Specifications
Serial Communication
| Interface | RS-422/485 | Baud rate | 50bps ~921.6Kbps |
| Controller |
SUNIX SUN2410 (16C950 UART Compatible) |
Stop bit | 1, 1.5, 2 |
| BUS | PCI Express 2.0 x 1(single lan) M.2 2280 Type, 59-pin Key B+M Male | Parity | even, odd, none, mark, space |
| No. of Port | 2-port | Flow Control | Xon/Xoff (software) |
| IRQ & IO | Assigned by System | FIFO | 128byte Hardware |
| Signal |
RS-422: TxD+, TxD-, RxD+, RxD-, GND 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND 2-wire RS-485: Data+, Data-, GND |
||
| Protection |
±15KV ESD IEC-61000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±4KV ESD IEC61000-4-2 Level 2 Line-to-Linee 2KV Surge IEC61000-4-5 Level 3 Surge Immunity Test |
||
| PCB Connector | 2 pcs x WAFER 2x5P pitch 1.0mm (90°) | ||
| Cable | 2pcs x serial RS-422/485 D-Sub 9 pin male with nuts on cable | ||
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
| Windows Server | 2000/2003/2008/2012/2016 (X86/X64) |
| Windows Embedded | Windows CE5.0/6.0/XP Embedded/POS Ready/Embedded System |
| Linux | Linux 2.x / 3.x / 4.x / 5.x / 6.x |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003/2008/2012/2016 (X86/X64) |
Environment
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 22x 80 mm |
Accessories
Including Accessories
Serial RS-422/485 D-Sub 9-pin male with nuts on cable
- Part No. 1WDB-09M03010W100A
- 30cm
- 2 pcs
Optional Accessories
DB9 Female to 5-pin Terminal Block Adapter
- Part No.: DB9FTOTB50410
Support
Download Manual
| Manual | M.2 PCI Express RS-422/485 Communication Board |
|
| Version | Ver. 1.0 | |
| Update | 2019-03-06 14:02:08 | |
| Size | 1.8MB |
| Manual | RS-422-485 Series User Manual |
|
| Version | Ver. 1.0 | |
| Update | 2022-11-28 14:45:44 | |
| Size | 1.6MB |
Download Datasheet
| Datasheet | IPC-M2202SR Datasheet |
|
Download Guide
| Guide | M.2 PCI Express RS-422/485 Communication Board Quick Installation Guide |
|
| Guide | RS-422/485 Control Card QIG (Universal) |
|
Download Driver
| Driver | SUN1999Driver V10.2.8.0 (WHQL) | |
| Version | 10.2.8.0 | |
| Update | 2024-10-18 15:46:26 | |
| Size | 10.3MB | |
| OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 11 IoT Enterprise 24H2
Windows 11 IoT Enterprise LTSC 2024
Windows 11 Enterprise LTSC 2024
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
| Driver | SUN1999Driver V9.2.2.0(WHQL) | |
| Version | 9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
| Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
| Version | 8.2.0.0 | |
| Update | 2023-01-12 13:34:21 | |
| Size | 4.4MB | |
| OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
| Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
| Version | 8.1.5.0 | |
| Update | 2023-01-11 17:08:11 | |
| Size | 4.5MB | |
| OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
| Driver | WinCE 6.0 Driver V1.2.0.0 | |
| Version | 1.2.0.0 | |
| Update | 2019-07-08 17:59:12 | |
| Size | 301.2KB | |
| OS |
Windows CE 6.0
|
| Driver | WinCE 5.0 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:02 | |
| Size | 280KB | |
| OS |
Windows CE 5.0
|
| Driver | WinCE 4.2 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:47 | |
| Size | 235.6KB | |
| OS |
Windows CE 4.2
|
| Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
| Version | 1.0 | |
| Update | 2022-05-31 17:59:20 | |
| Size | 1.2MB | |
| OS |
Linux Kernel 5.4 above
|
| Driver | snx_V2.1.0.0 | |
| Version | V2.1.0.0 | |
| Update | 2024-10-29 15:49:56 | |
| Size | 704.9KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
| API | Hardware Library for Windows | |
| Version | 20110623 | |
| Update | 2022-03-25 11:03:58 | |
| Size | 3.7MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
|
| API | Hardware Library for Linux (snx module) | |
| Version | 1.3.1.0 | |
| Update | 2024-10-16 10:36:59 | |
| Size | 750.9KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
| Driver | SUNDOS1.00.00.006 | |
| Version | 1.00.00.006 | |
| Update | 2014-08-19 10:36:25 | |
| Size | 21KB | |
| OS |
