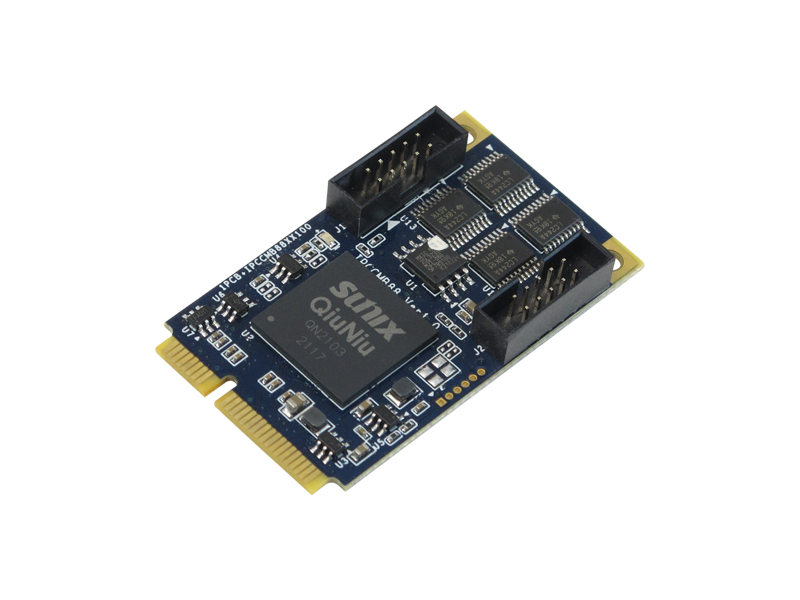

IPC-C4884I
Mini PCIe Industrial I/O Control Card
8-ch Isolated Digital Input
8-ch Isolated Digital Output
Board Level:
Digital I/O Communication:
- Suitable for Mini PCIe slot on PCI Express communication.
- Designed to meet PCI Express Base Specification Revision 2.1.
- With high reliable SUNIX QiuNiu Digital-I/O controller.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Ultra low power consumption (<1.5W) design for green environment and industrial application.
- High quality electronic components, low impedance and high stability ensure product quality and reliability.
- Support Microsoft Windows 10/11 and Linux with C, C# and Python programming language sample code.
- Capable of engaging with EdgeX device C SDK for EdgeX service development.
- Certified by CE, FCC, RoHS, and Microsoft approvals.
- With low profile bracket extension board to meet various of Edge PC chassis.
Digital I/O Communication:
-
Expands isolated four (8) digital input channels with features for all channels.
- Support both NPN & PNP devices
- Support both dry and wet contact connections
- With digital filter for noise reduction
- Built-in 32-bit counter for all digital in channels
- Expands isolated four (8) NPN type digital output channels with initial value (Booting & Restart) protection.
- Each channel built-in 2.5KV isolation protection for signal and power, allowing the input signals to be completely floated so as to prevent ground loops.
Introduction
SUNIX IPC-C4884I, industrial isolated digital I/O Mini PCIe card, is designed for PC-based IoT Gateway or Edge Computer that enables data acquisition and I/O controls in industrial automation. This board built-in SUNIX Digital-I/O controller, QiuNiu, and also built with many of SUNIX advanced features and technologies. In addition, SUNIX provides API software and SDK library, allowing users to program under Windows 10/11 and Linux operating systems. The software package includes a dynamic library.dll, C, C# and Python programming language sample code, making it easier to develop application software. SUNIX IPC-C4884I board enriches digital I/O expandable capacity with cost-efficient design; it is the best digital I/O control solution for lite-industrial applications.
Specifications
Board Communication
| Interface | Mini PCI Express |
| Controller | SUNIX QiuNiu Digital-I/O controller |
| BUS | PCI Express Gen2 x 1 (single lan) |
| IRQ & IO | Assigned by System |
| Protection |
±15KV IEC6000-4-2 Air Discharge ±8KV IEC61000-4-2 Contact Discharge |
Digital Input Communication
| Type | NPN & PNP |
| Channel | 8-channel |
| Dry Contact |
Logic Level 0: Open; Logic Level 1: Close to GND |
| Wet Contact |
Logic Level 0: 0 to 3VDC; Logic Level 1: 10 to 50VDC |
| Input Resistance | 10KΩ |
| Isolation | 2500 VDC |
| Frequency | Input Range 2KHz max |
| Pin Define | DI1~DI8, COM, GND |
| Counter | 32-bit counter for all channel |
| Interrupt Mode | Event trigger (Rising Edge, Falling Edge, Both modes) & polling for all channels |
| Digital Filter | Digital filter for noise reduction |
| PCB Connector | Terminal Block on extension board |
Digital Output Communication
| Type | NPN |
| Channel | 8-channel |
| Voltage Range | 3.5 to 40VDC |
| Current | 500mA per Channel |
| Isolation | 2500 VDC |
| Pin Define | DO1~DO8, PWR, GND |
| Initial Protection | Load preset output value automatically during booting and restart |
| PCB Connector | Terminal Block on extension board |
Software Support
| OS |
Windows 10 (X86/X64), Windows 11, Linux |
| SDK |
Library: Supporting C, C++, C# and Python languages.
C, C# and Python sample code available
|
|
Third Party Software support |
Capable of engaging with EdgeX device C SDK for EdgeX service development. |
Regulatory Approvals
| Hardware |
CE / FCC / VCCI / BSMI |
Declaration
| Green Product |
RoHS, CRoHS, WEEE |
Environment
| Operation Temperature |
-20 to 70°C (-4 to 158°F) |
| Operation Humidity |
5 to 95% (non-condensing) |
|
Storage Temperature |
-20 to 70°C (-4 to 158°F) |
Dimension
| PCB Dimension |
Mini PCIe card 50.95x30mm / Extension board 64 x 45 mm |
| Bracket |
Low Profile 79.2mm |
|
Bracket Space |
2 |
Accessories
Including Accessories
Extension board w/ low profile bracket
- Low Profile Bracket(on board) 79.2mm
Extension board w/ low profile bracket
- Low Profile Bracket(on board) 79.2mm
DIO Terminal block
- Part Number: 1PCP-TF51201M00001
DIO Ribbon Cable
- Part Number: 1WRL-C014C22052000
- Length: 15cm for Extension Board
DIO Standard Bracket
- Standard 121 mm
- Bracket Space: 1
Support
Download Manual
| Manual | DIO Series User Manual |
|
| Version | Ver. 1.0 | |
| Update | 2023-02-02 10:21:03 | |
| Size | 1.5MB |
Download Datasheet
| Datasheet | IPC-C4884I Datasheet EN |
|
Download Guide
| Guide | Industrial Digital I/O Card Quick Installation Guide |
|
Download Driver
| Driver | Windows IO Expansion Card Driver V1.3.2.0 (WHQL) - 2022031401 | |
| Version | V1.3.2.0 | |
| Update | 2022-03-15 13:47:31 | |
| Size | 4.6MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
|
| API | Windows SDC API V1.0.4.0 | |
| Version | Ver 1.0.4.0 | |
| Update | 2022-06-28 10:01:32 | |
| Size | 4.7MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
|
| Driver | Linux IO Expansion Card Driver V2.0.0.0 | |
| Version | V2.0.0.0 | |
| Update | 2022-11-15 15:35:09 | |
| Size | 5.9MB | |
| OS |
Linux Kernel 5.4
|
