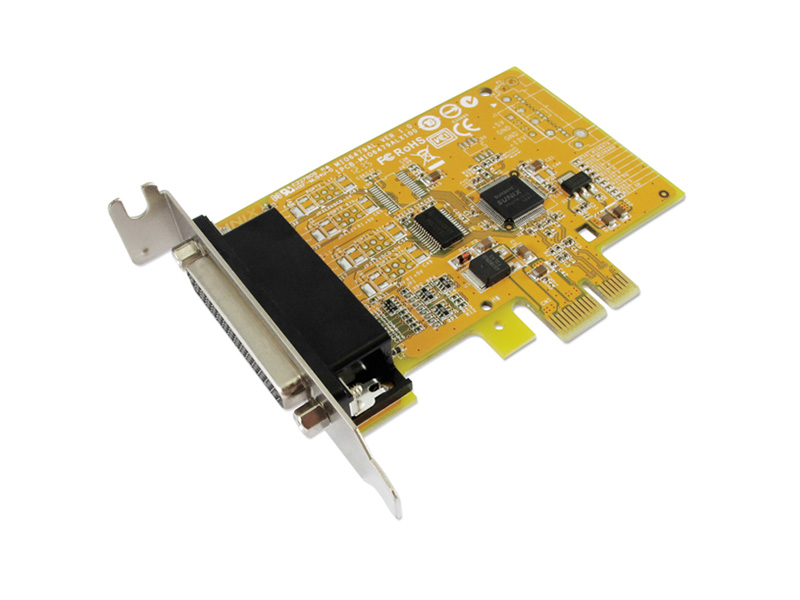

MIO6469HL
1-port High Speed RS-232 & 1-port Parallel High Speed PCI Express Low Profile Multi-I/O Board
- Expands 1-port RS-232 COM and 1-port IEEE1284 LPT on system.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
-
Support IEEE 1284-1994 parallel port standard.
(Enhance Capacity Port) / * EPP(Enhance Parallel Port)
(Standard Parallel Port) / * BPP (Bi-direction Parallel Port). - Plug-n-Play, I/O address and IRQ assigned by system.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Introduction
The majority of today’s motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6469HL Multi I/O board, users can expand one RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any slim size PC system with low profile bracket structure. SUNIX MIO6469HL built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.
Specifications
General
Interface | RS-232 and IEEE1284 |
Controller | SUNIX SUN2410 (16C950 UART Compatible) |
BUS | PCI Express Spec 2.0, Single-Lane (x1) |
IRQ & IO | Assigned by System |
Serial Communication
Interface | RS-232 |
No. of Port | 1-port |
FIFO | 128byte Hardware |
Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
Baud rate | 50bps ~ 921.6Kbps |
Stop bit | 1, 1.5, 2 |
Parity | even, odd, none, mark, space |
Flow Control | None, Xon/Xoff, RTS/CTS |
Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
PCB Connector | DB44 Female |
Cable Connector | DB 9 Male |
Parallel Communication
Interface | IEEE1284 |
No. of Port | 1-port |
Mode | SPP / ECP / EPP / BPP |
FIFO | 16byte Hardware |
Speed | Maximum 1.8MBps |
PCB Connector | DB44 Female |
Cable Connector | DB25 Female |
Driver Support
Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
Windows Server | 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
Linux | Linux 2.x / 3.x / 4.x / 5.x |
DOS | DOS |
*UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
*IBM OS/2 | WARP 3/WARP 4 |
"*" marked as a project supported operating system. Please contact us if you have any further need. |
Regulatory Approvals
Hardware | CE, FCC, VCCI, BSMI |
Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 • Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Environment
Operation Temperature | 0 to 60°C (32 to 140°F) |
Operation Humidity | 5 to 95% RH |
Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
PCB Dimension | 92 x 69 mm |
Bracket | Low Profile 80 mm |
Bracket Space | 1 |
Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
Accessories
Including Accessories
- 40cm
- Part Number: 1WDB-44M04009D1A10
- 1 pcs
Optional Accessories
- Part No.: 5013-PCIFX1C00-QCN
Support
Download Manual
Manual | 771-9PCIEMIO2-S01 | |
Version | Ver 3.0 | |
Update | 2017-07-11 14:09:39 | |
Size | 6.1MB |
Manual | Parallel LPT Port Configuration | |
Version | v1.0 | |
Update | 2016-01-15 17:34:30 | |
Size | 1.2MB |
Download Datasheet
Datasheet | MIO6469HL-Datasheet-V10 |
Download Driver
Driver | SUN1999Driver V10.2.6.0 (WHQL) | |
Version | 10.2.6.0 | |
Update | 2024-08-22 11:25:38 | |
Size | 10.2MB | |
OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
Driver | SUN1999Driver V10.2.5.0(WHQL) | |
Version | 10.2.5.0 | |
Update | 2024-01-11 13:26:56 | |
Size | 10.2MB | |
OS |
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
Driver | SUN1999Driver V9.2.2.0(WHQL) | |
Version | 9.2.2.0 | |
Update | 2021-01-05 09:27:46 | |
Size | 9.4MB | |
OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
Version | 8.2.0.0 | |
Update | 2023-01-12 13:34:21 | |
Size | 4.4MB | |
OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
Version | 8.1.5.0 | |
Update | 2023-01-11 17:08:11 | |
Size | 4.5MB | |
OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
Driver | WinCE 6.0 Driver V1.2.0.0 | |
Version | 1.2.0.0 | |
Update | 2019-07-08 17:59:12 | |
Size | 301.2KB | |
OS |
Windows CE 6.0
|
Driver | WinCE 5.0 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:02 | |
Size | 280KB | |
OS |
Windows CE 5.0
|
Driver | WinCE 4.2 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:47 | |
Size | 235.6KB | |
OS |
Windows CE 4.2
|
Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
Version | 1.0 | |
Update | 2022-05-31 17:59:20 | |
Size | 1.2MB | |
OS |
Linux Kernel 5.4 above
|
Driver | snx_V2.0.9.0 | |
Version | V2.0.9.0 | |
Update | 2024-02-23 11:51:30 | |
Size | 703.5KB | |
OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
|
Driver | SUNDOS1.00.00.006 | |
Version | 1.00.00.006 | |
Update | 2014-08-19 10:36:25 | |
Size | 21KB | |
OS |
DOS
|
