MIO5499H

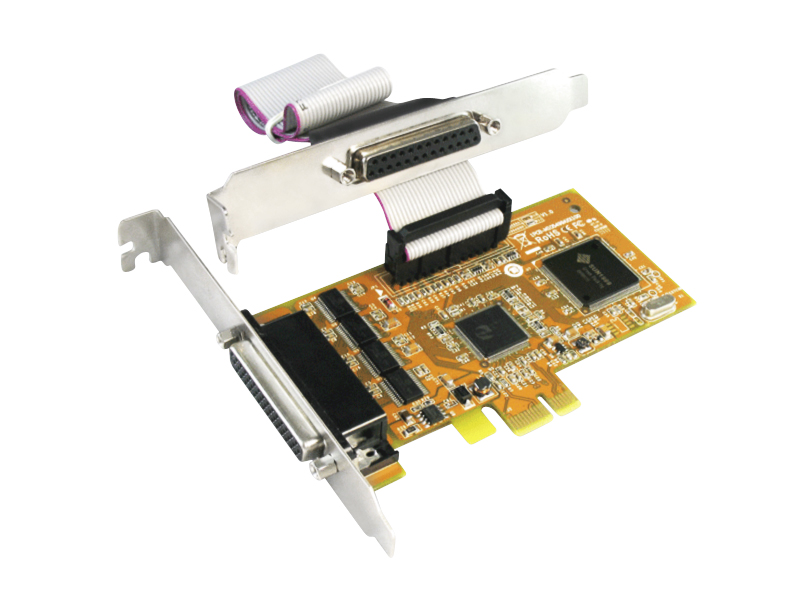

4-port High Speed RS-232 & 1-port Parallel PCI Express Multi-I/O Board
- Expands 4-port RS-232 COM and 1-port IEEE1284 LPT on system.
- Designed to meet PCI Express Base Specification Revision 1.1.
- High reliability SUNIX SUN1999 16C950 compatible Multi-IO controller on-board.
- Expands four RS-232 serial port with communication speed up to 921.6Kbps.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ±15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
-
Support IEEE 1284-1994 parallel port standard
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port) - Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Introduction
The majority of today´s motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5499H Multi I/O board, users can expand four RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5499H is compatible with PCI Express x1, x2, x4, x8 and x16 lane and PCI/PCI-x Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO5499H Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.
Specifications
Description |
|
| Product Description | 4-port High Speed RS-232 & 1-port Parallel PCI Express Multi-I/O Board |
General |
|
| Interface | RS-232 and IEEE1284 |
| Controller | SUNIX SUN1999 (16C950 UART Compatible) |
| Bus | PCI Express one lane (x1) |
| IRQ & IO | Assigned by System |
Serial Communication |
|
| Interface | RS-232 |
| No. of Port | 4-port |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB connector | DB44 Female |
| Cable Connector | DB9 Male |
Parallel Communication |
|
| Interface | IEEE1284 |
| No. of Port | 1-port |
| FIFO | 16 byte (Hardware) |
| Signal | SPP/ECP/EPP/BPP |
| Speed | Maximum 1.8MBps |
| PCB connector | 13x2 Pin Header |
| Cable Connector | DB25 Female |
Driver Support |
|
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
| Windows Server | 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.x |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals |
|
| Hardware | CE, FCC, VCCI, BSMI |
| Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 • Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Environment |
|
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
| PCB Dimension | 116 x 69 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 2 |
|
Note: * Do not support LPT Key Locker Parallel device. * LPT port does not support legacy 278/378 ISA address under Windows nor Linux operation systems, but only DOS mode. * ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode. |
|
Accessories
Optional Accessories
Support
Download Manual
| Manual | 771-9PCIEMIO2-S01 |
|
| Version | Ver 3.0 | |
| Update | 2017-07-11 14:09:39 | |
| Size | 6.1MB |
| Manual | Parallel LPT Port Configuration |
|
| Version | v1.0 | |
| Update | 2016-01-15 17:34:30 | |
| Size | 1.2MB |
Download Datasheet
| Datasheet | MIO5499H-Datasheet V11 |
|
Download Driver
| Driver | SUN1999Driver V10.2.6.0 (WHQL) | |
| Version | 10.2.6.0 | |
| Update | 2024-08-22 11:25:38 | |
| Size | 10.2MB | |
| OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
| Driver | SUN1999Driver V10.2.5.0(WHQL) | |
| Version | 10.2.5.0 | |
| Update | 2024-01-11 13:26:56 | |
| Size | 10.2MB | |
| OS |
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
| Driver | SUN1999Driver V9.2.2.0(WHQL) | |
| Version | 9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
| Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
| Version | 8.2.0.0 | |
| Update | 2023-01-12 13:34:21 | |
| Size | 4.4MB | |
| OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
| Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
| Version | 8.1.5.0 | |
| Update | 2023-01-11 17:08:11 | |
| Size | 4.5MB | |
| OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
| Driver | WinCE 6.0 Driver V1.2.0.0 | |
| Version | 1.2.0.0 | |
| Update | 2019-07-08 17:59:12 | |
| Size | 301.2KB | |
| OS |
Windows CE 6.0
|
| Driver | WinCE 5.0 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:02 | |
| Size | 280KB | |
| OS |
Windows CE 5.0
|
| Driver | WinCE 4.2 Driver V1.1.0.0 | |
| Version | 1.1.0.0 | |
| Update | 2019-07-08 18:00:47 | |
| Size | 235.6KB | |
| OS |
Windows CE 4.2
|
| Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
| Version | 1.0 | |
| Update | 2022-05-31 17:59:20 | |
| Size | 1.2MB | |
| OS |
Linux Kernel 5.4 above
|
| Driver | snx_V2.0.9.0 | |
| Version | V2.0.9.0 | |
| Update | 2024-02-23 11:51:30 | |
| Size | 703.5KB | |
| OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
|
| Driver | SUNDOS1.00.00.006 | |
| Version | 1.00.00.006 | |
| Update | 2014-08-19 10:36:25 | |
| Size | 21KB | |
| OS |
DOS
|
