PAR5418AL

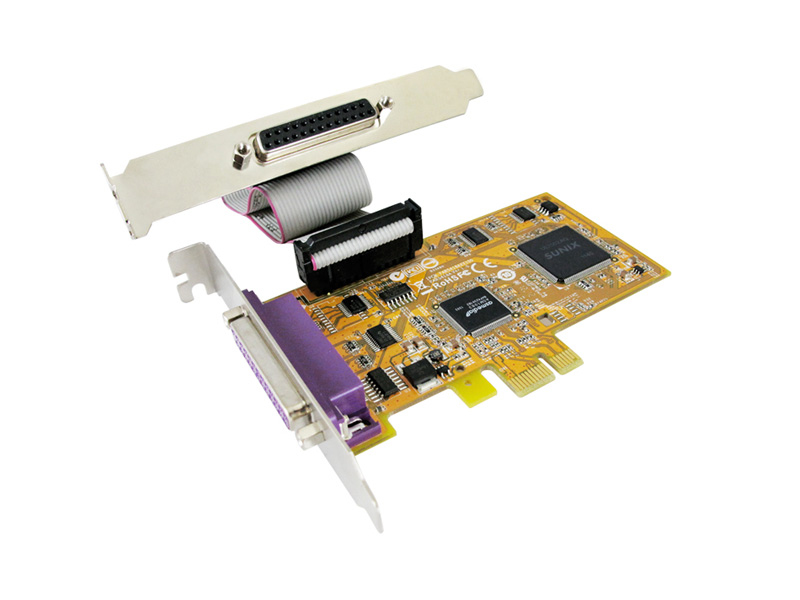

2-port IEEE1284 Parallel PCI Express Low Profile Board
  • High reliability SUNIX UL7502AQ Parallel controller on-board.
  • Expands two IEEE1284 Parallel ports on system.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Full single-lane (or x1) PCI Express throughput.
  • Support IEEE 1284-1994 parallel port standard
    * ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
    * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX PAR5418AL PCI Express interface IEEE1284 Parallel communication boards meet the PCI Express Base Specification Revision 1.1 specification. SUNIX PAR5418AL is compatible with PCI Express x1, x2, x4, x8 and x16 lane and PCI/PCI-x Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. With SUNIX PAR5418AL IEEE1284 Parallel board, users can expand two parallel ports to their system, allowing them to use parallel devices further. It is ideal for printers, IC programmers, ZIP Drives, or any Parallel devices*. SUNIXPAR5418AL built-in SUNIX high performance and realizable single controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.

Specifications

General

Interface IEEE1284
Controller SUNIX UL7502AQ
BUS PCI Express Spec 1.1, Single-Lane (x1)
IRQ & IO Assigned by System

Parallel Communication

Interface IEEE1284
No. of Port 2-port
FIFO 16byte Hardware
Mode SPP / ECP / EPP / BPP
Speed Maximum 1.8MBps
PCB Connector DB25 Female & 13 x 2 Pin Header

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
• Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 114 x 69 mm
Bracket Low Profile 80 mm
Bracket Space 2

Note:

* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.

Accessories

Including Accessories

13x2 Pin Header to DB25F Flat Cable With Bracket
  • Part Number: 1WDB-25F04026G1001

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual Parallel PCI Express Card User Manual
Version v2.0
Update 2017-07-19 14:54:32
Size 1.4MB
Manual Parallel LPT Port Read-Writer Register User Guide
Version V 1.0
Update 2018-01-02 15:20:28
Size 509KB
Manual Parallel LPT Port Configuration
Version v1.0
Update 2016-01-15 17:34:30
Size 1.2MB

Download Datasheet

Datasheet PAR5418AL Datasheet

Download Guide

Guide PCI-E Parallel Quick Installation Guide

Download Driver

Driver SUN1999Driver V10.2.8.0 (WHQL)
Version 10.2.8.0
Update 2024-10-18 15:46:26
Size 10.3MB
OS
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.1.0.0
Version V2.1.0.0
Update 2024-10-29 15:49:56
Size 704.9KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
