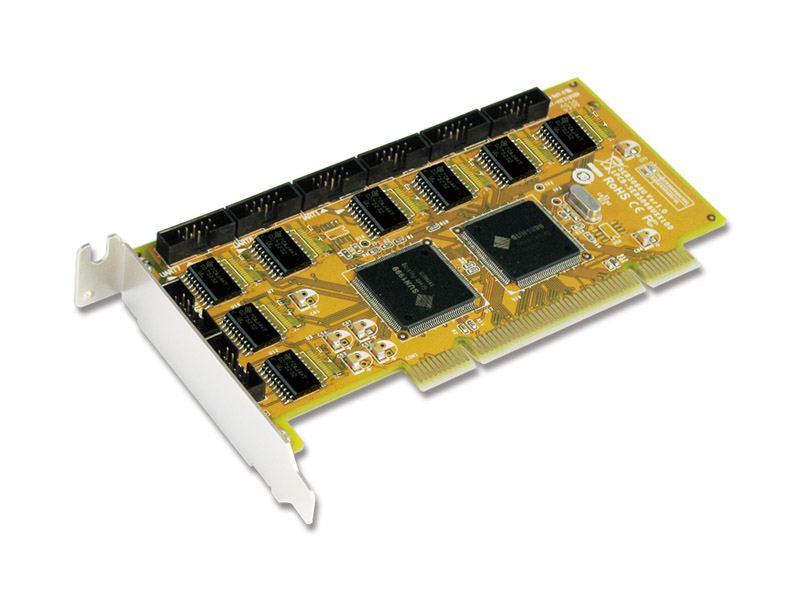

SER5066UL

8-port RS-232 Universal PCI Serial Embedded Type Low Profile Board
  • Expands 8 independent RS-232 serial port with communication speeds up to 115.2Kbps.
  • High reliability SUN1999 16C950 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • Ideal for embedded computing applications.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 2KV ESD protection for all serial signals.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX SER5066UL, Universal PCI serial communication board, allows users to add or expand eight RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5066UL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications



产品叙述


产品叙述 8 口嵌入式 RS-232串口短档板 Universal PCI卡

串口通讯


介面 RS-232
晶片 SUNIX SUN1999(兼容16C950 UART)
总线 Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
口数 8口
IRQ & IO 系统分配
FIFO 128 byte (硬件)
信号 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
波特率 50 bps to 115.2 Kbps
数据位 5,6,7,8
停止位 1,1.5,2
校验位 None, Even, Odd, Space, Mark
流量控制 None, Xon/Xoff, RTS/CTS
保护 ±2KV ESD 人体接触 (HBM)
PCB 接口 Pin Header (pitch 2.0mm)

驱动支持


Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009
LinuxLinux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.
如有标注 “ * “之作业系统专案需求,可与三泰业务员联系.

认证


硬件 CE, FCC, VCCI, BSMI
软件 Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

工作环境


工作温度 0 to 60°C (32 to 140°F)
工作湿度 5 to 95% RH
存储温度 -20 to 85°C (-4 to 185°F)

机构尺寸


PCB 尺寸 165 x 67 mm
档板 短档板 80 mm
档板位置数量 1

Accessories

Including Accessories

Mini SCSI 68 to 8-port DB9 Male Connection Cable
  • 40 cm
  • Part No.:1WDB-68S04009D800A
  • 1 pcs.
5x2 Pin Header (Pitch 2.0mm) to 1-port DB9 Male Connection Cable
  • 30 cm
  • Part No.: 1WDB-09M02610F1E01

Support

Download Manual

Manual PCI RS-232 Manual - 771-PCI232002-S01
Version Ver 3.0
Update 2017-07-24 11:51:36
Size 1.2MB

Download Datasheet

Datasheet SER5066UL-Datasheet-V20

Download Guide

Guide PCI RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2019-07-08 16:23:37
Size 4.8MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Embedded POSReady 7
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2019-07-08 16:26:08
Size 4.5MB
OS
Windows XP SP3 32/64 bit
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999 Linux Inbox Driver
OS
Linux Kernel 5.4 above
Driver snx_V2.0.5.0
Version 2.0.5.0
Update 2021-04-07 18:07:37
Size 57.7KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
