SER5066HL

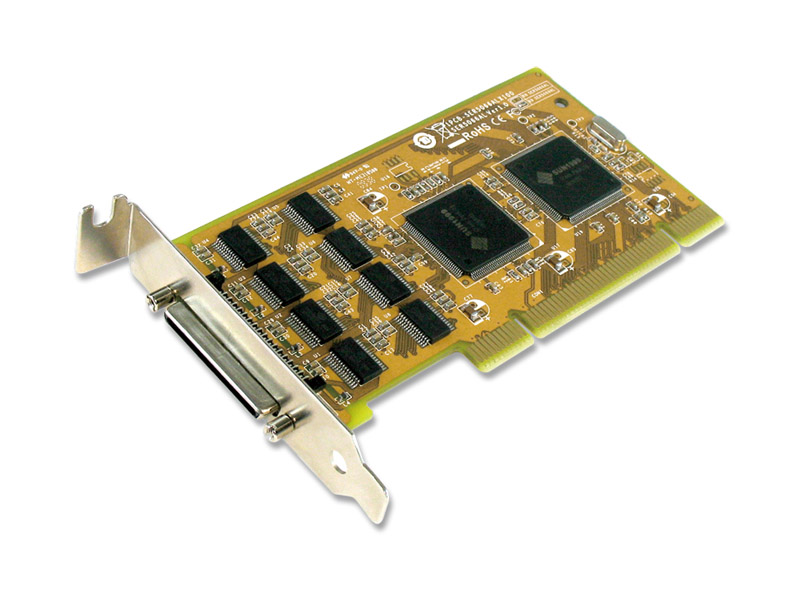

8-port RS-232 High Speed Low Profile Universal PCI Serial Board
  • Expands 8 independent RS-232 serial port with communication speeds up to 921.6Kbps.
  • High reliability SUN1999 16C950 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX SER5066HL, Universal PCI serial communication board, allows users to add or expand eight RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5066HL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

Description

Product Description 8-port RS-232 High Speed Low Profile Universal PCI Serial Board

Serial Communication

Interface RS-232
Controller SUNIX SUN1999 (16C950 UART Compatible)
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 8-port
IRQ & IO Assigned by System
FIFO 128 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Baud rate 50 bps to 921.6 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB connector Mini SCSI 68 Female

Driver Support

Microsoft Client Windows XP / Vista / 7 / 8.x / 10 (X86/X64)
Microsoft Server Windows 2000/2003/2008/2012 (X86/X64)
Microsoft Embedded Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7
Linux Linux 2.x / 3.x / 4.x
DOS DOS
*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Microsoft Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Microsoft Server: 2000/2003/2008/2012 (X86/X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 63 mm
Bracket Low Profile 80 mm
Bracket Space 1



Accessories

Including Accessories

Mini SCSI 68 to 8-port DB9 Male Connection Cable
  • 40 cm
  • Part No.:1WDB-68S04009D800A
  • 1 pcs.

Support

Download Manual

Manual PCI RS-232 Manual - 771-PCI232002-S01

Download Datasheet

Datasheet SER5066HL-Datasheet V20

Download Guide

Guide PCI RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL)
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V9.2.0.0(WHQL)
Version 9.2.0.0
Update 2020-12-10 11:20:23
Size 9.3MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows Server 2019 64bit
Driver SUN1999Driver V9.0.6.0 (WHQL)
Version 9.0.6.0
Update 2020-11-02 11:15:04
Size 9.3MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2019-07-08 16:23:37
Size 4.8MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Embedded POSReady 7
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2019-07-08 16:26:08
Size 4.5MB
OS
Windows XP SP3 32/64 bit
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999 Linux Inbox Driver
OS
Linux Kernel 5.4 above
Driver snx_V2.0.5.0
Version 2.0.5.0
Update 2020-03-09 16:09:46
Size 57.6KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.3
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
