SER6437A

2-port RS-232 PCI Express Board
  • Expands 2 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • With high reliable SUNIX SUN2212 PuLao native PCI Express 16C950 UART controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX SER6437A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in virtually any PC system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 2 serial ports to their system, allowing them to use serial devices further. SUNIX SER6437A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2212 PuLao and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

General

Interface RS-232
Controller SUNIX SUN2212 PuLao (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8.x / 10 /11 (X86/X64)
Microsoft Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022  (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 65 x 88 mm
Bracket Standard 121 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual PCI Express RS-232 Manual-771-PCIE23202-S01
Version Ver 3.0
Update 2017-07-24 14:32:54
Size 1.2MB

Download Datasheet

Datasheet SER6437A-Datasheet-V10

Download Guide

Guide PCI-E RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V10.2.5.0(WHQL)
Version 10.2.5.0
Update 2024-01-11 13:26:56
Size 10.2MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V10.2.3.0(WHQL)
Version 10.2.3.0
Update 2023-06-30 11:26:32
Size 10.2MB
OS
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.0.9.0
Version V2.0.9.0
Update 2024-02-23 11:51:30
Size 703.5KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS

SER6437A

2-port RS-232 PCI Express Board
  • Expands 2 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • With high reliable SUNIX SUN2212 PuLao native PCI Express 16C950 UART controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX SER6437A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in virtually any PC system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 2 serial ports to their system, allowing them to use serial devices further. SUNIX SER6437A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2212 PuLao and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

General

Interface RS-232
Controller SUNIX SUN2212 PuLao (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8.x / 10 /11 (X86/X64)
Microsoft Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022  (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 65 x 88 mm
Bracket Standard 121 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual PCI Express RS-232 Manual-771-PCIE23202-S01
Version Ver 3.0
Update 2017-07-24 14:32:54
Size 1.2MB

Download Datasheet

Datasheet SER6437A-Datasheet-V10

Download Guide

Guide PCI-E RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V10.2.5.0(WHQL)
Version 10.2.5.0
Update 2024-01-11 13:26:56
Size 10.2MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V10.2.3.0(WHQL)
Version 10.2.3.0
Update 2023-06-30 11:26:32
Size 10.2MB
OS
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.0.9.0
Version V2.0.9.0
Update 2024-02-23 11:51:30
Size 703.5KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS

SER6437A

2-port RS-232 PCI Express Board
  • Expands 2 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • With high reliable SUNIX SUN2212 PuLao native PCI Express 16C950 UART controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX SER6437A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in virtually any PC system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 2 serial ports to their system, allowing them to use serial devices further. SUNIX SER6437A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2212 PuLao and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

General

Interface RS-232
Controller SUNIX SUN2212 PuLao (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8.x / 10 /11 (X86/X64)
Microsoft Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022  (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 65 x 88 mm
Bracket Standard 121 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual PCI Express RS-232 Manual-771-PCIE23202-S01
Version Ver 3.0
Update 2017-07-24 14:32:54
Size 1.2MB

Download Datasheet

Datasheet SER6437A-Datasheet-V10

Download Guide

Guide PCI-E RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V10.2.5.0(WHQL)
Version 10.2.5.0
Update 2024-01-11 13:26:56
Size 10.2MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V10.2.3.0(WHQL)
Version 10.2.3.0
Update 2023-06-30 11:26:32
Size 10.2MB
OS
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.0.9.0
Version V2.0.9.0
Update 2024-02-23 11:51:30
Size 703.5KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS

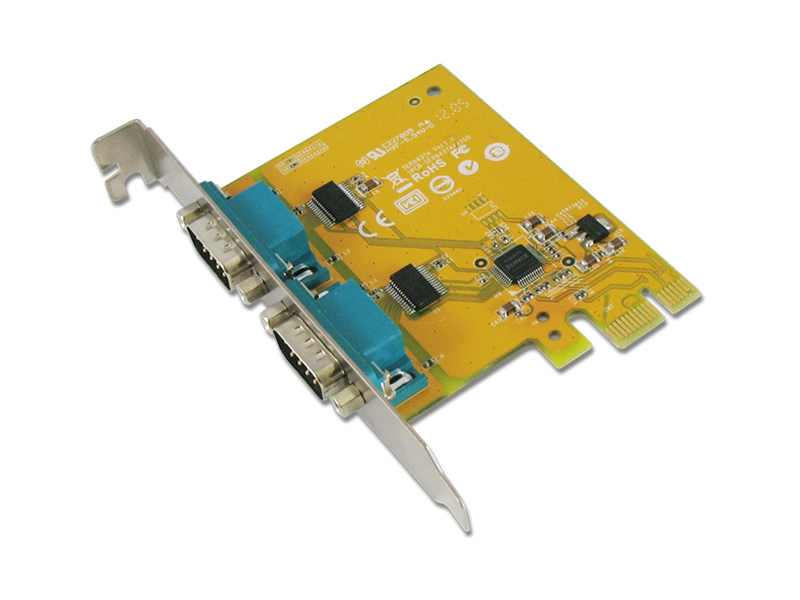

SER6437A

2-port RS-232 PCI Express Board
  • Expands 2 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • With high reliable SUNIX SUN2212 PuLao native PCI Express 16C950 UART controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

SUNIX SER6437A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in virtually any PC system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 2 serial ports to their system, allowing them to use serial devices further. SUNIX SER6437A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2212 PuLao and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Introduction

SUNIX SER6437A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in virtually any PC system. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 2 serial ports to their system, allowing them to use serial devices further. SUNIX SER6437A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2212 PuLao and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

General

Interface RS-232
Controller SUNIX SUN2212 PuLao (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8.x / 10 /11 (X86/X64)
Microsoft Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022  (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 65 x 88 mm
Bracket Standard 121 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Manual

Manual PCI Express RS-232 Manual-771-PCIE23202-S01
Version Ver 3.0
Update 2017-07-24 14:32:54
Size 1.2MB

Download Datasheet

Datasheet SER6437A-Datasheet-V10

Download Guide

Guide PCI-E RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V10.2.5.0(WHQL)
Version 10.2.5.0
Update 2024-01-11 13:26:56
Size 10.2MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V10.2.3.0(WHQL)
Version 10.2.3.0
Update 2023-06-30 11:26:32
Size 10.2MB
OS
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.0.9.0
Version V2.0.9.0
Update 2024-02-23 11:51:30
Size 703.5KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
Back to top
返回頂部
返回頂部
