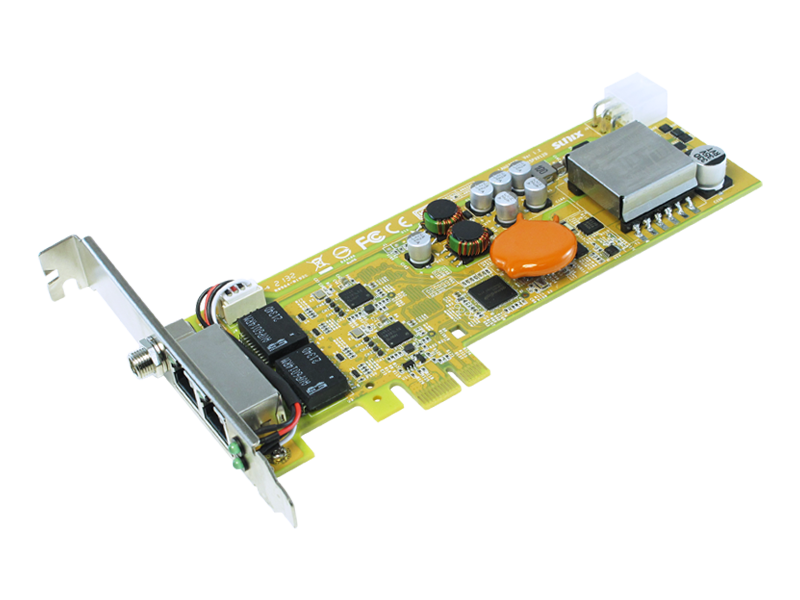

LAN2225P
PCI Express 2ports 2.5G BASE-T Network PoE Card
- Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications.
- Support 1-Lane 5Gbps PCI Express Bus
- Transmit/Receive on-Chip buffer support
- Advanced Power Management (APM) Support–[formerly Wake on LAN.
- Advanced Configuration and Power Interface (ACPI) specification v2.0c.
- Support intel vPRO.
- Support ASPM L0s
- Support IEEE 802.3AF/AT
- 2K isolation input to output.
- IEEE 802.3u auto-negotiation conformance
- Jumbo frames (up to 9 KB and without TSN)
- Time Sensitive Networking (TSN) support
- PXE support
- Teaming and 802.1Q VLAN support
Introduction
SUNIX LAN2225P is a dual port POE network card based on 2.5G Base-T which meets the high bandwidth requirement. Equipped with intel I225 network chip, LAN2225P allows enterprise users to expand the intel vPro capability for various network applications. Designed for IEEE 802.3 at , the max. output for each port is up to 30W. It is very easy to deploy the network environments with one network cable and no external power required. With isolation design, LAN2225P can ensure the safety of system and the preservation of data when a lightning strike occurs.
Specifications
| Model | LAN2225P |
| Description | PCI Express 2.5G Network Card |
| Chipset | Intel I225LM |
| Interface | PCI Express Gen2 x1 |
| Port | RJ45 (2.5GbE) x 2 |
| Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab/az/bz IEEE 802.1Q VLAN Tagging, IEEE 802.1ad Double VLAN |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) 2500Base-T: UTP category 5e, 6 cable (maximum 100m) |
| Data Rates | 10/100/1000/2500Mbps |
| LED Indicator | 2500Mbps Link/Act, 1000Mbps Link/Act, 100Mbps Link/Act |
| O.S Support |
Windows 11, 10 (X86/X64) Linux 5.8 and above |
| Environment |
Operation temp. 0 °C ～ 60 °C (32-104°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
| Regulatory Approvals | CE, FCC, VCCI, BSMI RoHS |
PoE Specifications
| PoE+ Feature |
|
| Power Input options |
|
Support
Download Manual
| Manual | LAN2225P Manual |
|
| Version | 1.0 | |
| Update | 2021-11-12 15:29:36 | |
| Size | 744.8KB |
Download Datasheet
| Datasheet | LAN2225P Datasheet EN |
|
Download Driver
| Driver | Wired_driver_28.0_x64 | |
| Version | 28.0 | |
| Update | 2023-05-08 16:28:14 | |
| Size | 37.6MB | |
| OS |
Windows 10 64bit
Windows 11 64bit
Windows Server 2022 64bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
|
| Driver | Wired_driver_28.0_32 | |
| Version | 28.0 | |
| Update | 2023-05-08 16:28:38 | |
| Size | 10.3MB | |
| OS |
Windows 10 32bit
|
