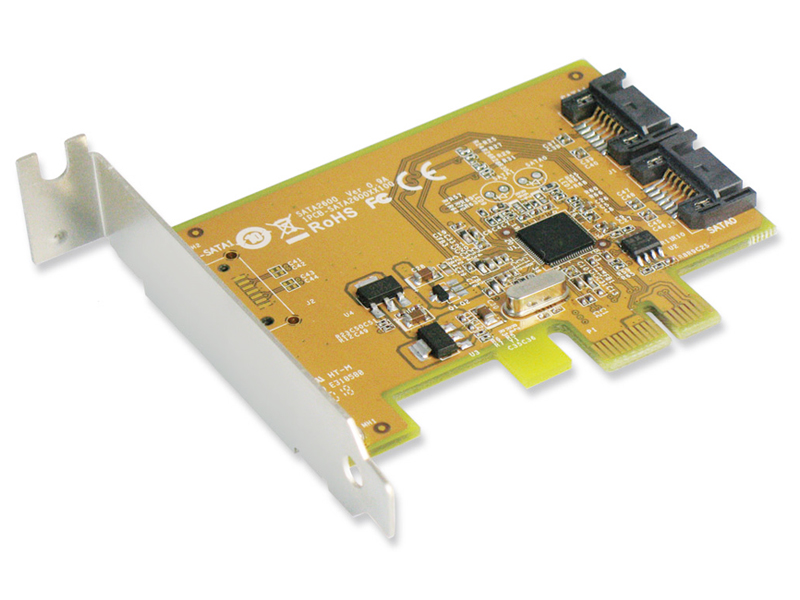

SATA2600L

Serial - ATA Ⅲ 6G 2-port PCI Express RIAD Controller
  • Supports PCI Express Specification Revision 2.0. (Compatible with PCI Express 1.0)
  • Extends two Serial ATA Gen3 6Gb/s ports. (Compatible with SATA Gen1 and 2)
  • Native Command Queue (NCQ) on SATA port.
  • Supports up to two storage devices connection with RAID 0 and 1.
  • Hardware RAID design reduces the system resource loading.
  • Built-in  2 standard SATA ports connectivity.
  • Works with various brands of large capacity SATA hard disk drives.
  • Low-profile design fitting for kinds of computer chassis.
  • Certified by CE, FCC, VCCI, BSMI, and RoHS.
  • Support Microsoft Windows and Linux.

Introduction

SUNIX SATA2600L is a single-chip, PCI Express to two Serial-ATA (SATA) GenⅢ 6Gb/s channels RAID host controller that brings server-class features to the desktop. SATA2600L equips MARVELL high performance PCI Express chipset which supports all Serial ATA Ⅰ, Ⅱ, and Ⅲ features. SATA2600L enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Besides, PCI Express 2.0 double the bandwidth of the existing PCI Express bus for faster data throughput. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It also backward compatible with previous generation of PCI-Express 1.0 technology.

Specifications

Description

Product Description Serial - ATA Ⅲ 6G 2-port PCI Express RIAD Controller

Serial Communication

Interface Single-Lane (x1) PCI Express Gen2
Controller MARVELL
Mode Serial-ATA Generation- Ⅲ
Port Two internal SATA ports
Speed SATA III transfer rate of 6.0Gbps, 3.0Gbps 1.5Gbps

O.S. support

Windows 2000/XP/2003/Vista/7/8/8.1 (32/64-bit) ,Linux 2.6x, and DOS

Certification

CE, FCC, VCCI, BSMI

Environment

Operation temp.: 0 °C ~ 57 °C
Storage temp.: -20 °C ~ 85 °C
Operation humidity: 5 ~ 95% RH

Package Contents

1. SATA2600L
2. User Manual
3. CD Driver
4. Serial-ATA internal Cable 50cm (Optional)



Accessories

Optional Accessories

Serial-ATA internal Cable
  • Length : 50cm
  • Partner No.: 1WST-A7050A12B0003

Support

Download Manual

Manual 771-SATA26000-002

Download Datasheet

Datasheet SATA2600L Datasheet V10

Download Driver

Driver 9130_Utility_MSU_4.1.0.2023.zip
Version MSU_V4.1.0.2023
Update 2015-01-23 09:40:23
Size 41.1MB
OS
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
Driver 9130_V1.2.0.1041-WHQL
Version V1.2.0.1041
Update 2015-01-23 09:37:41
Size 1.5MB
OS
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
Driver driver 1.2.0.1014.zip
Version 1.2.0.1014
Update 2011-12-15 14:40:17
Size 2.2MB
OS
Windows XP SP3 32/64 bit
