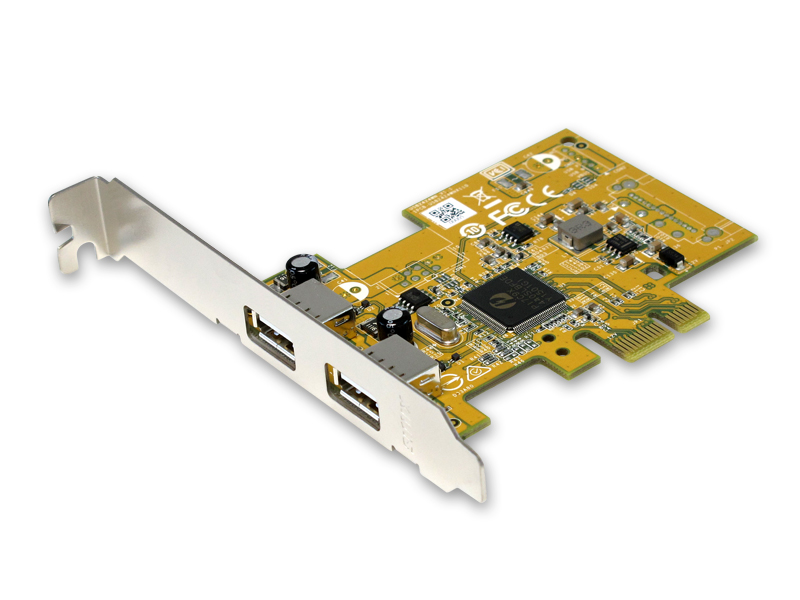

USB2400

2-port USB 2.0 PCI Express Add-On Card
  • Compliance with PCI Express Base Specification Reversion 1.1.
  • Compliant with the Universal Serial Bus (USB) Specification Revision 2.0
  • High performance native USB 2.0 PCI Express EHCI/OHCI host controller on board.
  • Expands two external USB 2.0 High-Speed Type-A ports on the system.
  • Each USB port supports +5VDC power output up to maximum 1000mA.
  • Each USB port built-in over current protection fuse
  • for safety USB connection.
  • Plug-n-Play, I/O address and IRQ assigned by operating system.
  • Support USB device Hot-Swapping and Plug-n-Play function.
  • Drivers free under Linux, Apple MAC, Microsoft operation systems.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.

Introduction

SUNIX USB2400 is a dual-port High-Speed USB 2.0 PCI Express card and the interface has a potential transfer rates of 2.5Gbps using a single-lane (or x1) PCI Express link. With native PCI Express EHCI/OHCI USB 2.0 host controller, this board is driver free under Windows, MAC and Linux operation system and best compatible with existing USB peripheral to your desktop computer. Each USB port supplies maximum +5VDC / 1000mA power output to USB device with over current protection.

The USB 2.0 High-Speed implementation of the Universal Serial Bus standard supports transfer speeds up to 480 Mbps. With USB USB 2.0 High-Speed ports, its make you connect kinds of USB devices and peripheral to your desktop computer instantly and conveniently, such as hubs, data storage devices, PC video cameras, digital cameras, CD-R/RWs, DVD-ROMs, scanners, printers, memory card readers, and more.

Specifications

Hardware

BUS PCI Express Spec 1.1, Single-Lane (x1)
Controller PCI Express USB 2.0 Host controller
USB Standard Enhanced Host Controller Interface (EHCI) and
Open Host Controller Interface (OHCI)
IRQ & IO Assigned by System

Serial Communication

Interface Universal Serial Bus 2.0 / 1.1
Speed High-Speed (HS), Full-Speed(FS) and Low-Speed(LS)
Data Transfer rate of 1.5, 12, and 480Mbps
No. of Port 2-port
PCB Receptacle USB 2.0 Type-A Female
Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge

Power

Source PCI Express Bus Power
Output Capacity

+5VDC / Maximum 1.0A / each port
Note: Total power output capacity will be limited by PC system power supply.



Over Current Protection Standard USB 2.0 Port:
+5VDC / 1.1A@5V PTC fuse / each port
Power Consumption 1.1W @ 3.3V (board only without power output to device)

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded XP Embedded / POS Ready 2009 / Embedded System
Linux Linux 2.x / 3.x / 4.x
Apple MAC MAC OS X 10.4 or later

Standards and Certifications

EMC CE, FCC, VCCI, BSMI, Class B Standard
Green RoHS, CRoHS, WEEE

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)

Physical Characteristics

PCB Dimension 90 x 68.5 mm
Bracket Standard 121 mm
Bracket Space 1

Support

Download Manual

Manual USB2400 User Manual

Download Datasheet

Datasheet USB2400 Datasheet

Download Driver

Driver USB2.0 Windows Inbox Driver
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 64-bit
Driver USB Linux Inbox Driver
OS
Linux 2.6.x above
