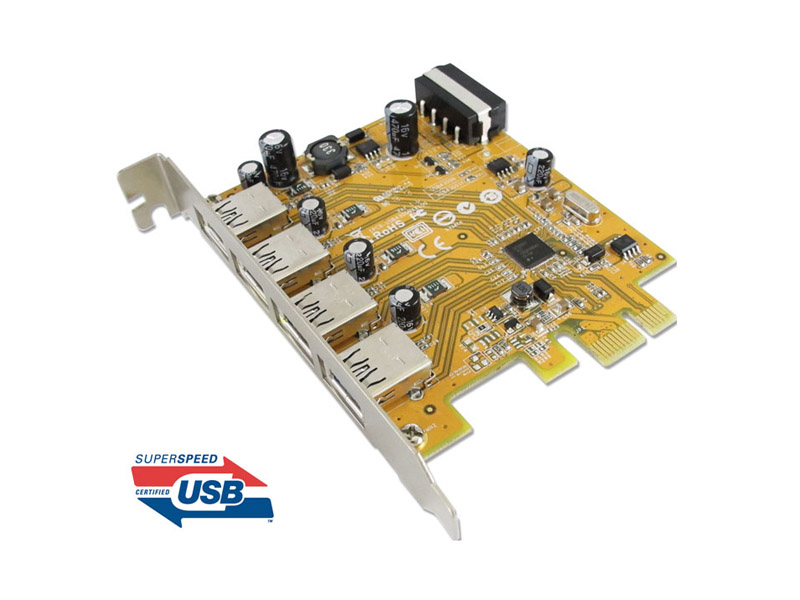

USB4300IF

USB 3.0 4-port PCI Express Host Controller
(USBIF TID 350000211)
  • USBIF certificated USB 3.0 host card TID 350000211
  • Supports PCI Express Base Specification Revision 2.0.
  • Single-lane (x1) PCI Express throughput rates up to 5 Gbps.
  • Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
  • Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.0
  • Expands four external USB 3.0 Super-Speed ports on the system.
  • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
  • Supports USB data transfer rate of 1.5/12/480/5000 Mbps.
  • Supports widows power management and remote wakeup function from USB device.
  • Each USB port supplies +5V / 900mA power output to USB device.
  • Hot-swapping feature allows to connect / disconnect devices without powering down the system.
  • Driver supports for Microsoft Windows XP, Vista, 7, 2008, 8 and 8.1 operation systems.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Certification

通過USBIF認證 TID 350000211 擴充4埠USB 3.0 Type A連接埠



Introduction

Super-Speed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard and backward compatible with current USB device features, USB 3.0 interface will be the trendy of IT technology.

SUNIX USB4300IF is a four-port Super-Speed USB 3.0 PCI Express card, and it is compliant with the PCI Express Generation 2 specification for host PC system. It works up to 5 Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. With USB Hot-Swapping and Plug-n-Play function, you don't have to worry about running out of slots on your mother board or complicated hardware installation process.

SUNIX USB4300IF card supports USB 3.0 High-Speed device and backward compatible with USB 2.0 High-Speed and USB 1.1 Full-Speed devices. With SUNIX unique technology, this board not only supports widows power management, but also supports remote wakeup function from USB device. Besides it can output efficient power to USB device without additional power adapter connection. SUNIX USB4300IF is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.

Film

Specifications

Interface Single-Lane (x1) PCI Express Gen2
Mode USB 3.0
Controller Renesas uPD720201
USBIF TID 350000211
Port 4 external USB 3.0 ports
Speed Data Transfer rate of 1.5/12/480/5000 Mbps.
Low Speed (1.5Mbps),
Full Speed(12Mbps),
High Speed(480Mbps),
SuperSpeed(5Gbps)
Power Input PCIe Bus Power & 4-pin CD-ROM Type Power Connector
Power Output +5V / 900mA (each port)
PCB Dimension 109 (W) x 99(L)mm
Bracket Standard 121mm
Certified CE, FCC, VCCI, BSMI
O.S. Support Windows XP/2003/Vista/7/2008/8/8.1/10 (32/64-bit)
Linux 2.6.31 or later (Linux OS already implemented USB 3.0 driver)
Environment Operation temp. 0 °C ~ 57 °C
Operation humidity: 5 ~ 95% RH
Storage temp.-20 °C ~ 85 °C

Support

Download Manual

Manual 771-USB4300N0-N01

Download Datasheet

Datasheet USB4300IF Datasheet

Download Driver

Driver USB3.0 Windows Inbox Driver
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Driver RENESAS-USB3-Host-Driver-30230-setup
Version V3.0.23.0
Update 2013-06-10 18:03:54
Size 9.1MB
OS
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2008 R2 SP1 64bit
Driver USB3.0 Linux Inbox Driver
OS
Linux 2.6.31 above
