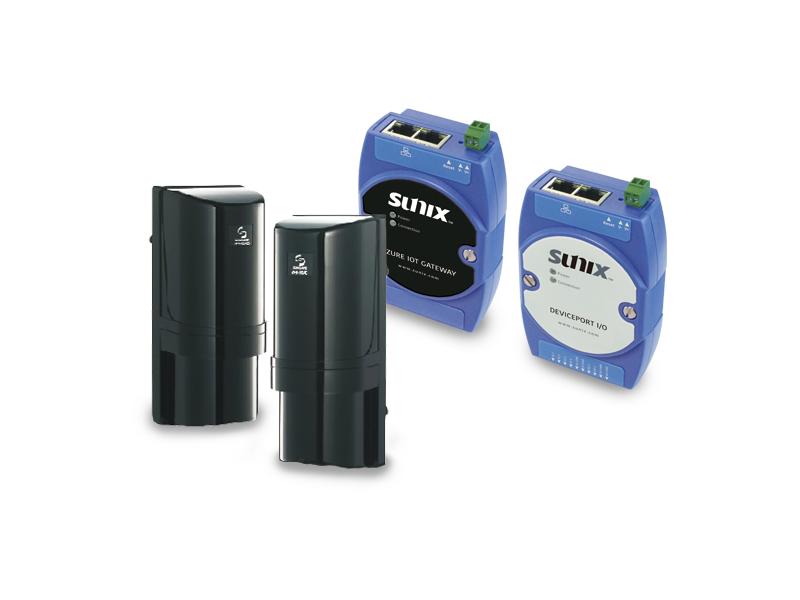

KEM1501

Intelligent Virtual Fence APP (Designed to work with Microsoft IoT Central)
  • All-in-one IoT Kit for Rapid Deployment
  • Code-free, No Programming
  • Easy to use, Setup in Hours
  • Simple IoT Kit for Non-developers

Introduction

Traditional manufacturing has always had a threshold for cloud solutions, so that it cannot be popularized, which is due to the high price and complicated cloud software compilation. SUNIX using innovative EAZInet technology and Microsoft's latest SaaS platform to create a dedicated cloud based of Azure IoT Central. Customers can match suitable application packages for different fields, and can complete the development of equipment requirements within a few hours. No need to intrude into the equipment, no need programing experience. It’s completed with just few steps.

Specifications

EZG1200 Azure IoT Central Gateway Specifications

It is designed to work with Microsoft Azure IoT Central. The customer leverage SUNIX communication protocol for establishing direct connections with Azure IoT cloud

EZR5001 4-ch DI / 2-ch DO Specifications

Digital Input
Channels 4 channels
Dry Contact Logic Level 0: Open
Logic Level 1: Close to GND
Wet Contact Logic Level 0: 0 to 3V
Logic Level 1: 10 to 50V
Input Resistance 10 ㏀
Isolation 1k VDC
Over-Voltage Protection 70VDC
Digital Output
Channels 2 channels
Output Type NPN
Output Voltage Range 3.5-30V
Normal Output Current 500mA per Channel
Isolation 1k VDC
Startup Value Setting Yes
Communication Safety Value Setting Yes
Power Requirements
Input Voltage 12 to 24 VDC
Power Consumption 1.6W@ 24 VDC
Connector 2 PIN Terminal Block

Common Specifications for Communication Layer Devices

LAN
Ethernet 2-port 10/100 Mbps RJ45 ports
Protection 1.5 KV magnetic isolation
Protocols SUNIX EAZInet
Physical Characteristics
Dimensions 72.1 x 108 x 33.7 mm (2.83 x 4.25 x 1.32 in)
Weight 118 g
Mounting DIN rail or wall
Environmental Limits
Operation Temperature -25 to 70°C (-13 to 158°F)
Operation Humidity 5 to 95% RH(non-condensing)
Storage Temperature -30 to 75°C (-22 to 167°F)
Standards and Certifications
EMC EN 55032, EN 55035
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2
ESD Contact: 4 kV; Air: 8 kV

2PB-60AD-IOT Infrared Sensor (Digital) Specifications

Detection Distance - Outdoor 200 ft. (60m)
Detection Distance - Indoor 400 ft. (120m)
Max. Arrival Distance 600公尺
Current Consumption 85mA
Selectable Beam Frequency 4-channel
Power Supply 10.5V ~ 30VDC ( Non _Polarity )
Infrared Photoelectric LED pulsed beam, Double modulation
Detection System Simultaneous breaking of 2 beams
Response Time 50msec ~ 700msec ( Adjustable )
Alarm Output Dry connect relay NC./ NO. 0.2A / 28VDC Contact action: 1 To 3 sec .
Tamper Output Dry connect relay NC. 0.2A / 28VDC Action : cover is detached.
Alarm LED Red LED (Receiver) lights when an alarm is initiated.
Attenuation LED Yellow LED (Receiver) lights when beam is attenuated
Functions Anti-environmental interference、 A.G.C.(Automatic Gain Control)Circuit
Alignment Angle Horizontal ±90°, Vertical ±5°
Operating Temperature -13°F to +131°F ( -25°C to +55°C)
Mounting Positions Indoor / Outdoor
Wiring Terminals
Weight 32.7oz (925g) Transmitter & Receiver
Dimensions W76 x H181.5 x D77.8 mm
Standard Accessories U-Shaped Brackets x 2 , Attenuation Sheet x 1 Screws ( 4x20 Self tapping ) x 4 , Screws ( M4 x 20 ) x 4

Support

Download Manual

Manual KEM1501 Solution Kit User Manual
Version Ver. 1.0
Update 2020-03-18 16:05:10
Size 2.6MB
Manual ECS-Add Device Setting Instruction
Version Ver. 1.0
Update 2020-03-18 16:16:10
Size 1.3MB
Manual ECS-Create Dashboard
Version Ver. 2.0
Update 2020-10-06 14:06:21
Size 648.2KB
Manual ECS-Gateway IP Configuration
Version Ver. 1.0
Update 2020-05-21 15:09:39
Size 636.4KB
Manual EZG1200 Gateway Manual
Version Ver. 3.0
Update 2021-10-28 16:26:32
Size 2.5MB
Manual EZG1200 Gateway Manual
Version Ver. 1.0
Update 2021-08-27 10:13:44
Size 1.6MB

Download Datasheet

Datasheet KEM1501 Datsheet
