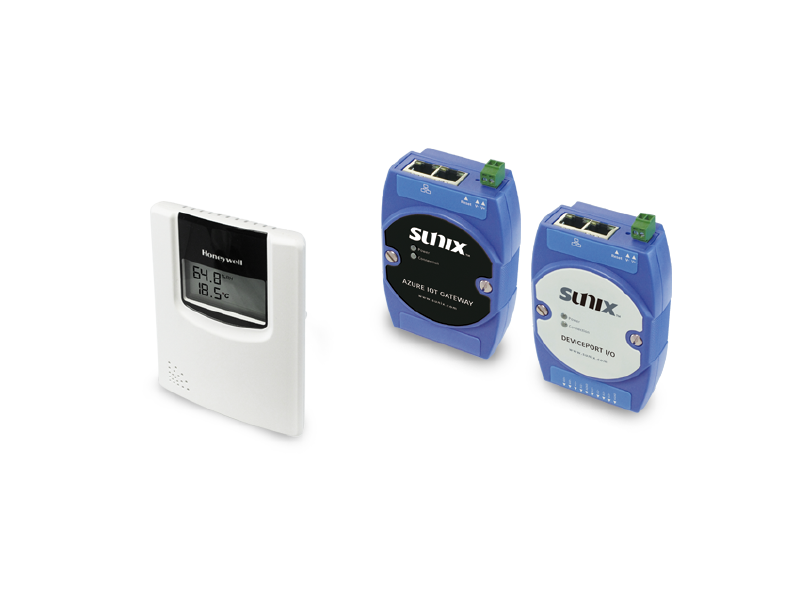

KEM1103
Environmental monitoring APP (Designed to work with Microsoft IoT Central)
- All-in-one IoT Kit for Rapid Deployment
- Code-free, No Programming
- Easy to use, Setup in Hours
- Simple IoT Kit for Non-developers
Introduction
Traditional manufacturing has always had a threshold for cloud solutions, so that it cannot be popularized, which is due to the high price and complicated cloud software compilation. SUNIX using innovative EAZInet technology and Microsoft's latest SaaS platform to create a dedicated cloud based of Azure IoT Central. Customers can match suitable application packages for different fields, and can complete the development of equipment requirements within a few hours. No need to intrude into the equipment, no need programing experience. It’s completed with just few steps.
Specifications
EZG1200 Azure IoT Central Gateway Specifications
It is designed to work with Microsoft Azure IoT Central. The customer leverage SUNIX communication protocol for establishing direct connections with Azure IoT cloudEZR5231 4-ch AI Specifications
Analog Input
| Channels | 4 channels | ||
| Voltage Range |
±100 mV ±500 mV, ±1 V , ±5 V, ±10 V 0~100 mV, 0~500 mV, 0~1 V , 0~5 V, 0~10 V |
||
| Current Range | ±20mA, 0~20mA | ||
| Sampling Rates | 20 Samples/Second Total | ||
| Input Impedance |
100MΩ： ±100mV, ±500mV, ±1V,0~100mV, 0~500mV, 0~1V 2.4MΩ： ±5V, ±10V,0~5V, 0~10V 120Ω：±20mA, 0~20mA |
||
| Resolution | 16-bit | ||
| Accuracy | ±0.1% FSR | ||
| Span Drift | ±25 ppm/℃ | ||
| Zero Drift | ±6 μ V/℃ | ||
| Input Voltage Protection | Built-in TVS/ESD Protection | ||
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 2 PIN Terminal Block |
Common Specifications for Communication Layer Devices
LAN
| Ethernet | 2-port 10/100 Mbps RJ45 ports |
| Protection | 1.5 KV magnetic isolation |
| Protocols | SUNIX EAZInet |
Physical Characteristics
| Dimensions | 72.1 x 108 x 33.7 mm (2.83 x 4.25 x 1.32 in) |
| Weight | 118 g |
| Mounting | DIN rail or wall |
Environmental Limits
| Operation Temperature | -25 to 70°C (-13 to 158°F) |
| Operation Humidity | 5 to 95% RH(non-condensing) |
| Storage Temperature | -30 to 75°C (-22 to 167°F) |
Standards and Certifications
| EMC | EN 55032, EN 55035 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 |
| ESD | Contact: 4 kV; Air: 8 kV |

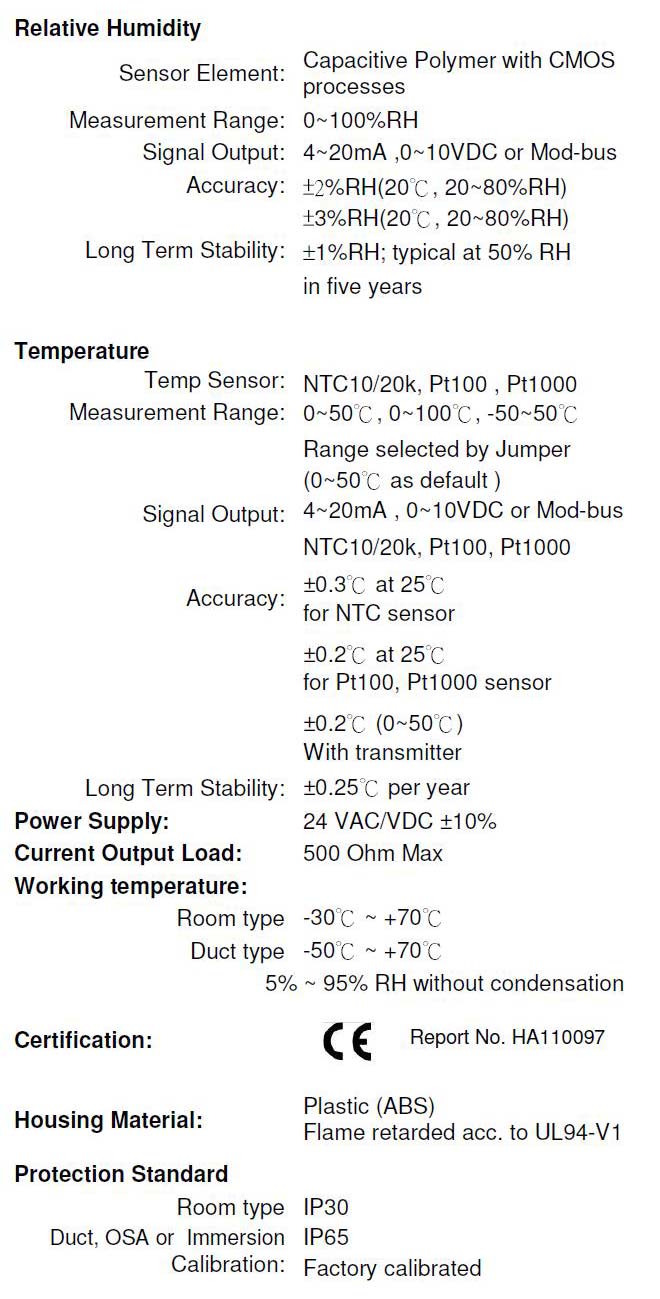

Temp. & RH sensor (Analog) Specifications
Support
Download Manual
| Manual | KEM1103 Solution Kit User Manual |
|
| Version | Ver. 2.0 | |
| Update | 2020-03-18 15:50:47 | |
| Size | 2.6MB |
| Manual | ECS-Add Device Setting Instruction |
|
| Version | Ver. 1.0 | |
| Update | 2020-03-18 16:16:10 | |
| Size | 1.3MB |
| Manual | ECS-Create Dashboard |
|
| Version | Ver. 2.0 | |
| Update | 2020-10-06 14:06:21 | |
| Size | 648.2KB |
| Manual | ECS-Gateway IP Configuration |
|
| Version | Ver. 1.0 | |
| Update | 2020-05-21 15:09:39 | |
| Size | 636.4KB |
| Manual | EZG1200 Gateway Manual |
|
| Version | Ver. 3.0 | |
| Update | 2021-10-28 16:26:32 | |
| Size | 2.5MB |
| Manual | EZG1200 Gateway Manual |
|
| Version | Ver. 1.0 | |
| Update | 2021-08-27 10:13:44 | |
| Size | 1.6MB |
Download Datasheet
| Datasheet | KEM1103 Datasheet |
|
