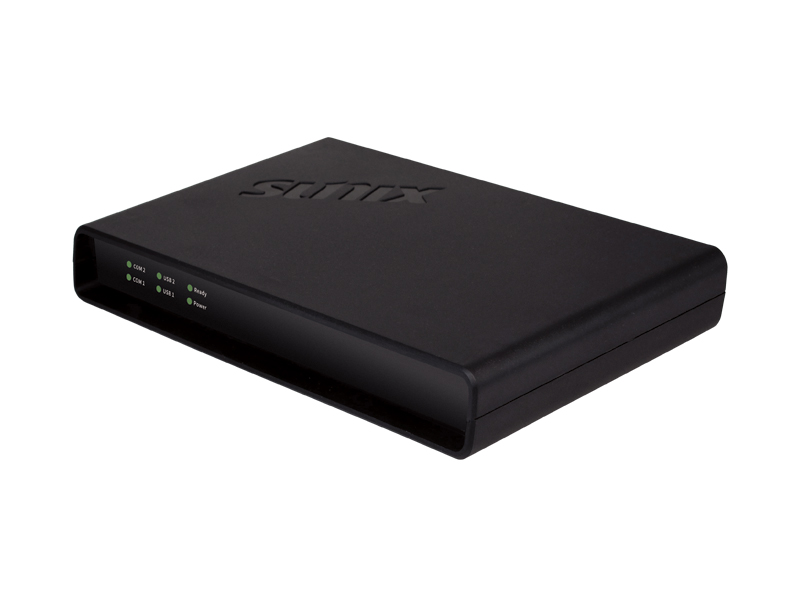

iDP220D00 (phased out)
iDevicePort Ethernet Based I/O Hub 2-port RS-232 & USB 2.0
- Extend dual USB2.0 and dual RS-232 ports over Local Area Network.
- Built-in SUNIX DevicePort DPL2000Q High-Performance Ethernet-UART controller.
- ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
- Provide a complete SDK for iOS & Android software developers.
- Support for iOS & Android operating systems.
Introduction
SUNIX iDevicePort® series is designed for Mobile devices, allowing users to expand traditional I/O connectives on Mobile devices over a Local Area Network. It built-in SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology. SUNIX iDevicePort® creates remoted COM channel that supports real time data communication, device sharing, Smart COM on/off-line deployment features. With SUNIX API (Application Programming Interface) and SDK (software development kit), software application designer can easily control and access I/O port without complicated programming under Mobile operation system.
SUNIX 2S+2U is a network-attached USB & RS-232 bub that connects USB & serial peripheral devices to a Mobile device over a Local Area Network. It adds dual USB 2.0 and RS-232 ports, enabling the mixing of USB and serial ports over the same network connection. By connecting to standard Wi-Fi router, Mobile devices can access remoted USB & RS-232 devices wirelessly. It’s the best and creative solution for commercial automation and retail POS applications.
Note: SUNIX iDevicePort® USB channel is compatible with bulk or interrupt type USB devices such as bar-code scanners, printers, fingerprint scanners, pole displays, card readers, and more. Isochronous USB devices are not supported.
SUNIX 2S+2U is a network-attached USB & RS-232 bub that connects USB & serial peripheral devices to a Mobile device over a Local Area Network. It adds dual USB 2.0 and RS-232 ports, enabling the mixing of USB and serial ports over the same network connection. By connecting to standard Wi-Fi router, Mobile devices can access remoted USB & RS-232 devices wirelessly. It’s the best and creative solution for commercial automation and retail POS applications.
Note: SUNIX iDevicePort® USB channel is compatible with bulk or interrupt type USB devices such as bar-code scanners, printers, fingerprint scanners, pole displays, card readers, and more. Isochronous USB devices are not supported.
Specifications
Serial Communication
| Interface | RS-232 | Baud Rate | 50bps ~115.2Kbps |
| Controller | SUNIX DPL2000Q | Stop Bit | 1, 1.5, 2 |
| BUS | Ethernet | Parity | even, odd, none, mark, space |
| No. of Port | 2-port | Flow Control | Xon/Xoff (software) |
| FIFO | 1Kbyte Hardware / per port | Connector | DB9 Male |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | ||
USB Communication
| Interface | USB 2.0 |
| No. of Port | 2 |
| Speed | Data Transfer rate of 1.5, 12, and 480Mbps |
| Signal | USB 2.0 / 1.1 |
| Connector | USB 2.0 Female |
Ethernet Communication
| No. of Port | 1-port, Ethernet Switch Port |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | RJ45 |
| Magnetic Isolation Protection | 1.0K Built-in |
Power Requirements
| Input Voltage | 5 VDC |
| Power Consumption | 15W @ 5VDC |
| Connector | DC-Jack |
Driver Support
| iOS | 8.x or later |
| Android | 4.x or later |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Physical Characteristics
| Housing | ABS, PC, Metal |
| Weight | 283 g |
| Dimensions | 190 x 119.58 x 27 (mm)，7.5 x 4.8 x 1.0 (inch) |
Accessories
Including Accessories
AC/DC Power Adapter 5VDC@3A
- US Type or EU Type x 1 pcs
Support
Download Manual
| Manual | iDevicePort Quick Installation Guide - 771IDPQIG000-S04 |
|
| Version | V1.0 | |
| Update | 2017-12-19 15:39:45 | |
| Size | 520.3KB |
Download Datasheet
| Datasheet | IDP220D00_DataSheet |
|
