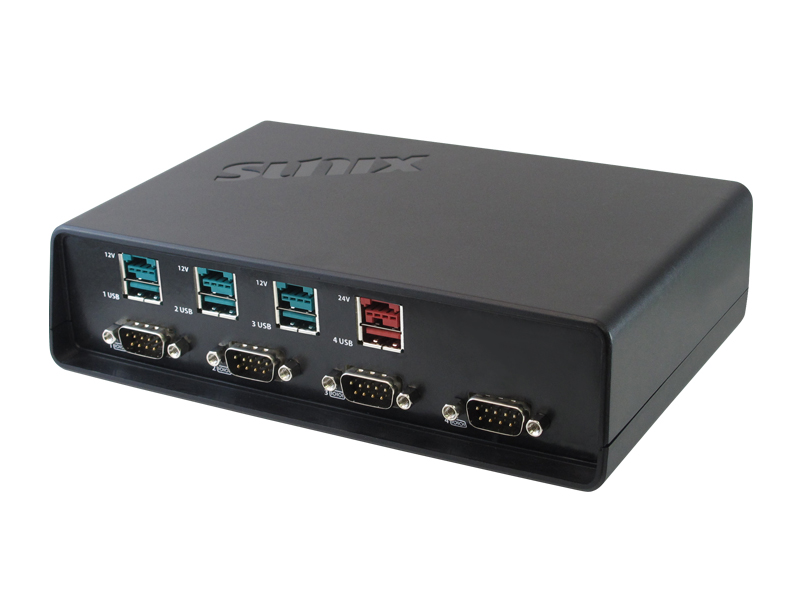

XPW4413D0

RS-232 / Powered USB Device Hub
  • Expands RS-232 serial and Powered USB ports over Ethernet networking.
  • COM port and USB interface are fully compatible with existing applications.
  • Built-in SUNIX DevicePort DPL2000Q High-Performance Ethernet-UART controller.
  • SUNIX DevicePort proprietary Ethernet I/O Redirection Technology.
    - Windows hosts can connect the peripheral device remotely through the network.
    - Physical USB and COM ports create in the Windows device manager.
    - Real-Time data transmitting without complicated IP settings.
  • ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
  • Support for Microsoft Windows 7, 8.x and 10 operating systems.

Introduction

SUNIX DevicePort® product is network-attached USB & RS-232 hubs that enables the mixing of USB and serial peripheral devices remoted connect to a Windows based PC/Tablet over a Local Area Network. Relocating the host PC/Tablet to a remote location translates to smaller workstations, enabling deployment without a local PC in kiosks, ATMs, restaurant kitchens, manufacturing lines or any hostile or non-secure area where having a local PC is not practical.

SUNIX DevicePort® built-in DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology. SUNIX DevicePort® creates physical USB and COM ports in system with real time data communication features. User can access USB and serial peripheral devices easily without complicated software configuration.

SUNIX XPW4413D0 is one of product within DevicePort® product family that is designed for retail POS application. With four Powered USB (24V & 12V) and four RS-232 ports, user can easily attach USB and serial channels with your Windows Tablet or small form factor desktop over Ethernet network. By connecting to standard Wi-Fi router, all connected devices go to wireless solution. SUNIX DevicePort® is the best and creative solution for commercial automation and retail POS applications.

Note: SUNIX iDevicePort® USB channel is compatible with bulk or interrupt type USB devices such as bar-code scanners, printers, fingerprint scanners, pole displays, card readers, and more. USB disk and Isochronous USB devices are not supported (e.g. USB-Audio/Video devices).

Specifications

Serial Communication

Interface RS-232 Baud rate 50bps ~921.6Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 4-port Flow Control
RTS/CTS (硬體控制)
Xon/Xoff (軟體控制)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal RS-232: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI

Powered USB

Interface Powered USB Baud rate Data Transfer rate of 1.5, 12, and 480Mbps
Controller SUNIX DPL2000Q Connector Powered USB Female
BUS Ethernet Signal USB 2.0 / 1.1
No. of Port 4-port Power Output Standard USB 2.0 Port:
+5VDC / Maximum 0.5A / each port
Powered USB Port:
+24VDC / Maximum / 3.0A / each port
+12VDC / Maximum / 3.0A / each port

Ethernet Communication

Number of Ports 1-port, Ethernet Port
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45

Power Requirements

Input Voltage 24VDC
Power Consumption 90W@24VDC
Connector Mini DIN (3 pin)

Driver Support

Microsoft Client 7 / 8.x / 10 (X86/X64)
Microsoft Server 2003 / 2008 / 2012R2 (X64)

Environment

Operation Temperature 0 to 80°C (32 to 176°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-14 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 460 g
Dimensions 190 x 123 x 46 (mm), 7.49 x 4.72 x 1.81 (inch)

Support

Download Datasheet

Datasheet XPW4413D0 DataSheet

Download Driver

Driver XPosManager Driver V1.0.3.0
Version Ver 1.0.3.0
Update 2019-03-12 09:34:32
Size 4.9MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Driver XPosManager_Driver_V0.0.1.19
Version Ver 0.0.1.19
Update 2017-07-20 15:23:41
Size 4.9MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
