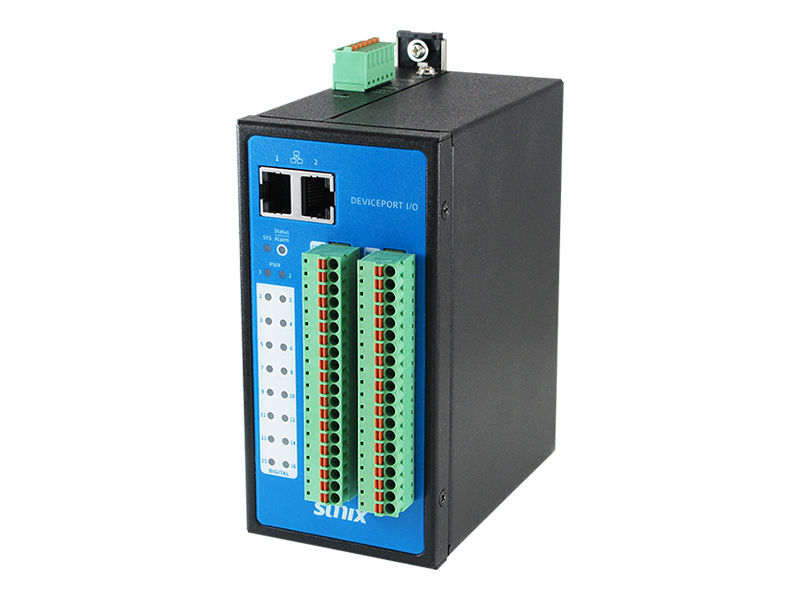

EZIDIDOFF
16-ch Digital Input/16-ch Digital Output Industrial Ethernet I/O
- 16-ch digital-in and 16-ch digital-out
- Built-in with SUNIX High-Performance Ethernet-IO controller
- Built-in dual 10/100 Ethernet ports for Ethernet cascading capability
- IP setting not required, enabling convenient and quick deployment configuration
- Supports daisy chain network topology for flexible and quick I/O expansion
- Automatic device enumeration mechanism facilitates terminal device networking
- Supports wall or rail (DIN) mounted
Introduction
SUNIX EZIDIDOFF utilizes SUNIX EAZInet networking technology to quickly expand 16 digital input and 16 digital output signals via Ethernet, allowing users to conveniently implement automation, swiftly incorporate the Internet of Things into their businesses, and raise their competitiveness.
SUNIX EZIDIDOFF does not require IP setting and supports full network topology, which substantially lightens the burden of network planning and management, shortens the hardware deployment process, and enables subsequent expansions to be executed more flexibly.
SUNIX EZIDIDOFF is capable of automatic device enumeration, which allows the console terminal to quickly search for terminal devices, thus enabling plug-and-play functionality. This greatly improves the convenience of system development for users.
SUNIX EZIDIDOFF does not require IP setting and supports full network topology, which substantially lightens the burden of network planning and management, shortens the hardware deployment process, and enables subsequent expansions to be executed more flexibly.
SUNIX EZIDIDOFF is capable of automatic device enumeration, which allows the console terminal to quickly search for terminal devices, thus enabling plug-and-play functionality. This greatly improves the convenience of system development for users.
Specifications
Digital Input
| Channels | 16 channels | ||
| Dry Contact |
Logic Level 0: Open Logic Level 1: Close to GND |
||
| Wet Contact |
Logic Level 0: 0 to 3V Logic Level 1: 10 to 50V |
||
| Input Resistance | 10㏀ | ||
| Isolation | 1k VDC | ||
| Over-Voltage Protection | 70VDC | ||
| Maximum frequency resolution of the counter inputs | 2 kHz | ||
Digital Output
| Channels | 16 channels | ||
| Output Type | NPN | ||
| Output Voltage Range | 3.5-30V | ||
| Normal Output Current | 500mA per Channel | ||
| Isolation | 1k VDC | ||
| Startup Value Setting | Yes | ||
| Communication Safety Value Setting | Yes | ||
Power Requirements
| Input Voltage | 5 to 48 VDC |
| Connector |
6 PIN Terminal Block
*Support 2 ports input power & relay output
*Support OVP
Note: the high-voltage power input priority first ,when multiple power inputs
|
LAN
| Ethernet | 2-port 10/100 Mbps RJ45 ports |
| Protection | 1.5 KV magnetic isolation |
| Protocols | SUNIX EAZInet |
Environmental Limits
| Operation Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 10 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
Standards and Certifications
| Hardware |
CE, FCC, VCCI, BSMI
|
Physical Characteristics
| Dimensions |
66.0 x 147.6 x 131.1 mm (2.60 x 5.81 x 5.16 in)
|
| Weight | 755g +-5% |
| Mounting | DIN rail or wall |
Accessories
Including Accessories
Din rail mounting kit
- Partner No.:5011-TRACK2C00-QCN
- 1 pcs
Support
Download Datasheet
| Datasheet | EZIDIDOFF Datasheet EN |
|
Download Guide
| Guide | Digital Input / Output & Analog Input Industrial DevicePort I/O Quick Installation Guide |
|
Download Driver
| Driver | DevicePortAdvanced V4.0.6.0_20220601 | |
| Version | Ver 4.0.6.0 | |
| Update | 2022-06-06 16:12:01 | |
| Size | 5.5MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
|
| API | EAZINET API V1.0.5.0 | |
| Version | V1.0.5.0 | |
| Update | 2022-04-15 17:22:45 | |
| Size | 5.4MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
|
