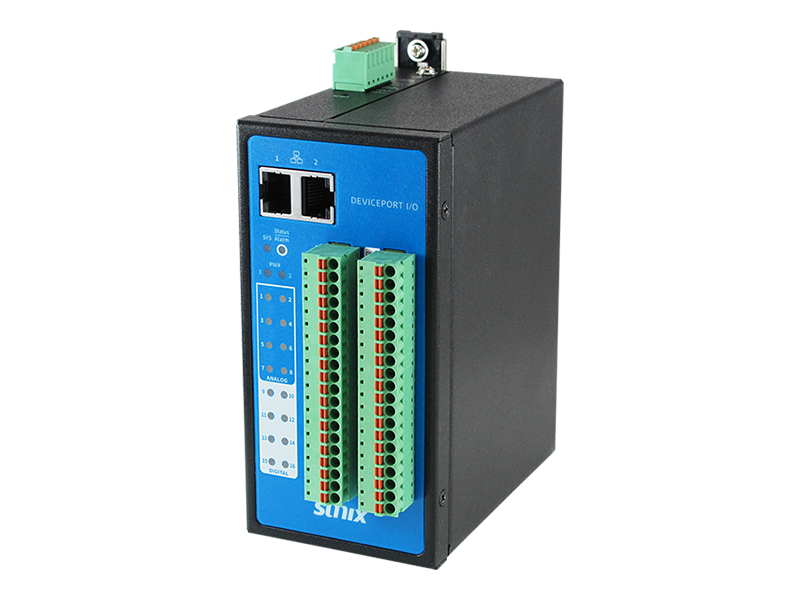

EZIAIDI8F

8-ch Analog Input, 16-ch Digital Input Industrial DevicePort I/O
  • 8-ch analog-in and 16-ch digital-in
  • Built-in with SUNIX High-Performance Ethernet-IO controller
  • Built-in dual 10/100 Ethernet ports for Ethernet cascading capability
  • IP setting not required, enabling convenient and quick deployment configuration
  • Supports daisy chain network topology for flexible and quick I/O expansion
  • Automatic device enumeration mechanism facilitates terminal device networking
  • Supports wall or rail (DIN) mounted


Introduction

SUNIX EZIAIDI8F utilizes SUNIX EAZInet networking technology to quickly expand 8 analog Input and 16 digital input signals via Ethernet, allowing users to conveniently implement automation, swiftly incorporate the Internet of Things into their businesses, and raise their competitiveness.
SUNIX EZIAIDI8F does not require IP setting and supports full network topology, which substantially lightens the burden of network planning and management, shortens the hardware deployment process, and enables subsequent expansions to be executed more flexibly.
SUNIX EZIAIDI8F is capable of automatic device enumeration, which allows the console terminal to quickly search for terminal devices, thus enabling plug-and-play functionality. This greatly improves the convenience of system development for users.

Specifications

Digital Input

Channels 16 channels
Dry Contact Logic Level 0: Open
Logic Level 1: Close to GND
Wet Contact Logic Level 0: 0 to 3V
Logic Level 1: 10 to 50V
Input Resistance 10㏀
Isolation 1k VDC
Over-Voltage Protection 70VDC

Analog Input

Channels 8 channels
Voltage Range
±100 mV ±500 mV,
±1 V , ±5 V, ±10 V
0~100 mV, 0~500 mV,
0~1 V , 0~5 V, 0~10 V
Current Range
±20mA, 4~20mA
Sampling Rates 20 Samples/Second Total
Input Impedance
•2MΩ:
±100mV, ±500mV, ±1V,
0~100mV, 0~500mV, 0~1V
•2.0MΩ:
±5V, ±10V,
0~5V, 0~10V
•120Ω:
±20mA, 0~20mA
Resolution 16-bit
Accuracy ±0.1% FSR
Span Drift ±25 ppm/℃
Zero Drift ±6 μ V/℃
Input Voltage Protection Built-in TVS/ESD Protection

Power Requirements

Input Voltage 5 to 48 VDC
Connector 6 PIN Terminal Block
*Support 2 ports input power & relay output
*Support OVP
Note: the high-voltage power input priority first ,when multiple power inputs

LAN

Ethernet 2-port 10/100 Mbps RJ45 ports
Protection 1.5 KV magnetic isolation
Protocols SUNIX EAZInet

Environmental Limits

Operation Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 10 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)

Standards and Certifications

Hardware
CE, FCC, VCCI, BSMI

Physical Characteristics

Dimensions 66.0 x 147.6 x 131.1 mm (2.60 x 5.81 x 5.16 in)
Weight 755g +-5%
Mounting DIN rail or wall

Accessories

Including Accessories

Din rail mounting kit
  • Partner No.:5011-TRACK2C00-QCN
  • 1 pcs

Support

Download Datasheet

Datasheet EZIAIDI8F Datasheet EN

Download Guide

Guide Digital Input / Output & Analog Input Industrial DevicePort I/O Quick Installation Guide

Download Driver

Driver DevicePortAdvanced V4.0.3.0
Version Ver 4.0.3.0
Update 2021-02-08 14:22:48
Size 5.5MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
API EAZINET API V1.0.3.0
Version Ver 1.0.3.0
Update 2021-02-08 17:26:41
Size 2.9MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
