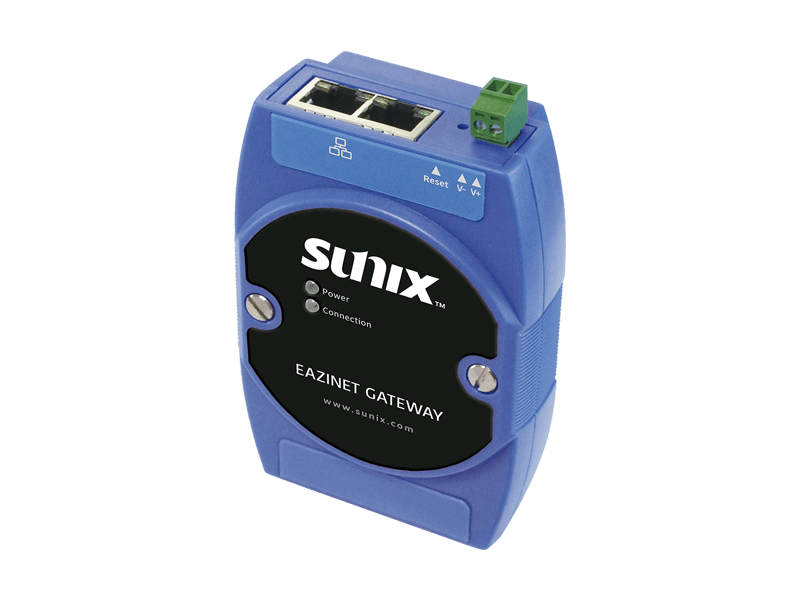

EZG1200 (phased out) (Replacement: EZG1300)
Azure IoT Central Gateway
- Built-in SUNIX EAZInet technology to facilitate the connection of EZR & EZI Ethernet I/O modules
- Built-in Microsoft Azure service for establishing direct connections with Azure IoT Central
- Built-in Modbus Protocol Agent, convenient for customers to retrieve various sensor data
- Built-in dual 10/100 Ethernet ports for Ethernet cascading capability
- Support daisy chain topology, expand more fast and flexible
- Support EZR, EZI series I/O interface automatic enumeration mechanism, making configuration easier
- Support Wall Mounting & DIN-rail Mounting Installation
Introduction

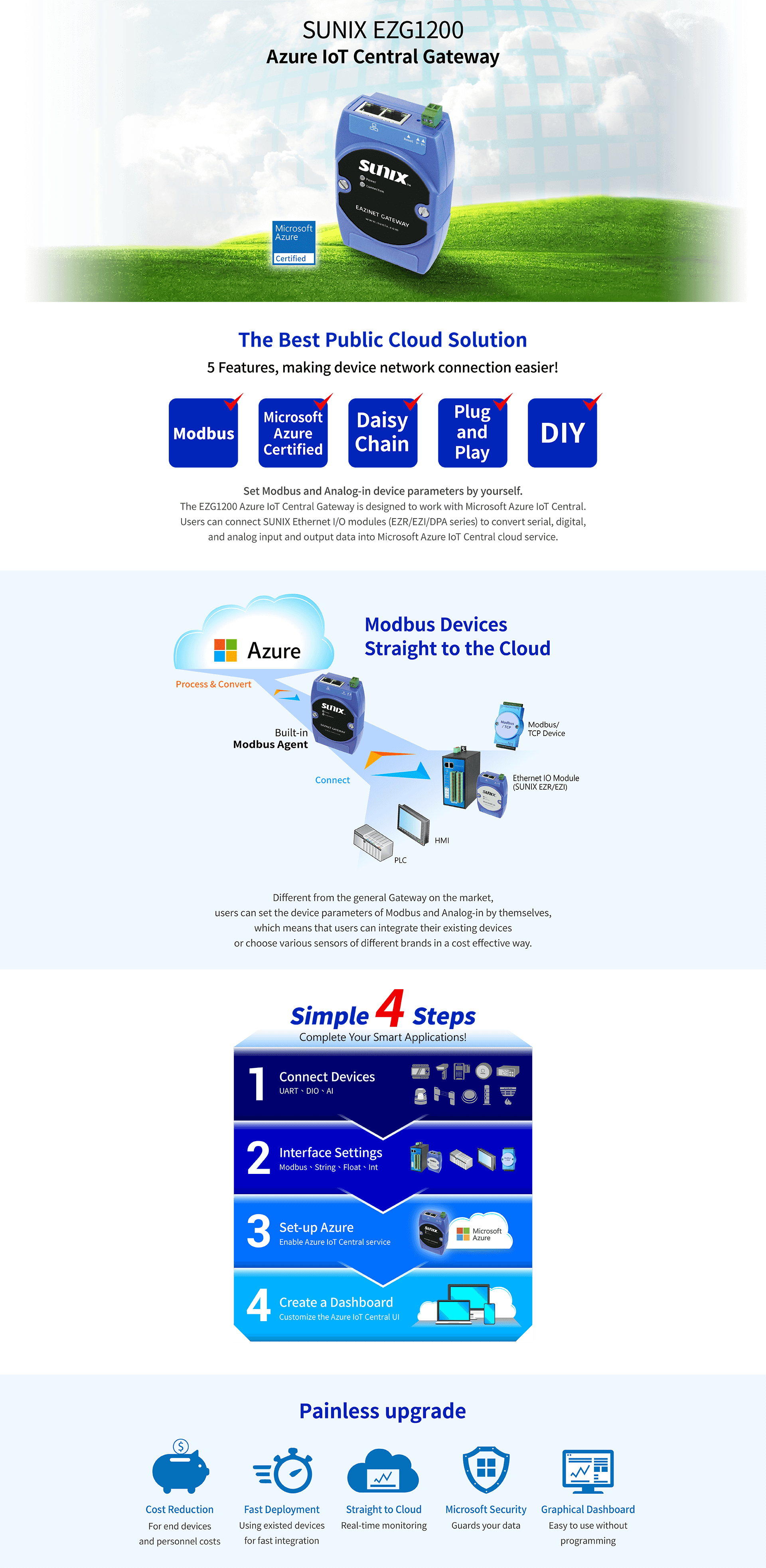

The EZG1200 Azure IoT Central Gateway is designed to work with Microsoft Azure IoT Central. Customers can connect SUNIX Ethernet I/O modules (EZR & EZI series) to convert serial, digital, and analog input and output data into Microsoft Azure IoT Central cloud service. For serial port and Modbus equipment, EZG1200 has a built-in Modbus Protocol Agent. Customers can use an agent to collect Modbus data and directly convert it into Azure IoT Central cloud service to realize the plug-and-play function, so that users can greatly improve the convenience of system development.
Features
Specifications
LAN
| Ethernet | 2-port 10/100 Mbps RJ45 ports |
| Protection | 1.5 KV magnetic isolation |
| Protocols | SUNIX EAZInet |
Physical Characteristics
| Dimensions | 72.1 x 108 x 33.9 mm (2.83 x 4.25 x 1.33 in) |
| Weight | 118 g |
| Mounting | DIN rail or wall |
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 3 PIN Terminal Block |
Environmental Limits
| Operation Temperature | -25 to 70°C (-13 to 158°F) |
| Operation Humidity | 5 to 95% RH(non-condensing) |
| Storage Temperature | -30 to 75°C (-22 to 167°F) |
Standards and Certifications
| EMC | EN 55032, EN 55035 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 |
| ESD | Contact: 4 kV; Air: 8 kV |
Support
Download Manual
| Manual | EZG1200 Gateway Manual |
|
| Version | Ver. 3.0 | |
| Update | 2021-10-28 16:26:32 | |
| Size | 2.5MB |
| Manual | EZG1200 Gateway Manual |
|
| Version | Ver. 1.0 | |
| Update | 2021-08-27 10:13:44 | |
| Size | 1.6MB |
Download Datasheet
| Datasheet | EZG1200 Datasheet EN |
|
Download Firmware
| Firmware | EZG1200_MT0_V2_3_1 | |
| Version | Ver 2.3.1 | |
| Update | 2024-01-03 14:05:05 | |
| Size | 5.2MB | |
| OS | NULL |
| Firmware | EZG1200_MT0_V2_0_2 | |
| Version | Ver 2.0.2 | |
| Update | 2021-08-20 09:52:35 | |
| Size | 5.4MB | |
| OS | NULL |
| Firmware | EZG1200_MT0_V1_38 | |
| Version | Ver 1.38 | |
| Update | 2021-02-26 18:56:19 | |
| Size | 5.3MB | |
| OS | NULL |
