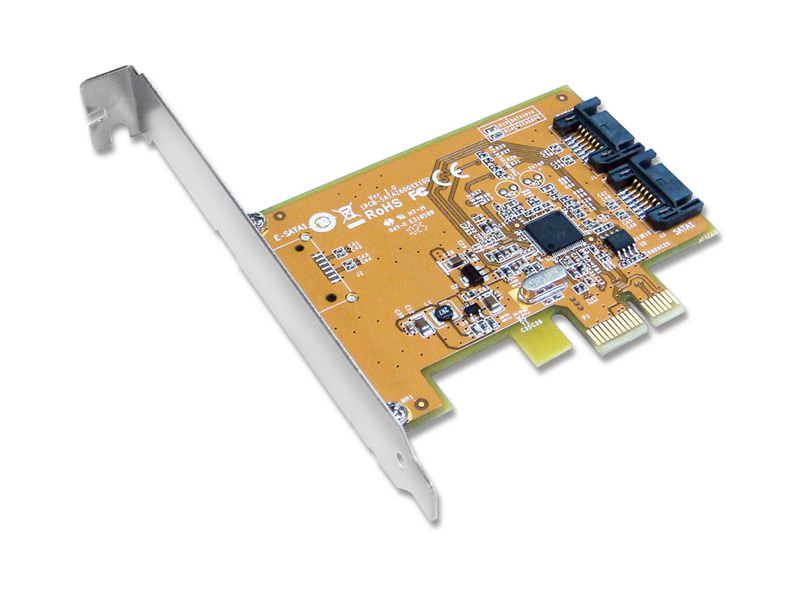

SATA2600 (phased out)
Serial - ATA Ⅲ 6G 2-port PCI Express RIAD Controller
- Supports PCI Express Specification Revision 2.0. (Compatible with PCI Express 1.0)
- Extends two Serial ATA Gen3 6Gb/s ports. (Compatible with SATA Gen1 and 2)
- Native Command Queue (NCQ) on SATA port.
- Supports up to two storage devices connection with RAID 0 and 1.
- Hardware RAID design reduces the system resource loading.
- Built-in 2 standard SATA ports connectivity.
- Works with various brands of large capacity SATA hard disk drives.
- Low-profile design fitting for kinds of computer chassis (Optional).
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
- Support Microsoft Windows and Linux.
Introduction
SATA2600 is a single-chip, PCI Express to two Serial-ATA (SATA) GenⅢ 6Gb/s channels RAID host controller that brings server-class features to the desktop. SATA2600 equips MARVELL high performance PCI Express chipset which supports all Serial ATA Ⅰ, Ⅱ, and Ⅲ features. SATA2600 enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Besides, PCI Express 2.0 double the bandwidth of the existing PCI Express bus for faster data throughput. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It also backward compatible with previous generation of PCI-Express 1.0 technology.
Specifications
Description |
|
| Product Description | Serial - ATA Ⅲ 6G 2-port PCI Express RIAD Controller |
Serial Communication |
|
| Interface | Single-Lane (x1) PCI Express Gen2 |
| Controller | MARVELL |
| Mode | Serial-ATA Generation- Ⅲ |
| Port | Two internal SATA ports |
| Speed | SATA III transfer rate of 6.0Gbps, 3.0Gbps 1.5Gbps |
O.S. support |
|
| Windows 2000/XP/2003/Vista/7/8/8.1 (32/64-bit) ,Linux 2.6x, and DOS | |
Certification |
|
| CE, FCC, VCCI, BSMI | |
Environment |
|
|
Operation temp.: 0 °C ～ 57 °C Storage temp.: -20 °C ～ 85 °C Operation humidity: 5 ～ 95% RH |
|
Package Contents |
|
|
1. SATA2600 2. User Manual 3. CD Driver 4. Serial-ATA internal Cable 50cm (Optional) |
|
Accessories
Optional Accessories
- Length : 50cm
- Partner No.: 1WST-A7050A12B0003
Support
Download Manual
| Manual | 771-SATA26000-002 |
|
| Version | Ver 1.0 | |
| Update | 2013-05-16 10:27:53 | |
| Size | 2.5MB |
Download Datasheet
| Datasheet | SATA2600 Datasheet V10 |
|
Download Driver
| Driver | 9130_Utility_MSU_4.1.0.2023.zip | |
| Version | MSU_V4.1.0.2023 | |
| Update | 2015-01-23 09:40:23 | |
| Size | 41.1MB | |
| OS |
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
|
| Driver | 9130_V1.2.0.1041-WHQL | |
| Version | V1.2.0.1041 | |
| Update | 2015-01-23 09:37:41 | |
| Size | 1.5MB | |
| OS |
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
|
| Driver | driver 1.2.0.1014.zip | |
| Version | 1.2.0.1014 | |
| Update | 2011-12-15 14:40:17 | |
| Size | 2.2MB | |
| OS |
Windows XP SP3 32/64 bit
|
