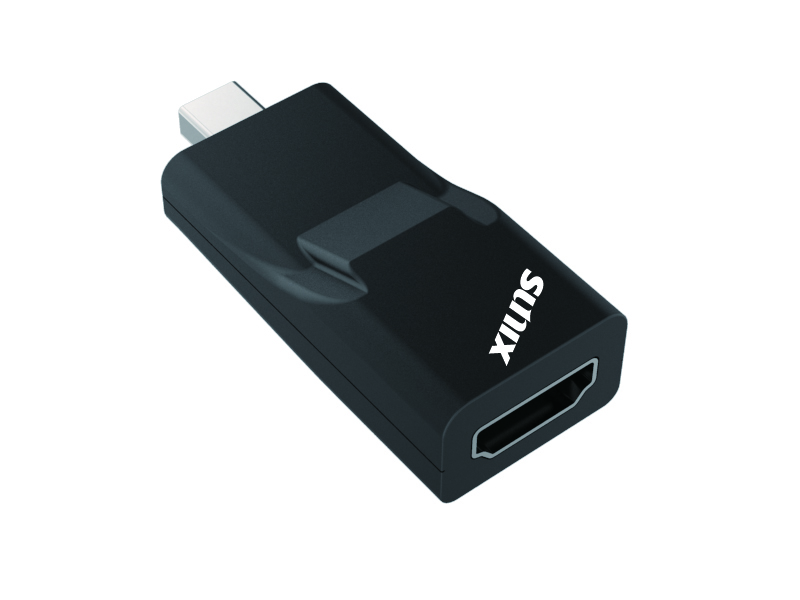

D2H23N0

Mini DisplayPort to HDMI Dongle
  • Connect a HDMI-capable display to a Mini DisplayPort-equipped PC or Mac® computer.
  • Converts audio and video to any device display enabled with HDMI® technology.
  • DisplayPort 1.2 Dual Mode v1.1 Type 1 SPEC.
  • Compliant with HDMI 1.4b specification with 4K Ultra HD (2160p) resolution and stereoscopic 3D.
  • Plug and play, no software to install or external power needed.
  • Certified by CE, FCC, VCCI, BSMI and, RoHS.
*Display 4K resolution conditions:
-Please make sure your display and graphics card support 4K resolution.
-Please make sure your DisplayPort is compliant with DisplayPort 1.2 Dual Mode v1.1 Type 1 SPEC.
(DisplayPort v1.1 Type 2 support 1080p full HD resolution only)

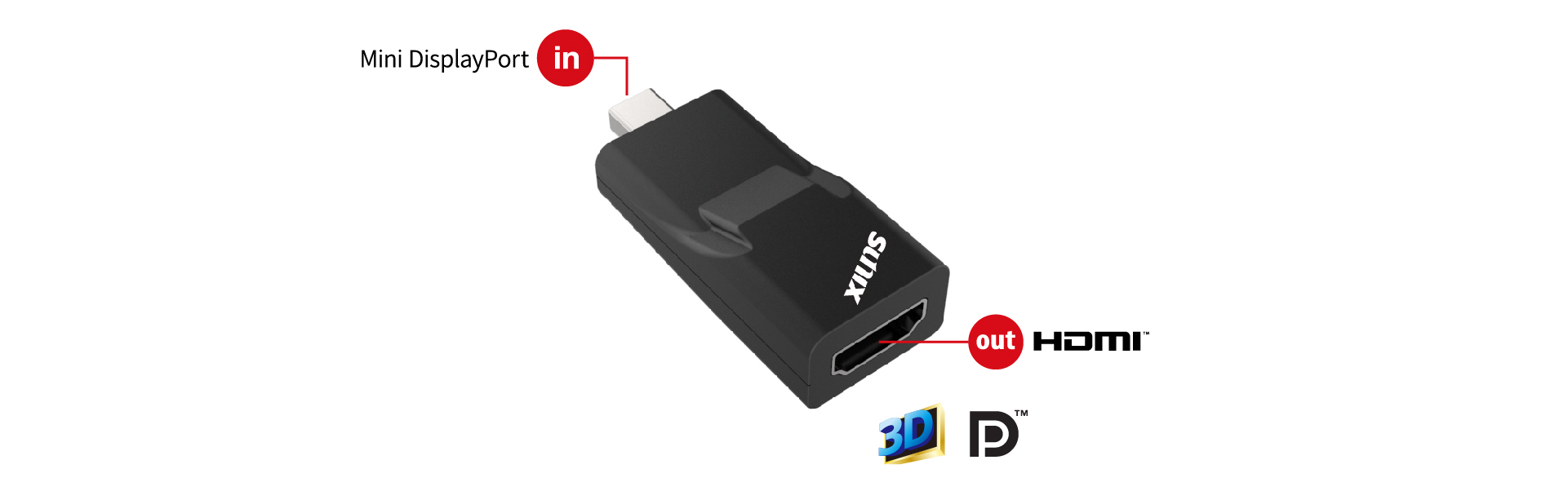

Introduction

SUNIX D2H23N0 Mini DisplayPort to HDMI dongle offers a cost-effective HDMI/Mini DisplayPort link, letting you connect an HDMI display to a device with a Mini DisplayPort output while saving the expense of upgrading the monitor for compatibility. With portable pocket size and DisplayPort bus power source, it supports PC resolutions of up to 4K Ultra HD and HDTV up to 2160p.  This high-resolution adapter offers plug and play functionality to provide an audio and video conversion without software or drivers.

Features

  • Compliant with DisplayPort 1.2 Dual Mode v1.1 Type 1 and HDMI 1.4 SPEC

  • Driver free under Apple OSX, Google Chrome and Microsoft Windows

  • Suitable for HDMI-enabled TV, monitor and projector

  • Connect a HDMI monitor to a Mini DisplayPort equipped laptop

  • So thin that works with others smoothly

  • Shielding Case’s anti-jamming capability gives high quality signal

Film

uplaod date:  2013-07-07 14:56:29
Description:
SUNIX Video Dongle Series provide you full range of HDMI, VGA, DisplayPort outputs.

Specifications

Model D2H23N0
Description Mini DisplayPort to HDMI Dongle
Input Interface
DisplayPort 1.2 Dual Mode / 1.1 Type 1
Mini DisplayPort Male
Output Interface
HDMI 1.4b
Standard HDMI Female
Display Resolution VGA 640x480
SVGA 800x600
XGA 1024x768
720p 1280x720
WXGA+ 1280x768
WXGA 1280x800
SXGA 1280x1024
WXGA+ 1366x768
SXGA+ 1400x1050
UXGA 1600x1200
WSXGA+ 1680x1050
1080p 1920x1080
WUXGA 1920x1200
QXGA 2048x1152
WQXGA 2560x1600
2160p 3840x2160
Audio Yes (audio pass-through)
Housing ABS
Power
DisplayPort Bus power
250mW @ 3.3VDC

Environment

Operation temp. 0 °C ~ 40 °C (32-104°F)
Operation humidity: < 85% non-condensing
Storage temp. -10 °C ~ 85 °C (14~176°F)
Dimension 53.55L x 22W x 13.2H mm
Weight 15g (0.5oz)
Compliance EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI

Note:
* DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported).
* Compatible with Intel Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Support

Download Datasheet

Datasheet D2H23N0 Datasheet

Download Driver

Driver Driver Free
OS
driver Free
