A2CZ0T0

USB 3.1 Type-A to Type-C Active Dongle
  • USB 3.1 Gen2 SuperSpeed+ 10G data performance.
  • Built­in intelligent USB­C data switch and C.C. controller.
  • Plug USB­-C device or cable in either one of two orientations.
  • 5VDC@1000mA power charging with over current protection.

Introduction

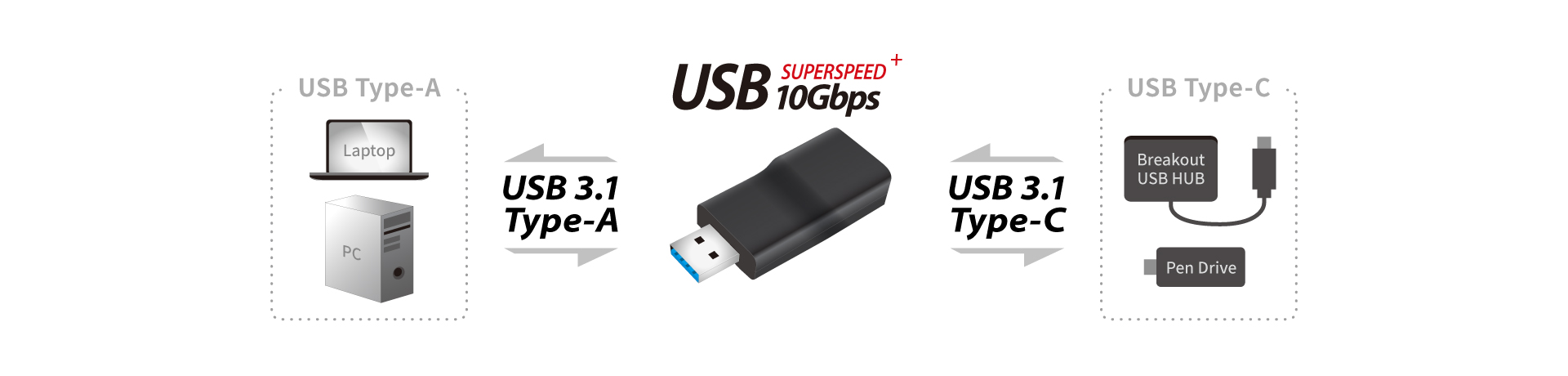

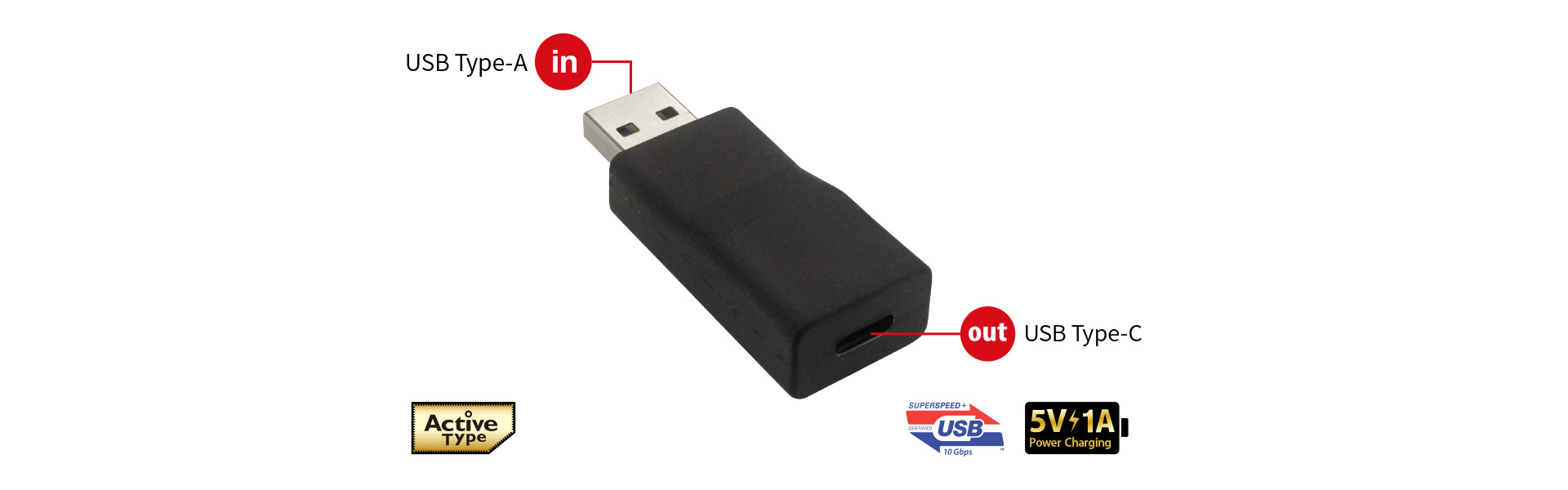

SUNIX A2CZ0T0 is an active USB interface converter with a male USB Type­A and a female USB Type­C receptacle, allowing you to plug new coming USB­C device or cable into your existing computer laptop. SUNIX A2CZ0T0 built­in active USB­C switch and C.C. controller, therefore you can plug USB­C device or cable in either one of two orientations, as well as USB 3.1 SuperSpeed 10G data transfer performance and 5V@1000mA power charging with over current protection.

Features

  • USB 3.1 Type-A to Type-C Active Dongle
  • Driver free under Apple OSX, Google Chrome and Microsoft Windows
  • Upgrade the USB 3.1 Type-A port of your  Laptop / PC into USB 3.1 Type-C instantly

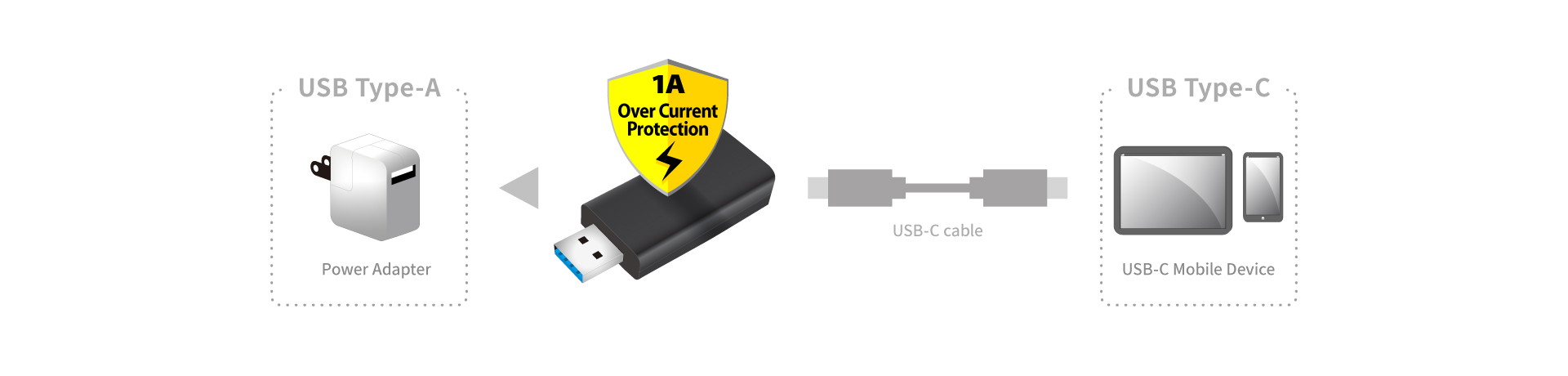

  • Connect your USB-C laptop / mobile device to a easy-to-get USB Type-A charger

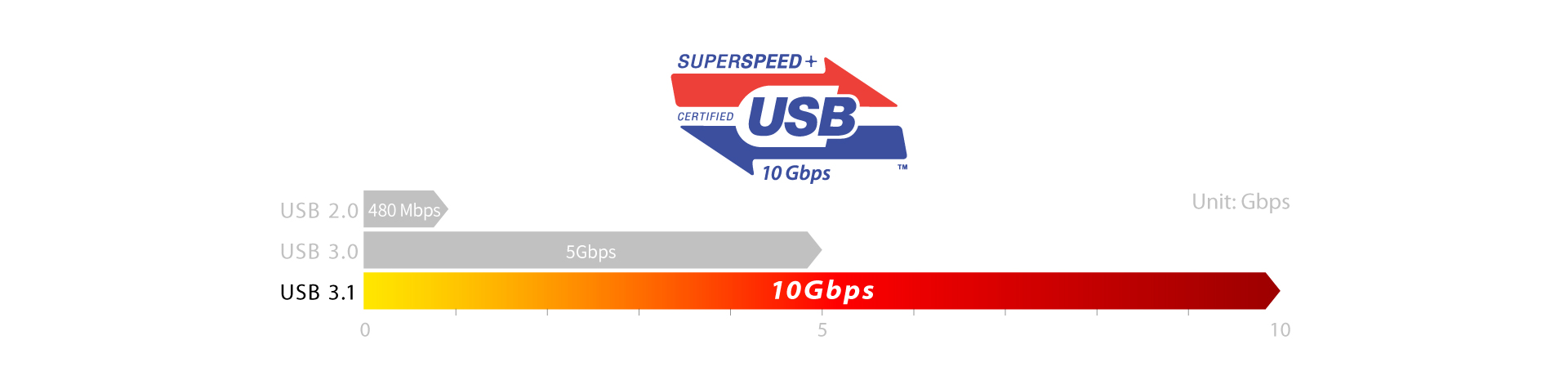

  • Supports USB 3.1 SuperSpeed+ transfer rate
  • Built in Active USB­-C Controllers

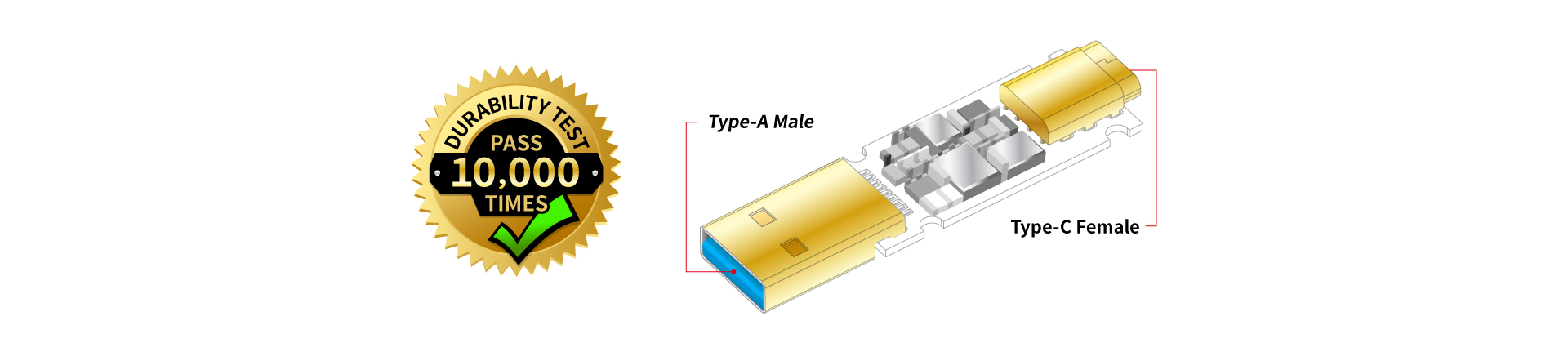

  • Connector Durability Test Pass 10,000 Times​

Note: This dongle supports both USB data communication and power charging features, but NOT support USB­C DisplayPort™ Alternate Mode video device, such as USB­C to HDMI adapter.

Specifications

Model A2CZ0T0
Description USB 3.1 Type­A to Type­C Active Dongle
Input Interface USB 3.1 10G Type­A Male
Output Interface USB 3.1 10G Type­C Female
Power
USB Bus Power +5VDC @ 1000mA
With power over current protection.
Performance Data Transfer rate of 1.5/12/480/5000/10000 Mbps.
Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps),
SuperSpeed(5Gbps), SuperSpeed USB(10 Gbps)
Housing TPE (Plastic)
Driver Support Driver free under
Apple MAC, Google Chrome, and Microsoft Windows
Environment Operation temp. 0 °C ~ 60 °C (32­~140°F)
Operation humidity: < 85% non­condensing
Storage temp. ­10 °C ~ 85 °C (14~176°F)
Regulatory Approvals EUR: CE, EN55022 Class B, EN55024, EN61000­3­2, EN61000­3­3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
Green Environment RoHS, CRoHS, WEEE
Weight 15g (0.5oz)
Dimensions 51.45(L) x 20(W) x 12(H) mm



Support

Download Datasheet

Datasheet A2CZ0T0 Datasheet

Download Driver

Driver Driver Free
