VGA0429L

PCIe DVI-I 2D Power Saving Graphics Controller Low Profile
  • Fully compliant with PCI Express 1.1 specification.
  • Built-in standard DVI-I (single-Link) connection.
  • Ultra-Low power consumption 2W makes heat sink free.
  • Max 2D resolution FullHD 1920x1080 resolution.
  • Certified by CE, FCC, VCCI, BSMI, and RoHS.
  • Supports a variety operation system, including Windows and Linux operation systems.

Introduction

VGA0429L graphics card which built-in ultra power saving graphics controller is specializes in commercial and industrial applications environments, only 2W ultra low power consumption, no heat-sink or fan needed, it is not only substantial increase in system MTBF rate and also best choice for green environmental protection energy conservation. With high quality 2D 1920x1080 FullHD resolutions, 16.7M colors output, various drivers supporting, PCI Express Bus cost efficient design, and low profile slim size dimensions.. SUNIX VGA0429L is the high value and reliable graphics solution for server and cost conscious systems, such as servers, Thin Clients, ATM, POS system and industrial PC. This card is the best solution for multi-screen and expanding business opportunities.

Specifications

Serial Communication

Interface PCI Express (x1)
Controller Siliconmotion SM750
Memory 16MB DDR Synchronous DRAM (SDRAM)
Port Type DVI-I 24pin + 5pin Female Connector (single-Link)
Power Consumption 2W

Driver Support

Windows Client XP/Vista/7/8/8.1/10 (X86/X64)
Windows Server 2003/2008 (X86/X64)
Linux Linux 2.x/3.x
DOS DOS

Regulatory Approvals

Hardware EMC • EUR: CE EN55022 Class B, EN55024
• US: FCC Part 15 Class B
• TAIWAN: BSMI: CNS13438
• JAPAN: VCCI
Software Driver Microsoft WHQL Windows
• Windows Client: XP/7/8/8.1 (X86/X64)
• Windows Server: 2003/2008 (X64)

Environment

Operation Temperature -10 to 70°C (-13.9 to 158°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 67.5(W) x - 112(L)mm
Bracket Low Profile 80 mm
Bracket Space 1

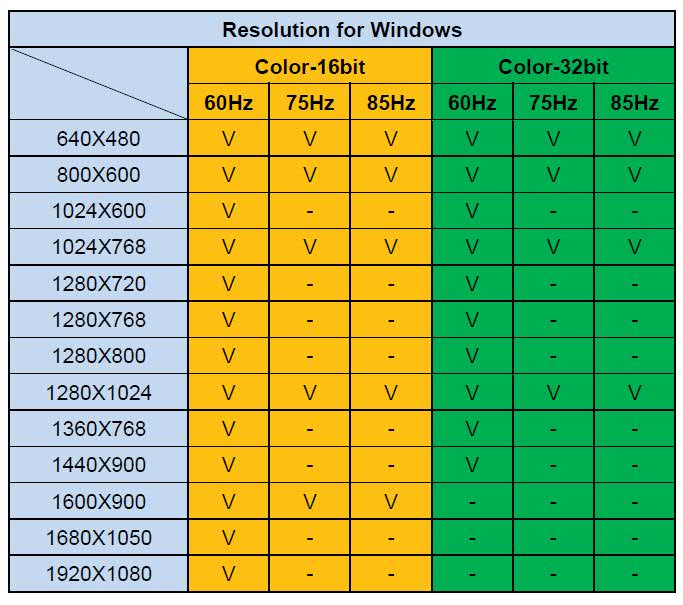

Resolution Support

Support

Download Manual

Download Datasheet

Datasheet VGA0429L Datasheet

Download Driver

Driver VGA04X9M
Version Win8_8.00.01.54_MS_logo
Update 2015-05-11 09:45:09
Size 569.2KB
OS
Windows 8.1 32/64 bit
Driver VGA04X9
Version V62
Update 2015-05-11 09:44:30
Size 630.8KB
OS
Windows 7 32/64 bit
