UPD2018

USB 3.1 10G & DisplayPort Alt-Mode PCI Express Host Card with Dual USB Type-C Receptacles
  • PCI Express Base Specification Revision 3.0 single-lane (x1).
  • Expands dual external USB 3.1 Super-Speed plus Type-C port (DFP) on the system.
  • Compliant with Universal Serial Bus 3.1 specification Gen2.
  • Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
  • Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
  • Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
  • USB port supplies +5VDC / 1.5A power output to USB device with over current protection.
  • Compliant with DisplayPort 1.2 spec with HDTV 4K @ 60Hz (2160p) resolution and stereoscopic 3D.
  • Compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.
  • Hot-swapping feature allows connect/disconnect device without powering down the system.
  • Driver supports for Microsoft Windows 7, 8.x, and 10 operation systems.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.

Introduction

SUNIX UPD2018 is a Dual-port Super-Speed+ USB 3.1 10G PCI Express add-on card, and it’s compliant with the PCI Express Gen3 specification for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 10 Gbps for data transfer when connecting to USB 3.1 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.1 performance is 2 times faster than USB 3.0 and 20 times faster than USB  2.0 connectivity. In additional, one USB Type-C port supports DisplayPort Alternate-mode for video output, and the other is an USB data-only port

With USB Type-C Receptacle, SUNIX UPD2018 supports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. The new connector is smaller and thinner design, but drive higher power output capacity to USB device. SUNIX UPD2018 supports 5VDC@1500mA power output to USB device with over current protection on each USB port. This card is an ideal choice for external storage, smart phone, webcam, video devices, and all other USB electronic devices.

Features








Specifications

Hardware

BUS PCI Express Spec 3.0, Single-Lane (x1)
Controller PCI Express USB 3.1 Host controller, Asmedia ASM1142
USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1
IRQ & IO Assigned by System

USB Communication

Interface Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1
Speed SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)
No. of Port 2-port
PCB Connector USB 3.1 USB Type-C port (Downstream Facing Port)
Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge

Video / Audio

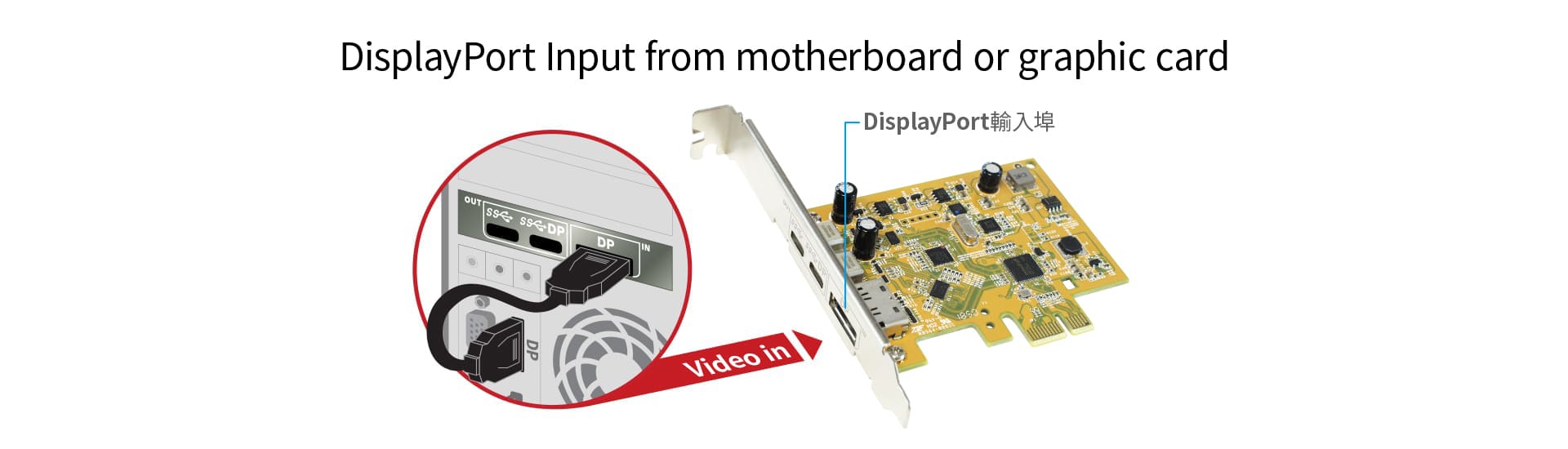

Input Interface Standard DisplayPort Female, DisplayPort Ver1.2/1.1
Output Interface USB Type-C port
Resolution
Depends on connected DisplayPort video source.
Maximum resolution supports 4096x2160 (3840x2160) @ 60Hz
Audio Yes (audio pass-through)

Power

Source PCI Express Bus Power
Output Capacity USB Type-C Port:
Power Delivery +5VDC / 1.5A / each port
Note: Total power output capacity will be limited by system power supply.
Over Current Protection USB Type-C Port:
+5VDC / 1.5A / each port / Power Switch
Power Consumption 3.0W @ 3.3V (board only without power output to USB device)

Driver Support

Windows Windows 7 (X86/X64)
Windows 8.x / 10 (X86/X64) (Windows in-box driver)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)

Regulatory Approvals

EMC • EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
• US: FCC Part 15 Class B
• TAIWAN: BSMI: CNS13438
• JAPAN: VCCI
Green RoHS, CRoHS, WEEE

Physical Characteristics

PCB Dimension 85.30x 55.75 mm
Bracket Standard 120 mm (Low Profile 80mm)
Bracket Space 1

Accessories

Including Accessories

DisplayPort to DisplayPort Cable
  • DisplayPort Male to DisplayPort Male Cable
  • Length : 240mm
  • 1 pcs.

Support

Download Manual

Manual UPD2018 Quick Installation Guide

Download Datasheet

Datasheet UPD2018-Datasheet

Download Driver

Driver ASMUSBHost_V116401WHQL
Version V116401WHQL
Update 2017-03-17 18:00:07
Size 9.5MB
OS
Windows 10 32/64 bit
Windows 8 32/64bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 32/64 bit
Windows Server 2003 32/64 bit
