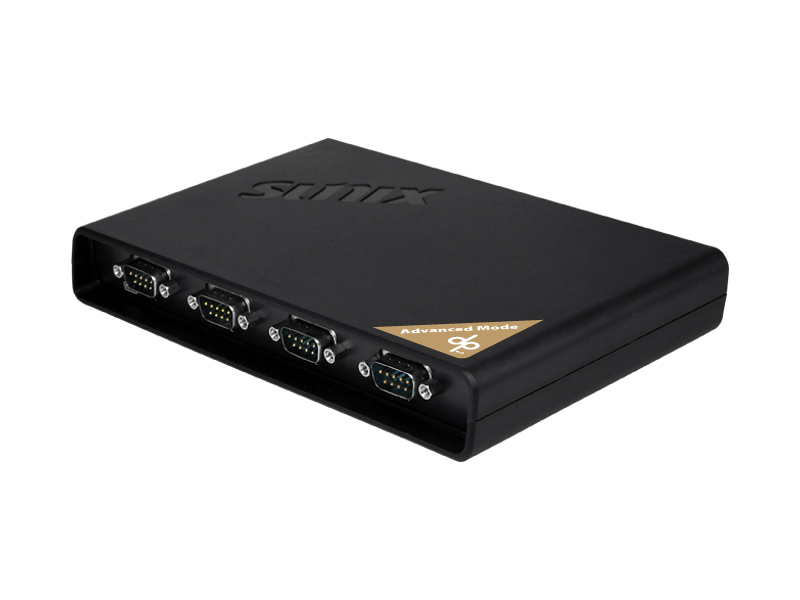

DPAS04H00

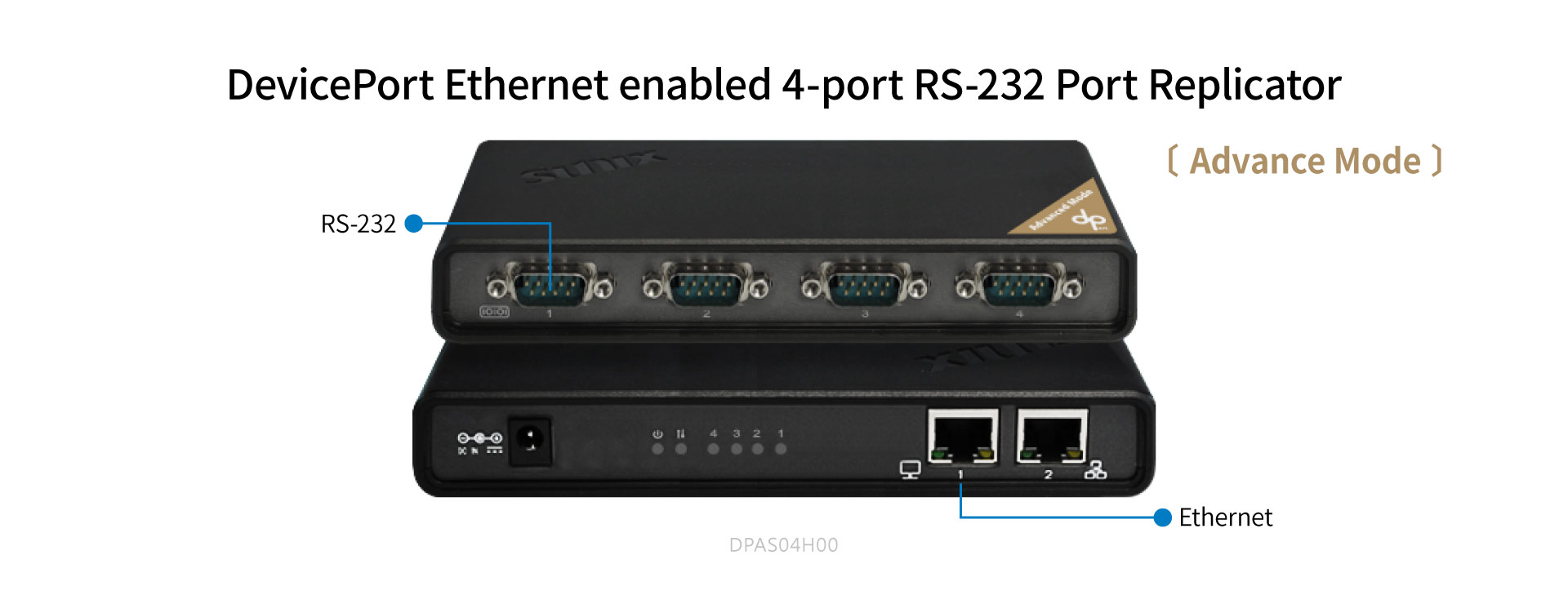

DevicePort Advanced Mode Ethernet enabled 4-port RS-232 Port Replicator
  • Expands 4 RS-232 serial ports over Ethernet or WiFi.
  • Communication speeds up to 115.2Kbps.
  • Real-Time data transmitting (Real COM) without complicated IP setup.
  • COM Port Auto-Detect and Port-Mapping supports Plug-N-Play.
  • Built-in with SUNIX DPL2000Q  QiuNiu High-Performance Ethernet-UART controller.
  • Built-in dual 10/100 Ethernet ports for Ethernet cascading capability.
  • Compatible with existing software and AP.
  • To make wiring simple, fast, and more space efficient.
  • Easy maintenance with Fixed COM number and Hot-Swap.
  • SUNIX DevicePort proprietary Ethernet I/O Redirection Technology.
  • Supports Daisy Chain Topology and up to 255 COM ports expansion.
  • Data buffer prevents any unforeseen data loss during a connection failure.
  • Flexible port configuration with DevicePort on/off-line smart COM deployment.(Note 2)
  • 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
  • Low power consumption design of 2.5W for meeting Green Environmental movement.
  • Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

Introduction

DPAS04H00 allows users to expand four RS-232 ports over Ethernet connection, and it works on any windows based desktop, thin client, laptop, All-in-one, and tablet PC computers. With SUNIX DPL2000Q QiuNiu High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology, DevicePort® creates physical COM ports that support real time data communication, Smart COM on/off-line deployment, and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration. SUNIX DevicePort improves solution deployment efficiency to achieve greater reliability in commercial and industrial automation applications.


Features








Film

Specifications

Serial Communication

Interface RS-232 Baud rate 50bps ~115.2Kbps
Controller SUNIX DPL2000Q  QiuNiu Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 4-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line

Ethernet Communication

Number of Ports 2-port, Ethernet Switch Port
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Power Requirements

Input Voltage 5 to 12VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack

Driver Support

Windows Client XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)

Environment

Operation Temperature 0 to 45°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 283 g
Dimensions 190x119.58x27(mm), 7.5x4.8x1.0 (inch)

Note:
1.DevicePort Advance Mode limits specific Ethernet port connection, and it does not works on router operation.
2.DevicePort on/off-line smart COM deployment.
   - Auto connection and mapping with MAC address bound.
   - Keeps physical COM port in system when DevicePort under off-line mode.
   - Serial signal staging until DevicePort recovery back to on-line mode.


Accessories

Including Accessories

Power Adapter 5VDC@1A (US / EU)
  • Partner No.: 1AAC-B205V10U10000 (US Type)
  • Partner No.: 1AAC-B205V10E10000 (EU Type)
  • US Type or EU Type x 1 pcs
Power Jack to USB TyepA Male Cable
  • (ψ5.5 *ψ2.0 / 120cm)
  • Partner No.: 1WDC-Y1120G4100000
  • 1 pcs

Support

Download Manual

Manual DevicePort Advanced RS-232

Download Datasheet

Datasheet DPAS04H00 Datasheet

Download Guide

Guide Advanced-Serial

Download Driver

Driver DevicePortAdvanced V4.0.0.0
Version Ver 4.0.0.0
Update 2020-09-17 10:48:15
Size 5.5MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64Bit
Windows Server 2008 R2 SP1 64bit
API DevicePort EZIO API v1.0.1.2 (for Driver v4.0.0.0)
Version Ver 1.0.1.2
Update 2020-09-17 10:53:24
Size 1.5MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64Bit
Windows Server 2008 R2 SP1 64bit
Driver DevicePortAdvanced V3.0.8.0
Version Ver 3.0.8.0
Update 2020-01-21 14:34:24
Size 7.3MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64Bit
Windows Server 2008 R2 SP1 64bit
Driver DevicePortAdvanced XP V2.1.8.0
Version Ver 2.1.8.0
Update 2018-02-08 18:30:11
Size 5.7MB
OS
Windows XP 32bit
Driver Linux TTY Driver Ver 1.0.15.0
Version Ver 1.0.15.0
Update 2019-09-16 15:21:59
Size 2MB
OS
CentOS7.0
Ubuntu 11.10
Ubuntu 12.04
Ubuntu 13.10
Ubuntu 14.04
Ubuntu 14.10
Ubuntu 15.04
Ubuntu 15.10
Ubuntu 16.04
