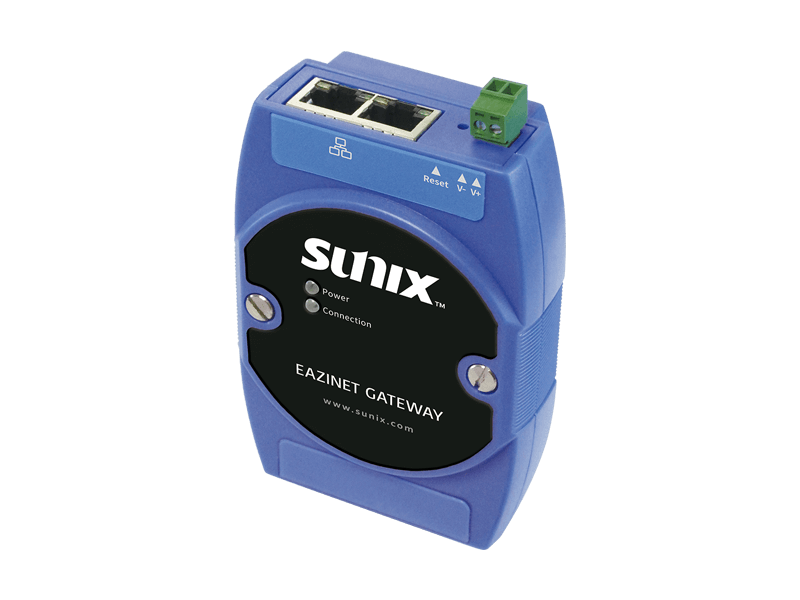

EZG1300

MQTT Gateway
  • Built-in SUNIX EAZInet technology to facilitate the connection of EZR & EZI Ethernet I/O modules
  • Support Modbus TCP devices connection
  • Support generic MQTT service for direct connections with common public cloud
  • Built-in Modbus Protocol Agent, convenient for customers to retrieve various sensor data
  • Built-in dual 10/100 Ethernet ports for Ethernet cascading capability
  • Support Diagnostic function, which can quickly ensure the correctness of cloud data by confirming the connection status and setting content of the underlying devices.
  • Support daisy chain topology, expand more fast and flexible
  • Support EZR, EZI I/O interface automatic enumeration mechanism, making configuration easier
  • Support Wall Mounting & DIN-rail Mounting Installation

Introduction

The EZG1300 is a gateway that supports generic MQTT service. Customers can use SUNIX Ethernet I/O modules (EZR & EZI series) to connect various types of devices, and to convert Modbus, digital I/O, and analog I/O data into common public cloud through the MQTT Protocol. For Modbus equipment, EZG1300 has a built-in Modbus Protocol Agent. Without programming, through simple setting can collect data and directly convert it into MQTT Protocol, so that users can greatly improve the convenience of system development.

Features

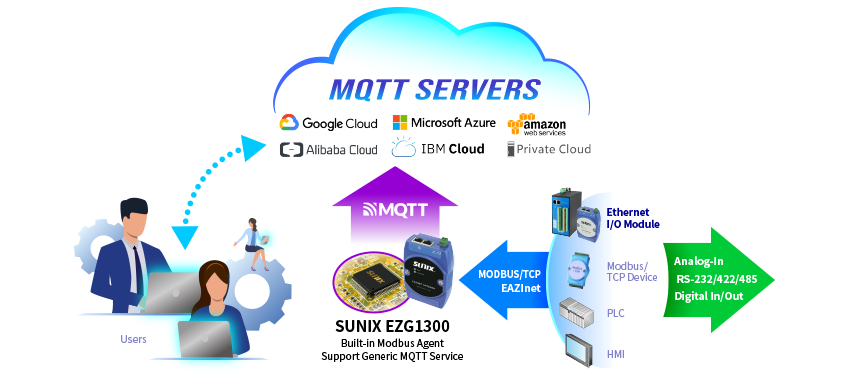

EZG1300 MQTT Gateway



The EZG1300 is a gateway that supports generic MQTT service. Customers can use SUNIX Ethernet I/O modules (EZR & EZI series) to connect various types of devices, and to convert Modbus, digital I/O, and analog I/O data into common public cloud through the MQTT Protocol.



Built-in Modbus Protocol Agent

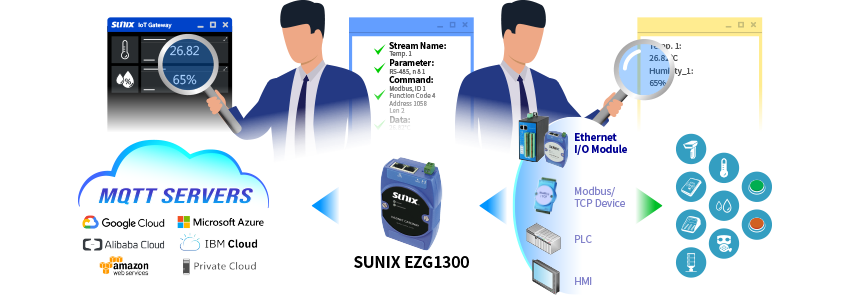

EZG1300 with built-in Modbus Protocol Agent

EZG1300 has a built-in Modbus Protocol Agent to acquire Modbus data and translate it into MQTT cloud Protocol. Users can also set the device parameters of Modbus and Analog-in by themselves, which means that users can integrate their existing devices or choose various sensors of different brands in cost effective way.

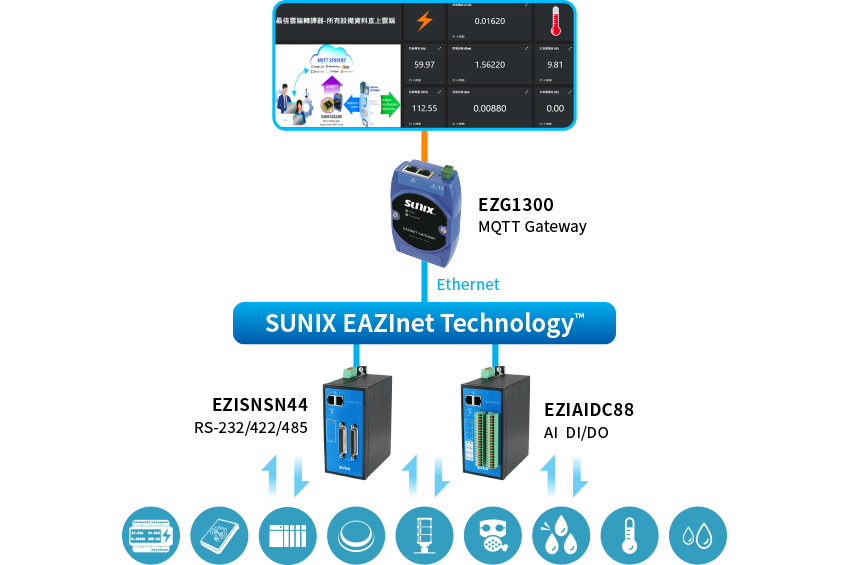

Information Diagnostic Function

EZG1300 Diagnostic Feature

No need on using extra tool. Users can rapidly identify and rule out problem during installation as soon as logging into Web-based manager to ensure normal communication among underlayer devices and correct information presenting on cloud digital dashboard.



Complete Data Acquisition Solution

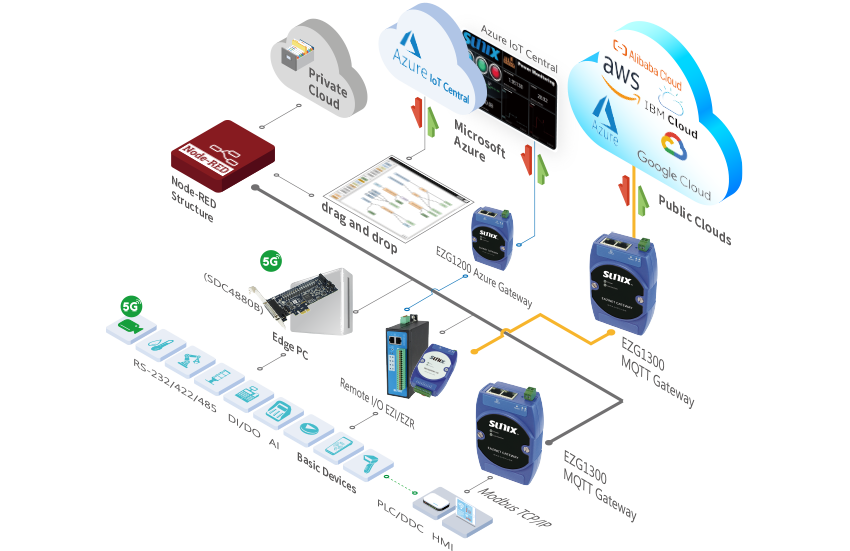

SUNIX Full Cloud Application

SUNIX provides the best solution for optimizing data acquisition and uploading them across public cloud/private cloud/hybrid cloud/intelligent edge, which also integrates with platform tool-kit and Azure SaaS services for developer and end user to rapidly build up intelligent application.



Application - Environmental Monitoring

Building up digital dashboard with Node-RED platform rapidly

EZG1300 Solution

Specifications

LAN

Ethernet 2-port 10/100 Mbps RJ45 ports
Protection 1.5 KV magnetic isolation
Protocols SUNIX EAZInet

Physical Characteristics

Dimensions 72.1 x 108 x 33.9 mm (2.83 x 4.25 x 1.33 in)
Weight 118 g
Mounting DIN rail or wall

Power Requirements

Input Voltage 12 to 24 VDC
Power Consumption 1.6W@ 24 VDC
Connector 2 PIN Terminal Block

Environmental Limits

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH(non-condensing)
Storage Temperature -10 to 70°C (-14 to 158°F)

Standards and Certifications

EMC EN 55032, EN 55035
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2
ESD Contact: 4 kV; Air: 8 kV

Support

Download Manual

Manual EZG1300 Gateway Manual
Version Ver. 1.0
Update 2022-02-08 13:55:01
Size 2.5MB

Download Datasheet

Datasheet EZG1300 Datasheet EN

Download Driver

Firmware EZG1300_MT0_V1_2_4
Version V1.0.2.4
Update 2022-08-09 09:39:36
Size 5.1MB
OS NULL
